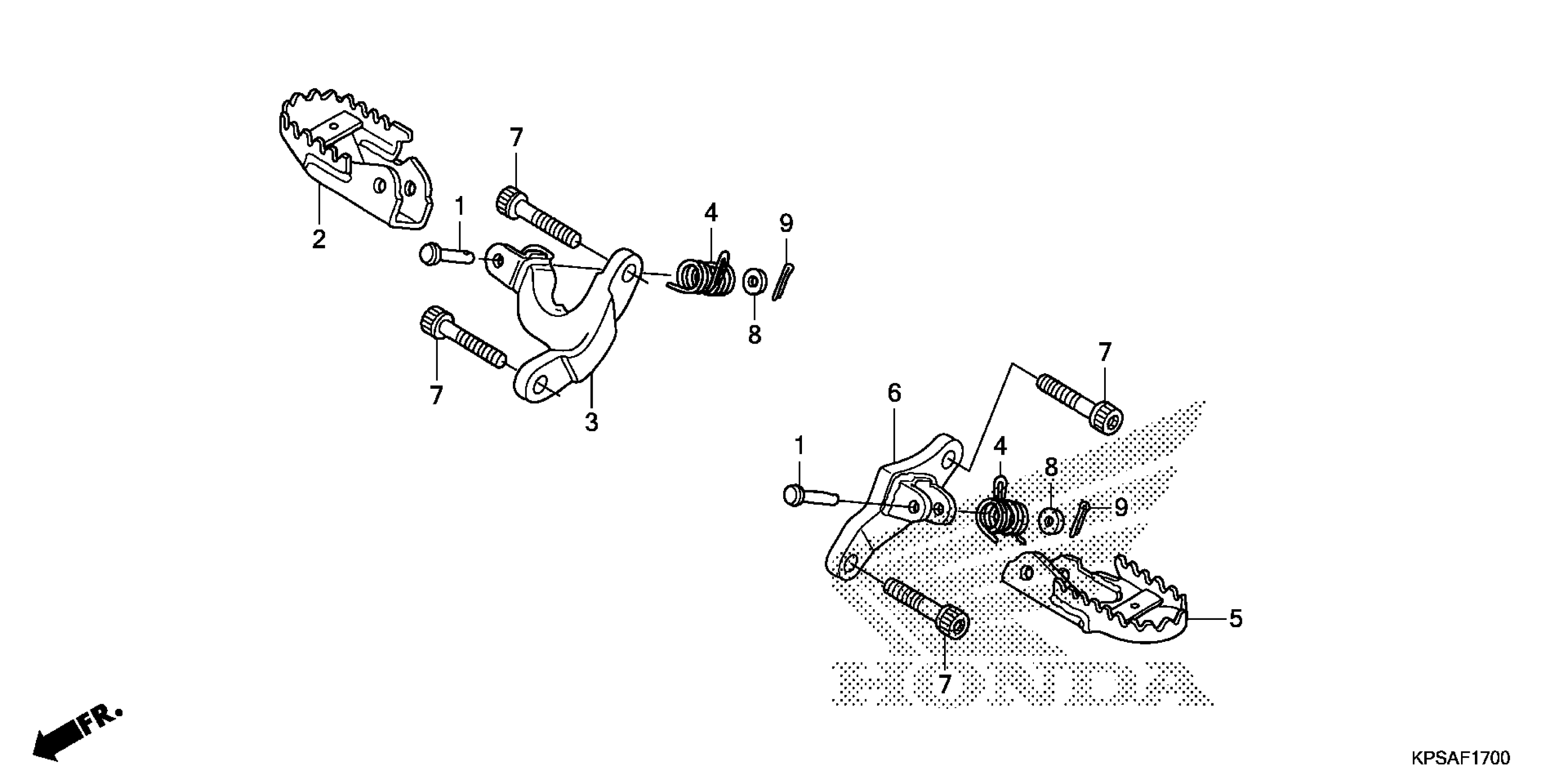

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 STEP Diagram

PIN, STEP BAR JOINT

50603-KPS-900

$2.49

STEP, R. (COO) This part replaces 50612-KPS-900.

50612-KPS-306

$22.35

ARM, R. STEP

50615-KPS-900

$25.01

SPRING, FOOTPEG RETURN SPRING, STEP RETURN

50617-MA0-770

$5.80

SPRING, FOOTPEG RETURN This part replaces 50617-466-000.

50617-MA0-770

$5.80

STEP, L. (COO)

50642-KPS-306

$23.70

STEP, L. (COO) This part replaces 50642-KPS-900.

50642-KPS-306

$23.70

ARM, L. STEP

50645-KPS-900

$26.52

BOLT, SOCKET (10X45)

90181-MCT-000

$2.43

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
