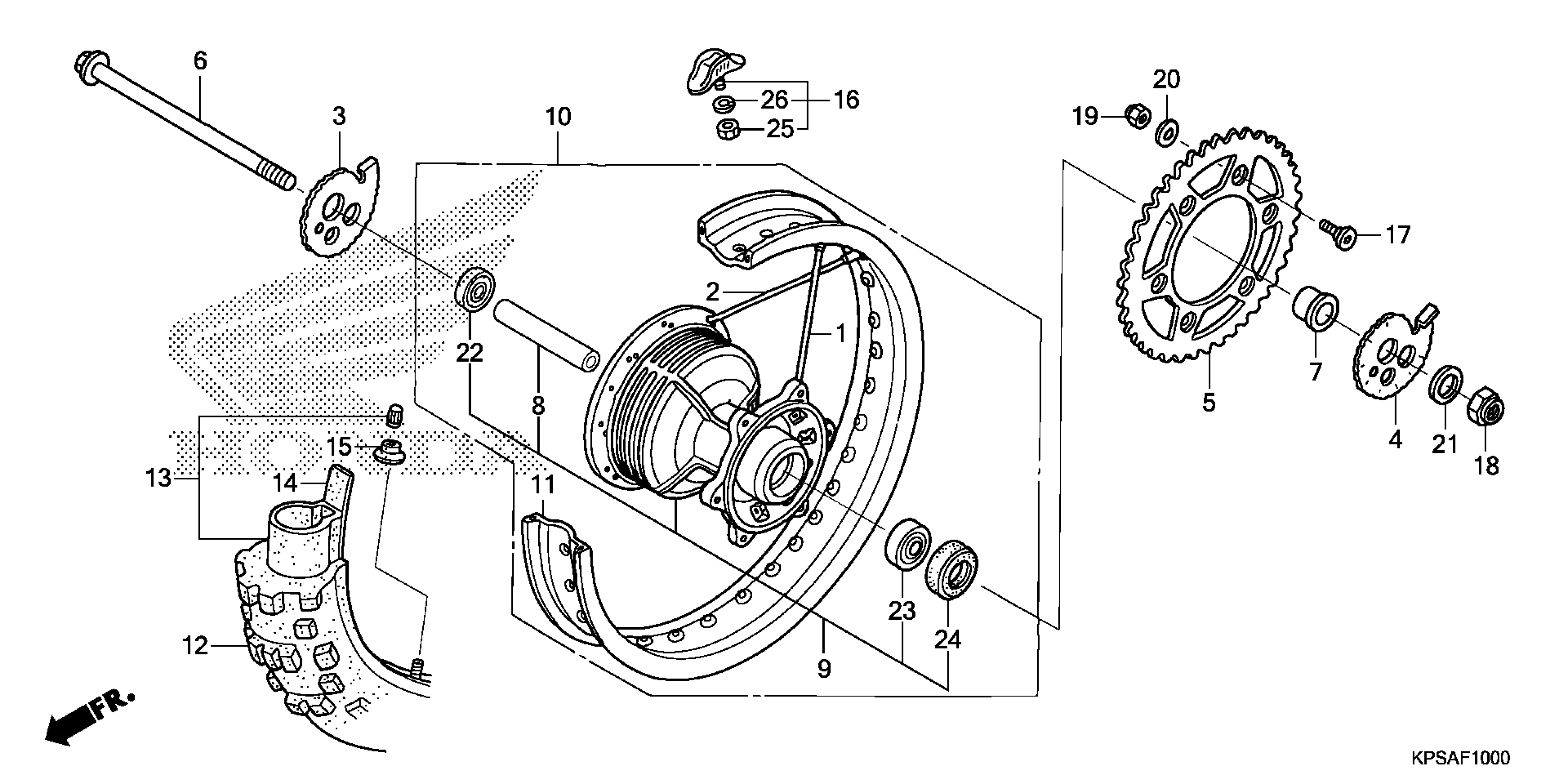

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 REAR WHEEL Diagram

SPOKE SET A, RR. (L. SIDE)

06420-KPS-730

$3.25

SPOKE SET B, RR. (R. SIDE)

06422-KPS-730

$3.30

ADJUSTER, R. CHAIN

40544-KPS-730

$10.18

ADJUSTER, L. CHAIN

40545-KPS-730

$10.18

SPROCKET, FINAL DRIVEN (50T)

41201-KPS-900

$85.85

AXLE, RR. WHEEL

42301-KPS-900

$25.38

COLLAR, RR. WHEEL

42312-KPS-900

$8.18

COLLAR, RR. AXLE DISTANCE

42620-KPS-900

$16.77

HUB SUB-ASSY., RR. This part replaces 42635-KPS-730.

42635-KPS-900

$299.38

HUB SUB-ASSY., RR.

42635-KPS-900

$299.38

WHEEL SUB-ASSY., RR. (COO)

42650-KPS-305

Unavailable

WHEEL SUB-ASSY., RR. (COO) This part replaces 42650-KPS-731.

42650-KPS-305

Unavailable

RIM, RR. WHEEL

42701-KPS-902

$251.49

TIRE, RR. (100/100-18 59R NHS) (PIRELLI)

42711-KPS-902

$428.29

TUBE, TIRE (MD-18) (PIRELLI)

42712-KHA-941

$48.92

FLAP, TIRE (17) This part replaces 42713-KW8-901.

42713-371-000

$30.54

FLAP, TIRE (17) This part replaces 42713-MAN-622.

42713-371-000

$30.54

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B)

42715-KA2-680

$32.27

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, U (16MM)

90305-GW2-711

$16.36

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

WASHER (8MM)

90465-MC4-000

$2.51

WASHER, RR. AXLE

90559-KPS-900

$1.49

BEARING, RADIAL BALL (6203U) (NSK) This part replaces 91013-KPS-731.

91013-KPS-732

$10.43

BEARING, RADIAL BALL (6203U) (NSK)

91013-KPS-732

$10.43

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

BEARING, RADIAL BALL (6303U) (NACHI) (NA USE ALT:91051-KPS-732)

91051-KPS-731

Unavailable

BEARING, RADIAL BALL (6303U) (NSK)

91051-KPS-732

$11.26

BEARING, RADIAL BALL (6303U) BEARING, RADIAL BALL (6303)

96140-63030-10

$14.48

OIL SEAL (25X47X6.5)

91253-033-003

$5.94

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
