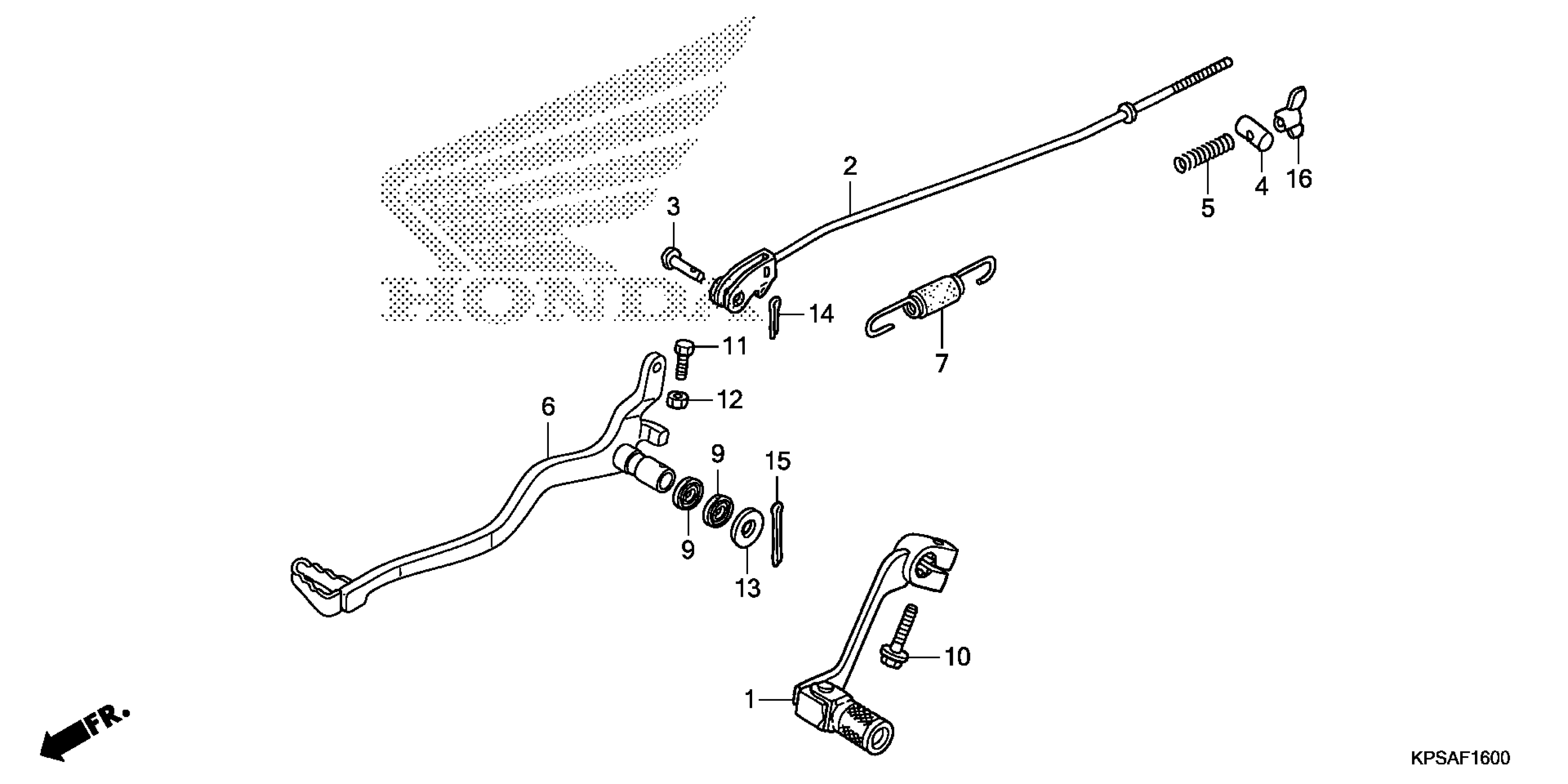

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 PEDAL Diagram

PEDAL ASSY., CHANGE (COO)

24700-KPT-305

$33.52

PEDAL ASSY., CHANGE (COO) This part replaces 24700-KPS-900.

24700-KPT-305

$33.52

ROD, RR. BRAKE

43451-KPS-900

$13.12

PIN C, JOINT

43453-KPS-900

$1.49

JOINT B, BRAKE ARM

43454-KPS-900

$1.49

SPRING A, BRAKE ROD This part replaces 43472-KGA-K00.

43472-KB9-750

$3.10

PEDAL, BRAKE (COO)

46500-KPT-305

$67.70

PEDAL, BRAKE (COO) This part replaces 46500-KPS-730.

46500-KPT-305

$67.70

SPRING SET, BRAKE PEDAL

46513-KPS-900

$4.62

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

BOLT, HEX. (6X20) BOLT, FLANGE (6X20)

92101-06020-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, BUSH

90501-KRE-900

$1.95

PIN, COTTER (2.0X12)

94201-20120

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83
