Description

Price

1

PUMP ASSY., OIL

15100-KHA-940

$64.86

2

GEAR, OIL PUMP DRIVE (34T)

15131-KBB-900

$50.59

3

ROTOR, OIL PUMP (INNER)

15331-KPS-900

$2.36

4

ROTOR, OIL PUMP (OUTER)

15332-KPS-900

$3.04

5

ROTOR, OIL FILTER

15430-KPS-900

$8.22

6

CAP, OIL FILTER ROTOR

15436-KRM-840

$6.39

7

THROUGH, OIL

15441-KCS-650

$6.16

8

SPRING, OIL THROUGH

15446-107-000

$3.75

9

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.22

10

GEAR, PRIMARY DRIVE (22T)

23121-KPS-900

$47.25

11

BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)

92101-05020-0A

$1.06

12

SCREW, OVAL (5X12)

93700-05012-0A

$0.71

13

SCREW, FLAT (4X12)

93600-04012-0A

$0.83

14

SCREW, FLAT (6X30)

90213-KPS-900

$1.52

15

NUT, LOCK (16MM) This part replaces 90231-KPS-900.

90231-KK3-830

$4.78

16

WASHER (16MM)

90434-KPS-900

$1.81

17

KEY, WOODRUFF (25X18)

90471-KGA-900

$3.37

18

PIN, LOCK (8MM)

90751-KPS-900

$0.35

19

O-RING (9.4X2.4) This part replaces 91304-KPS-900.

91304-KK3-830

$2.20

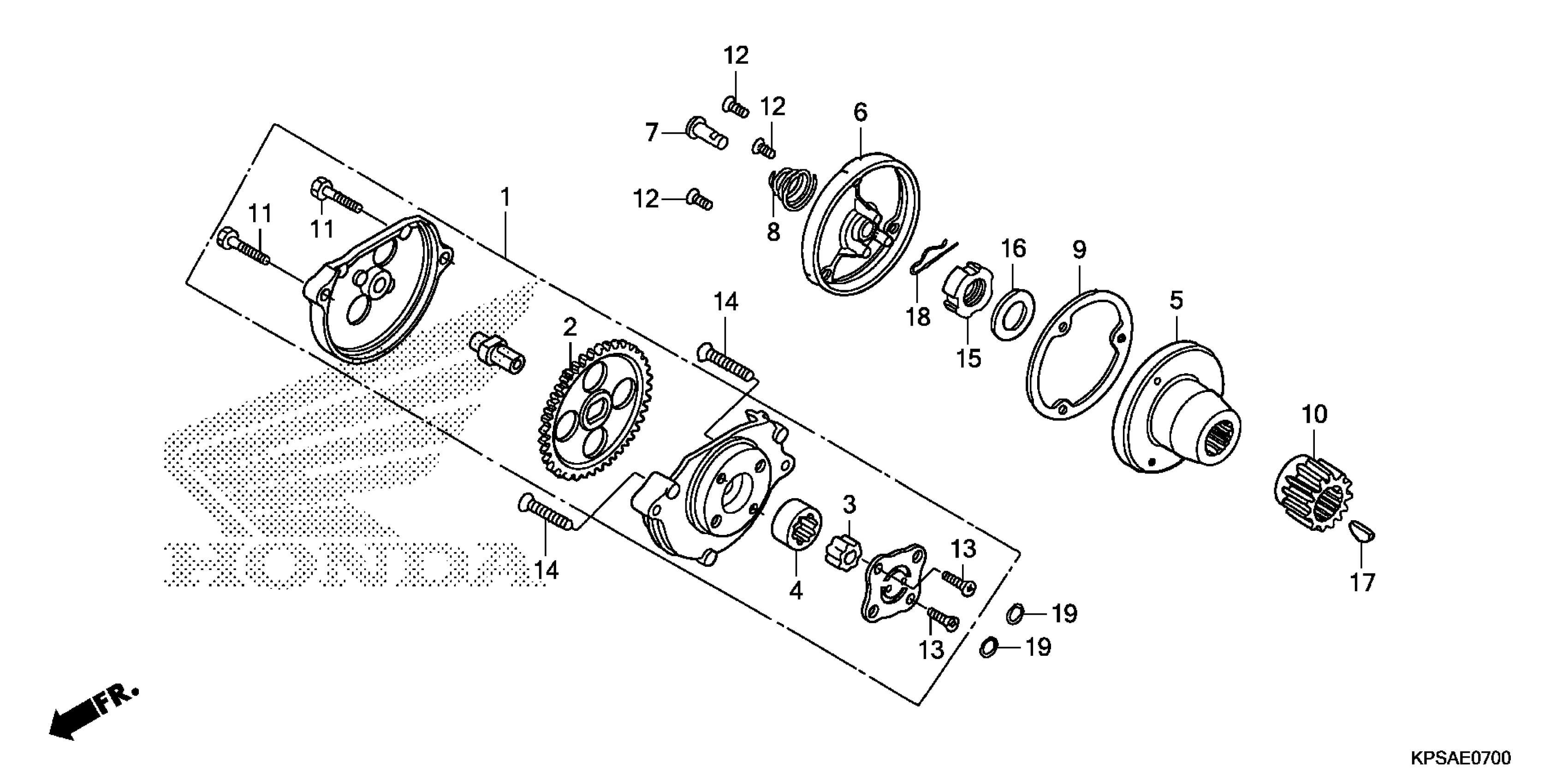

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 OIL PUMP Diagram
