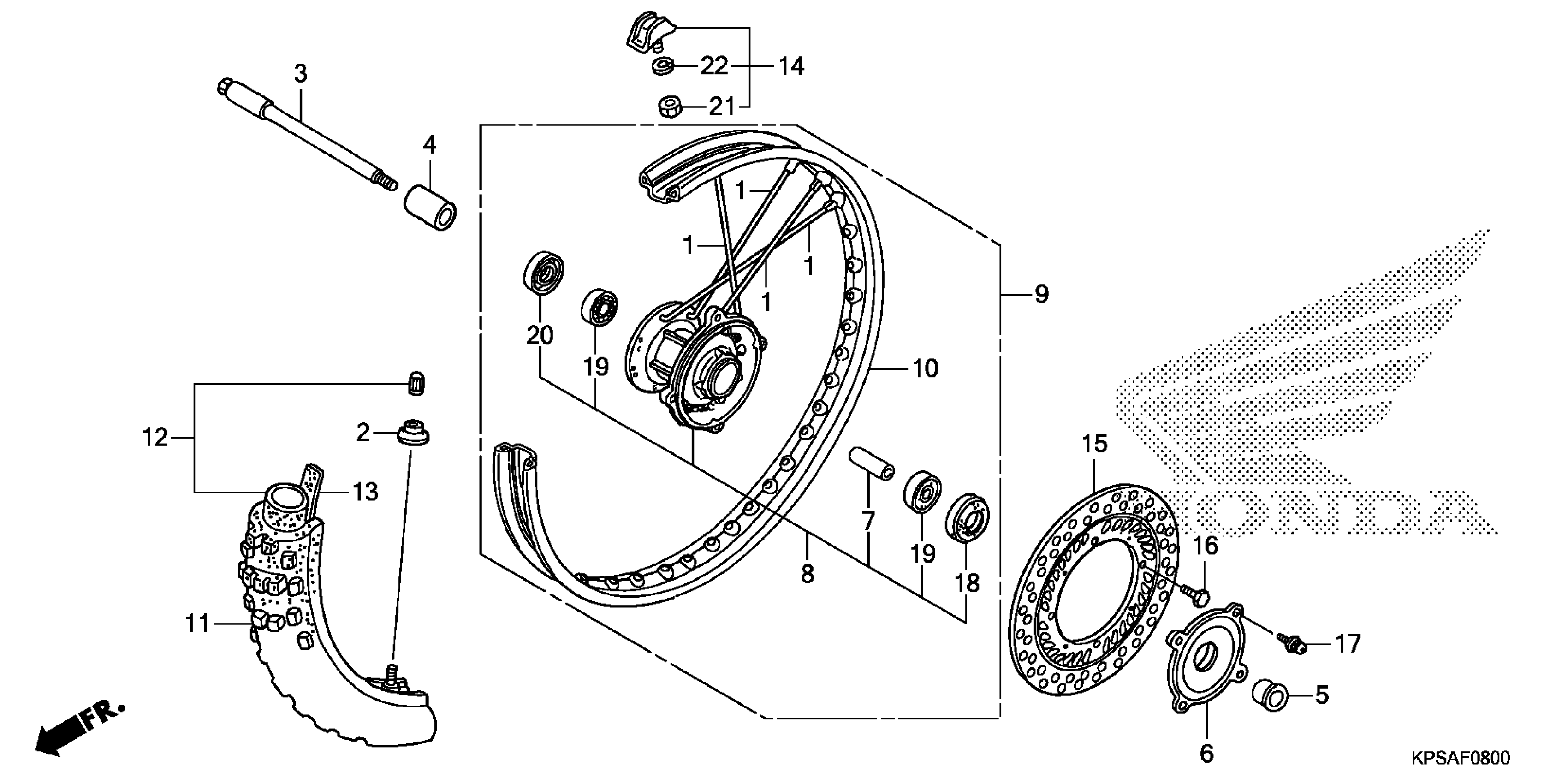

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET, FR.

06441-KPS-730

$7.88

2

CAP, VALVE

42714-KA3-710

$9.60

3

AXLE, FR. WHEEL

44301-KPS-900

$26.32

4

COLLAR, FR. WHEEL

44311-KPS-900

$4.95

5

COLLAR, FR. WHEEL

44312-KPS-900

$3.52

6

COVER, FR. HUB

44610-KL3-770

$11.14

7

COLLAR, FR. AXLE DISTANCE

44620-KPS-900

$4.07

8

HUB SUB-ASSY., FR. This part replaces 44635-KPS-730.

44635-KPS-900

$156.50

8

HUB SUB-ASSY., FR.

44635-KPS-900

$156.50

9

WHEEL SUB-ASSY., FR. (COO)

44650-KPS-305

$669.19

9

WHEEL SUB-ASSY., FR. (COO) This part replaces 44650-KPS-731.

44650-KPS-305

$669.19

10

RIM, FR. WHEEL

44701-KPS-902

$243.88

11

TIRE, FR. (80/100-21 51R NHS) (PIRELLI)

44711-KPS-902

$305.30

12

TUBE, TIRE (MA-21) (PIRELLI)

44712-MAN-622

$43.81

13

FLAP, TIRE (1.40-21) (PIRELLI)

44713-KW8-901

$3.10

14

STOPPER, BEAD (1.60)

44715-MA0-770

$33.77

15

DISK, FR. BRAKE

45351-KPS-900

$120.75

16

BOLT, DISK (6X17)

90105-KAE-870

$2.80

17

SCREW-WASHER (4X8)

90204-KPS-900

$0.71

18

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-KGA-K00.

90755-229-003

$4.83

18

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$4.83

18

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$4.83

19

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-731.

96140-62020-10

$9.96

19

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-732.

96140-62020-10

$9.96

19

BEARING, RADIAL BALL (6202U)

96140-62020-10

$9.96

20

DUST SEAL (22X50X5) (NOK)

91254-KA3-831

$8.47

21

NUT, HEX. (8MM)

94001-08000-0S

$1.31

22

WASHER, SPRING (8MM)

94111-08000

Unavailable
