Description

Price

1

CLAMP A, BRAKE HOSE

45461-KPS-900

$7.32

2

SPRING, FR. FORK

51401-KPS-901

$21.84

3

PIPE, FR. FORK

51410-KPS-901

$72.80

4

SPRING, FR. FORK REBOUND

51411-MG1-003

$6.32

5

RING, BACK-UP

51412-461-003

$6.72

6

BUSH, GUIDE

51414-MN4-003

$12.25

7

BUSH, SLIDER

51415-KS5-003

$7.79

8

CASE SET, R. (LOWER)

51430-KPS-B71

$106.79

9

PIECE, OIL LOCK

51432-KPS-B71

$3.94

10

RING, PISTON

51437-ME4-003

$8.85

11

PIPE, SEAT

51440-KPS-901

$25.47

12

RING, OIL SEAL STOPPER

51447-KR6-003

$3.61

13

BOLT, FR. FORK

51450-KAS-901

$21.06

14

FORK SUB-ASSY., R. FR. NH109MS (SHOWA) (SHOT SILVER METALLIC SPECIAL)

51480-KPS-B73ZA

$538.53

15

SEAL SET, FR. FORK

51490-KR6-305

$21.16

16

CASE SET, L. (LOWER)

51530-KPS-B71

$108.25

17

FORK SUB-ASSY., L. FR. (SHOWA)

51580-KPS-B72

$472.01

18

BOOT, FR. FORK NH1 (BLACK)

51611-KR6-013ZH

$43.43

18

BOOT, FR. FORK NH1 (BLACK) This part replaces 51611-KR6-013ZK.

51611-KR6-013ZH

$43.43

19

BAND, FR. FORK BOOT

51612-430-010

$7.73

20

HOLDER, AXLE NH109MS (SHOT SILVER METALLIC SPECIAL)

51634-MK5-003ZK

$26.13

21

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

22

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

24

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

25

DUST SEAL

91254-KR6-003

$14.92

26

O-RING (27.7X3.5)

91357-ME4-003

$3.19

27

BOLT, STUD (6X25) (R. SIDE ONLY)

92900-06025-0E

$0.96

28

SCREW, PAN (3X25)

93500-03025-0A

$0.76

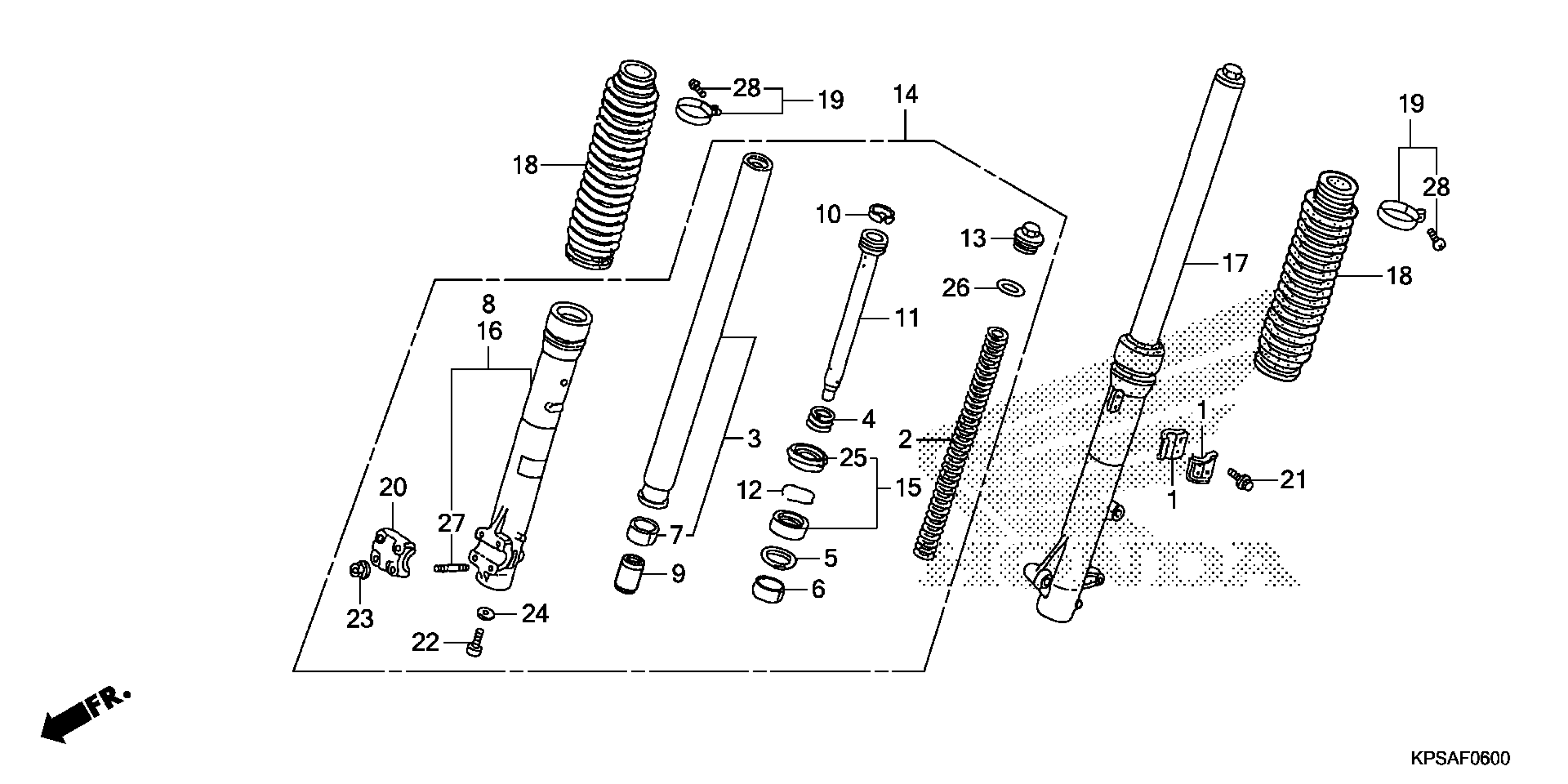

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 FRONT FORK Diagram
