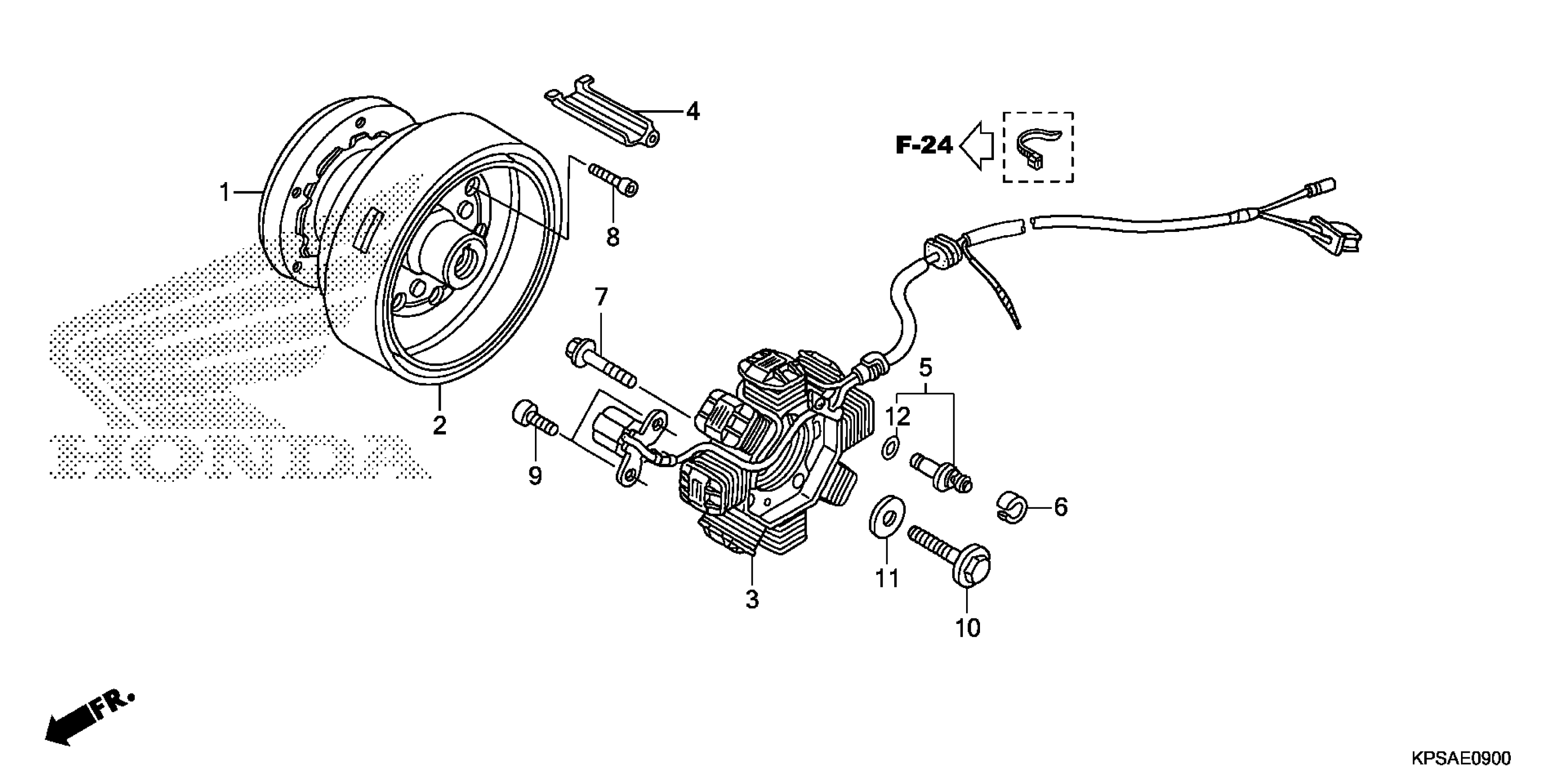

Honda CRF230FAC (19) MOTORCYCLE, BRA, VIN# 9C2ME09C-KR100001 ALTERNATOR Diagram

CLUTCH, STARTING ONE-WAY

28125-KW3-006

$133.09

FLYWHEEL

31110-KPS-901

$202.13

STATOR

31120-KPS-902

Unavailable

GUIDE, ALTERNATOR WIRE

32976-KN6-910

$5.26

CONTACT, NEUTRAL SWITCH

35750-GS3-003

$7.64

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.71

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.71

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

BOLT, SOCKET (6MM)

90085-KRM-850

$0.87

BOLT, SOCKET (5X14)

90089-HB3-000

$3.01

BOLT, FLANGE (10X65)

90101-KBH-003

$6.32

WASHER (10X24)

90403-KN6-930

$8.09

O-RING (7X1.7)

91312-107-000

$2.90
