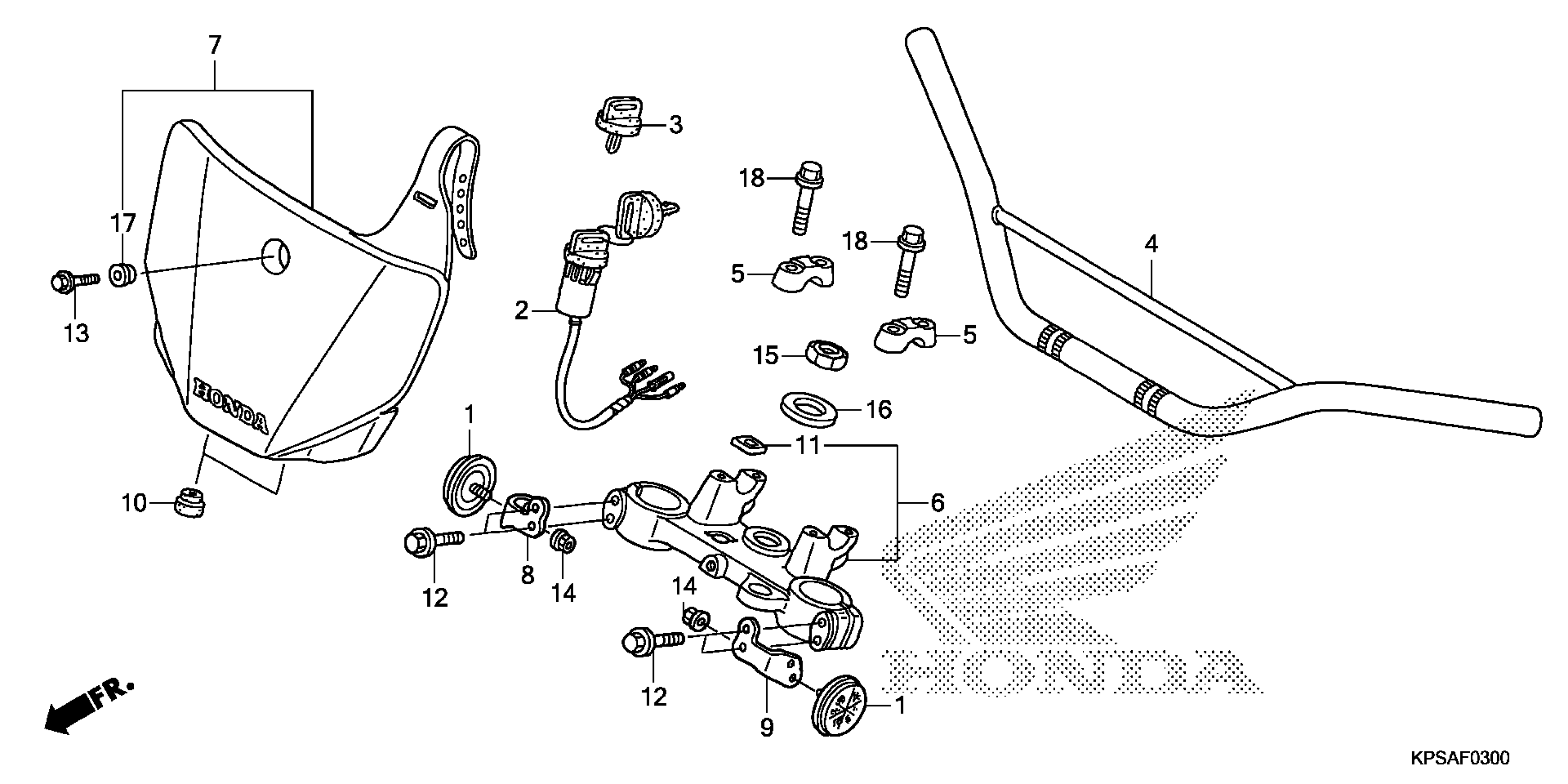

Honda CRF230FAC (16) CRF230F, BRA, VIN# 9C2ME091-GR100001 TO 9C2ME091-GR199999 HANDLEBAR@TOP BRIDGE Diagram

SWITCH ASSY., COMBINATION

35100-KPS-A11

$49.79

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KPS-A11

$6.63

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KPS-A11

$7.30

HANDLEBAR *NH105* (COO) (MAT BLACK)

53100-KPS-306ZA

$46.30

HOLDER (UPPER) *NH146M* (ACCURATE SILVER METALLIC)

53131-KBB-950ZA

$24.07

BRIDGE, FORK TOP

53300-KPS-760

$460.18

PLATE SET, FR. NUMBER *NH196* (WL) (ROSS WHITE)

61140-KPS-A20ZA

$39.40

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

BOLT, FLANGE (8X42)

90103-MBN-670

$1.54

BOLT, FLANGE (6X20)

90040-GHR-680

$1.49

BOLT, FLANGE (6X20) This part replaces 90104-KPS-900.

90040-GHR-680

$1.49

NUT, STEERING STEM

90304-KRM-860

$3.85

WASHER, STEERING STEM

90503-KRM-860

$2.23

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

BOLT, FLANGE (8X35)

96300-08035-00

$1.95
