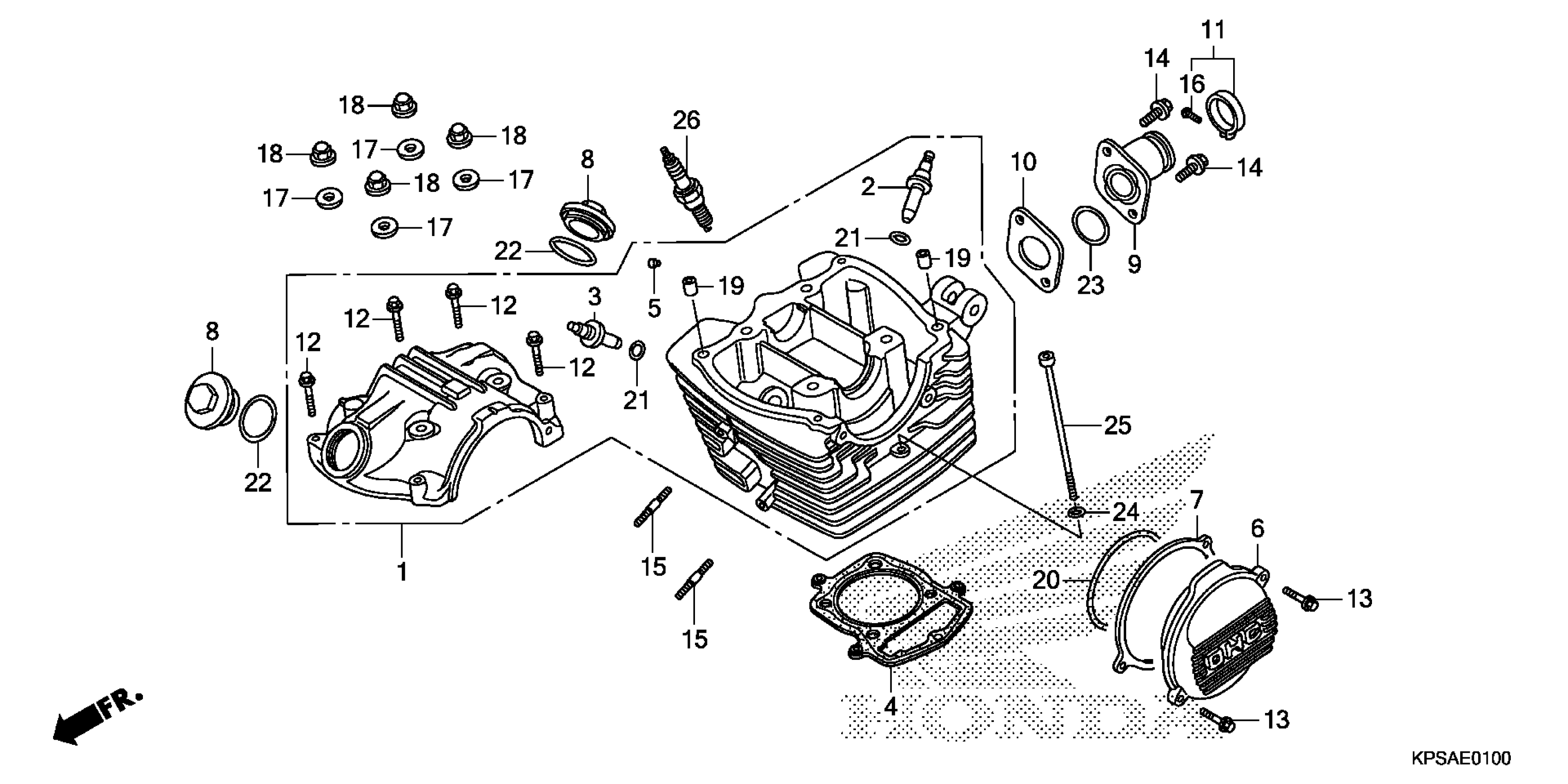

Honda CRF230FAC (16) CRF230F, BRA, VIN# 9C2ME091-GR100001 TO 9C2ME091-GR199999 CYLINDER HEAD COVER @CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12000-KPS-901

Unavailable

2

GUIDE, VALVE This part replaces 12204-KW1-305.

12204-KW1-405

$10.49

2

GUIDE, VALVE

12204-KW1-405

$10.49

3

GUIDE, VALVE

12204-KW1-405

$10.49

3

GUIDE, VALVE This part replaces 12206-KW1-315.

12204-KW1-405

$10.49

4

GASKET, CYLINDER HEAD

12251-KT0-711

$21.20

5

RUBBER, OIL SEAL

12271-383-000

$2.80

6

COVER, L. CYLINDER HEAD

12331-KPS-900

$6.94

7

GASKET This part replaces 12339-KT0-711.

12339-KT0-712

$6.56

8

CAP, TAPPET ADJUSTING HOLE

12361-KPS-900

$3.29

9

INSULATOR, CARBURETOR

16210-KPS-900

$28.94

10

GASKET This part replaces 16214-KPS-901.

16214-KPS-902

$2.98

11

BAND, INSULATOR

16223-KPS-900

$14.70

12

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

13

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

14

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

15

BOLT, STUD (7X35)

90041-KW1-900

$2.12

16

SCREW, PAN (5X25)

93500-05025-0G

$0.68

17

WASHER, SEALING (8MM)

90442-KPS-900

$0.75

18

NUT, CAP (8MM) This part replaces 90443-KPS-900.

90443-107-000

$2.62

18

NUT, CAP (8MM)

90443-107-000

$2.62

19

PIN, DOWEL (8X14)

90702-KRM-840

$0.61

19

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

20

O-RING (75X2.5)

91301-107-000

$4.54

21

O-RING (10X1.6)

91301-KPF-960

$0.81

21

O-RING (10X1.6) This part replaces 91301-KW1-900.

91301-KPF-960

$0.81

22

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.80

22

O-RING (35X3) (ARAI) This part replaces 91303-KPS-730.

91303-KK3-830

$2.80

23

O-RING (33.5X3.0)

91304-KRM-840

$2.80

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

24

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

25

BOLT, SOCKET (6X125)

96700-06125-10

$2.32

26

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.00

26

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.25

26

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.00

26

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.25
