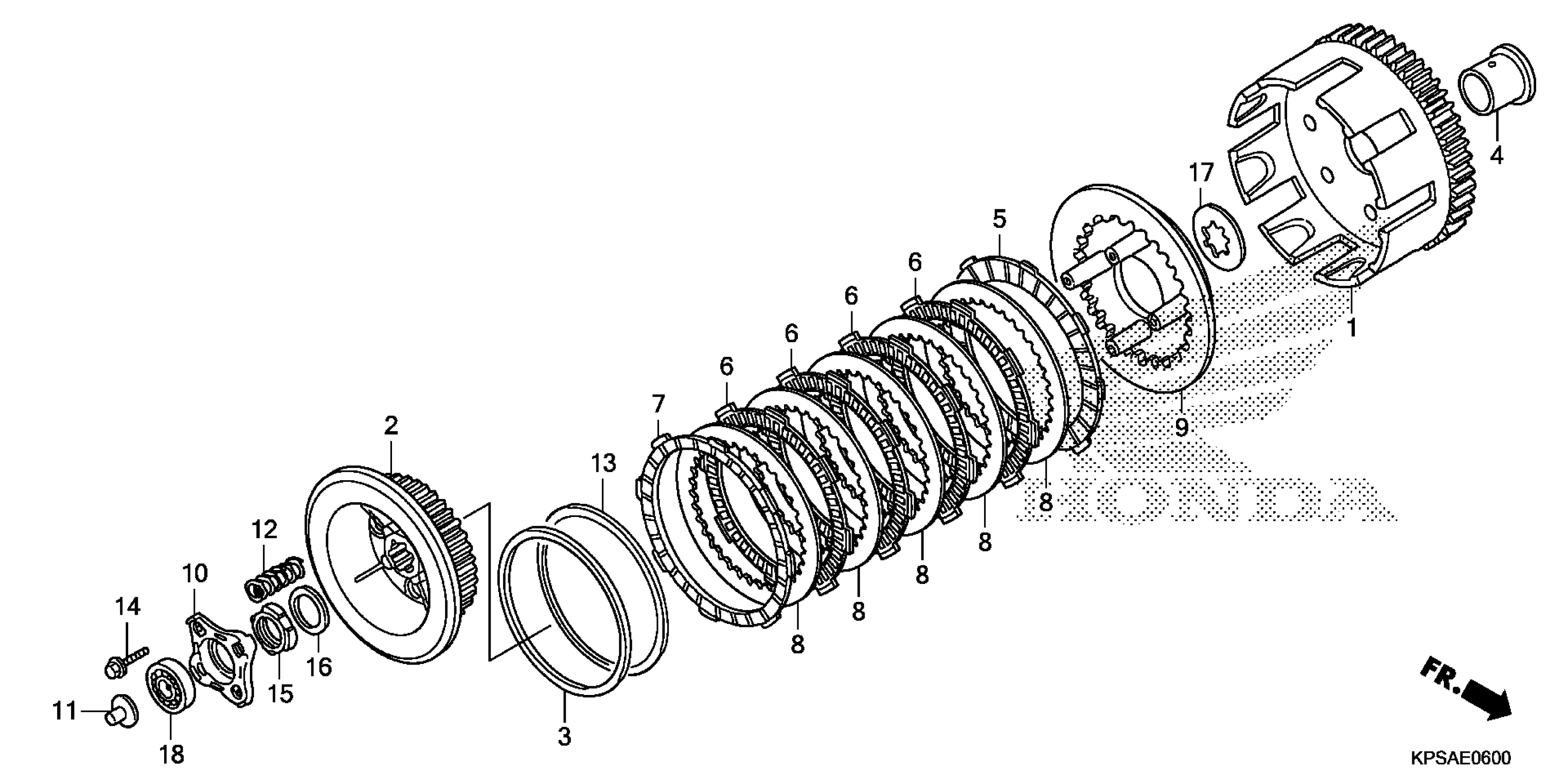

Honda CRF230FAC (16) CRF230F, BRA, VIN# 9C2ME091-GR100001 TO 9C2ME091-GR199999 CLUTCH Diagram

CLUTCH OUTER

22100-KPS-900

$118.53

CENTER, CLUTCH

22121-KPS-900

$21.30

SEAT, JUDDER SPRING

22125-KT7-750

$10.40

SEAT, JUDDER SPRING This part replaces 22125-KW7-900.

22125-KT7-750

$10.40

GUIDE, CLUTCH (OUTER)

22131-KHA-940

$13.25

DISK, CLUTCH FRICTION

22201-KBW-900

$14.29

DISK, CLUTCH FRICTION (4X8X45)

22201-KPM-850

$11.85

DISK, CLUTCH FRICTION

22201-KAZ-000

$24.33

DISK, CLUTCH FRICTION This part replaces 22201-KY1-000.

22201-KAZ-000

$24.33

DISK, CLUTCH FRICTION This part replaces 22201-MJ8-000.

22201-KAZ-000

$24.33

PLATE, CLUTCH

22321-KPS-900

$4.66

PLATE, CLUTCH PRESSURE

22350-KPS-900

$15.70

PLATE, CLUTCH LIFTER This part replaces 22361-KPS-900.

22361-437-000

$13.61

PLATE, CLUTCH LIFTER

22361-437-000

$13.61

ROD, CLUTCH LIFTER This part replaces 22366-KHA-940.

22366-KRM-840

$2.80

SPRING, CLUTCH

22401-KCJ-710

$3.83

SPRING, JUDDER

22402-KPM-850

$17.88

BOLT, SPECIAL FLANGE (6X22) BOLT, FLANGE (6X18)

90050-357-000

Unavailable

NUT, LOCK (16MM)

90231-KB5-720

$4.47

WASHER (16MM)

90434-KPS-900

$1.84

WASHER B, SPLINE (20MM)

90461-KPS-900

$8.91

BEARING, RADIAL BALL (16003)

91008-KPS-900

$7.62
