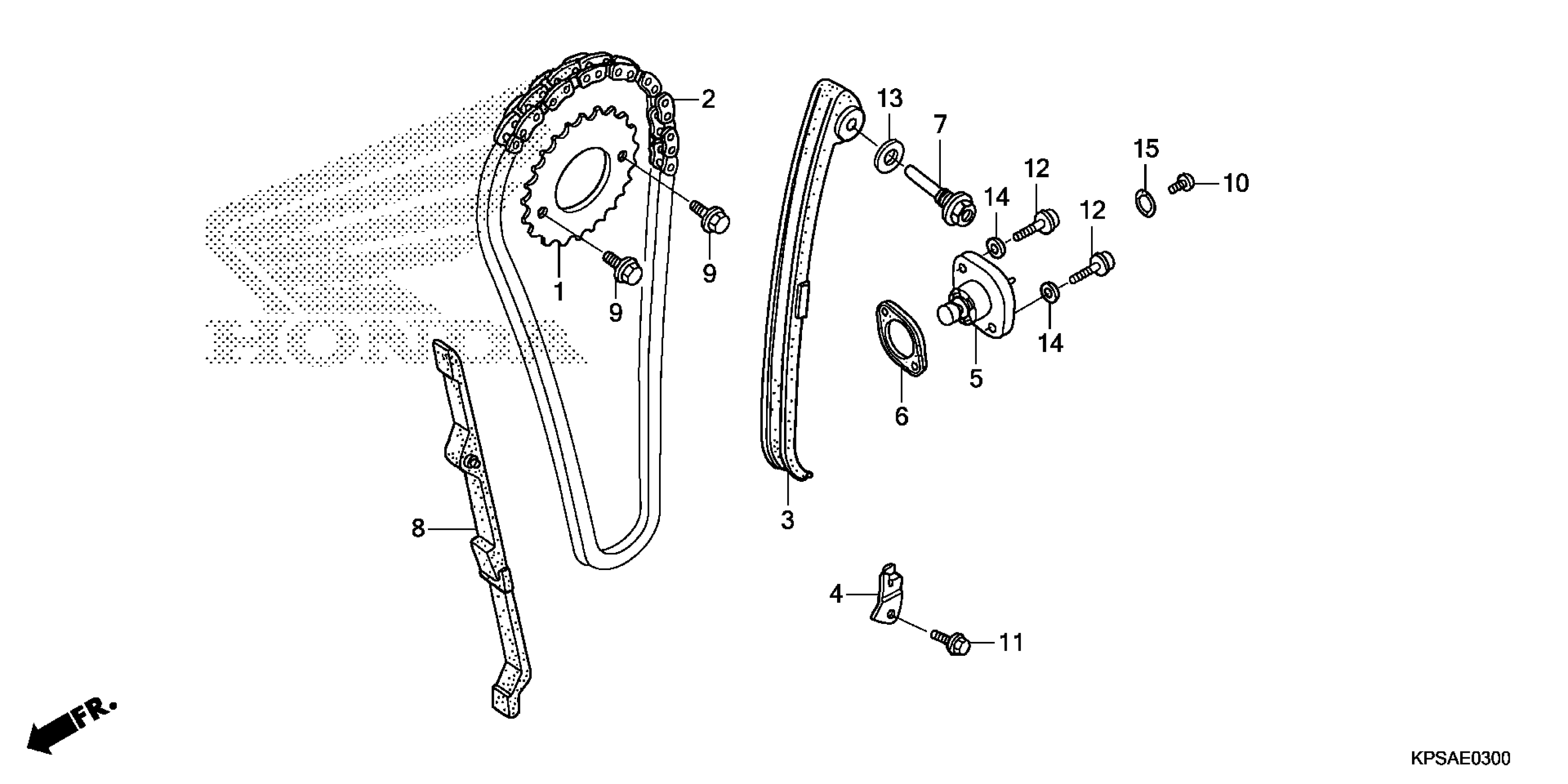

Honda CRF230FAC (16) CRF230F, BRA, VIN# 9C2ME091-GR100001 TO 9C2ME091-GR199999 CAM CHAIN@TENSIONER Diagram

#

Description

Price

1

SPROCKET, CAM (34T)

14321-KEH-900

$37.59

2

CHAIN, CAM (104L) (BORG WARNER)

14401-KFB-751

$59.36

3

TENSIONER, CAM CHAIN

14500-KBB-900

$85.85

4

PLATE, CAM CHAIN SETTING

14513-KPS-900

$1.90

5

LIFTER ASSY., TENSIONER

14520-KCJ-661

$98.67

6

GASKET, TENSIONER LIFTER

14523-KBB-901

$10.40

7

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$6.30

8

GUIDE, CAM CHAIN

14550-KFB-000

$41.46

9

BOLT, FLANGE (6X10)

90002-KW1-900

$2.51

10

SCREW, PAN (6X6)

90005-KY7-000

$3.24

11

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

12

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

13

WASHER (8MM)

90475-KPF-960

$1.49

14

WASHER, SEALING (6MM)

90488-425-000

$2.28

15

O-RING (1.5X9.5)

91306-KRM-840

$1.49
