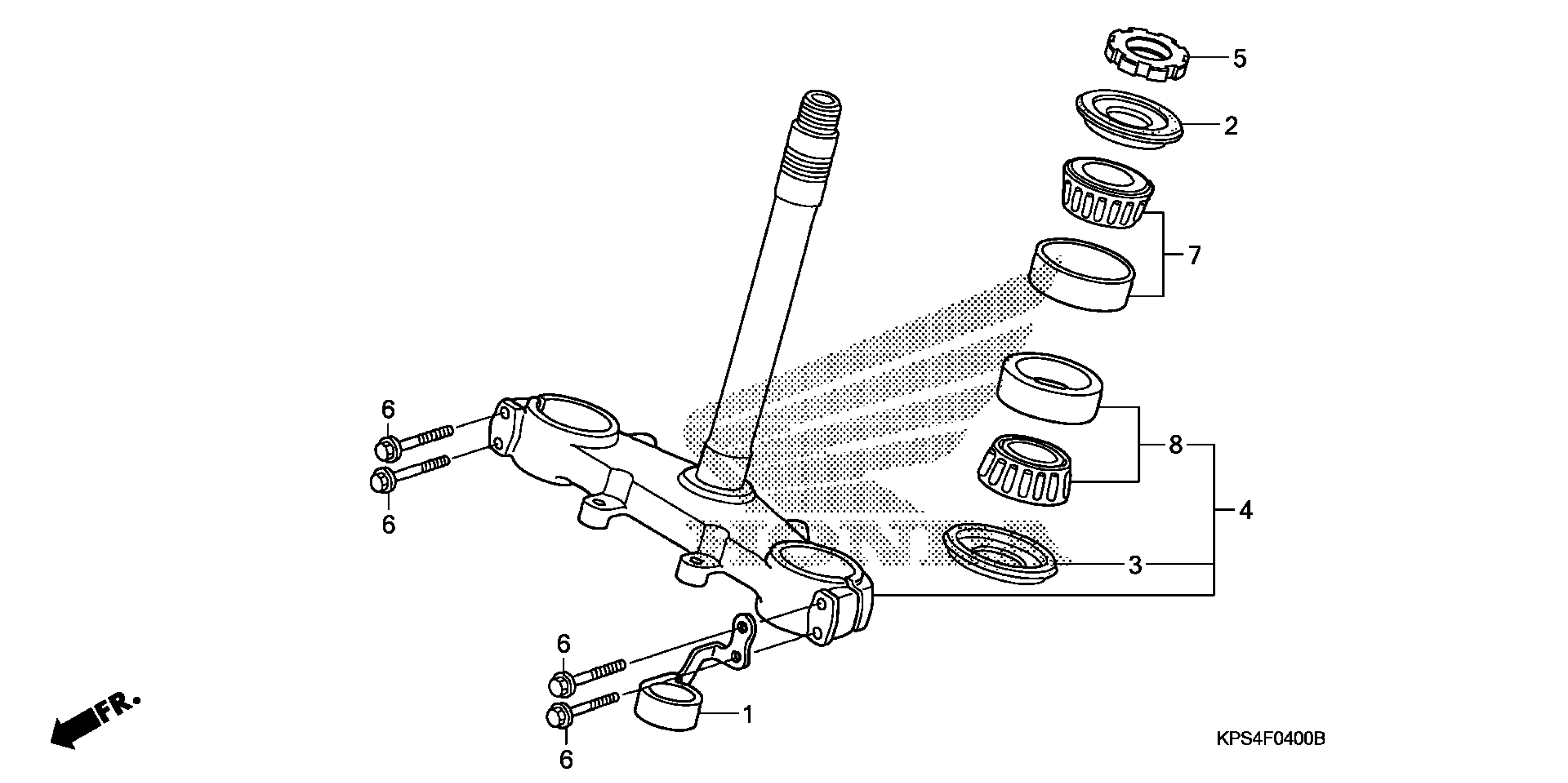

Honda CRF230FA (09) MOTORCYCLE, BRA, VIN# 9C2ME090-9R000001 STEERING STEM Diagram

#

Description

Price

1

GUIDE, BRAKE HOSE (LOWER)

45460-KPS-900

$6.26

2

DUST SEAL, STEERING HEAD (ARAI)

53214-KA3-732

$5.90

3

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.32

4

STEM SUB-ASSY., STEERING

53219-KPS-900

$163.79

5

THREAD, STEERING HEAD TOP

53229-KPS-900

$9.72

6

BOLT, FLANGE (8X40)

90107-KF0-000

$4.28

7

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$28.46

7

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$28.46

8

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$28.46

8

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$28.46
