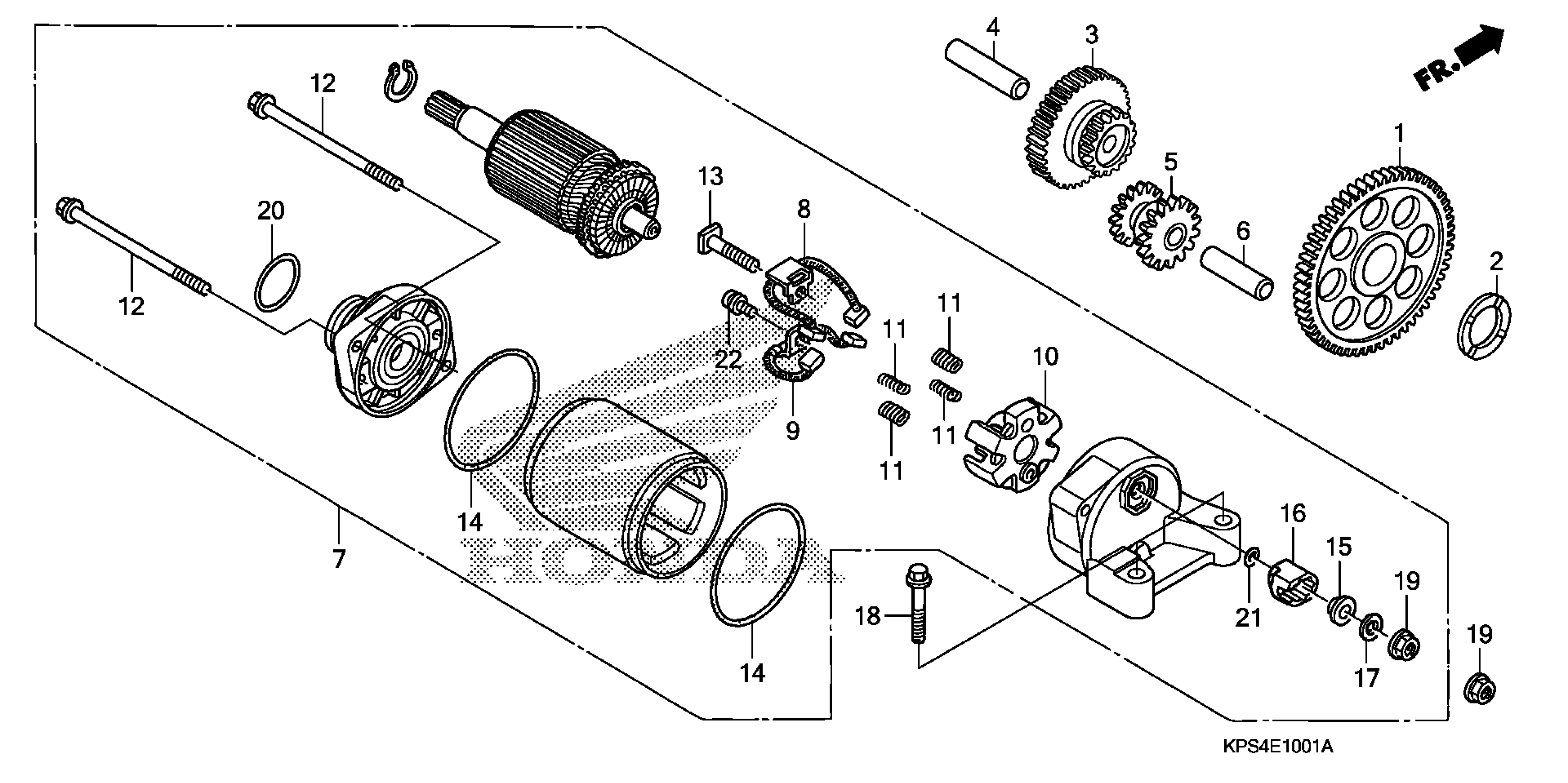

Description

Price

1

GEAR, STARTER DRIVEN (56T)

28110-KBB-900

$84.28

2

COLLAR, STARTING DRIVEN GEAR

28114-KN6-930

$22.81

3

GEAR, REDUCTION (16T/61T)

28130-KFB-000

$59.12

4

SHAFT, REDUCTION GEAR

28132-KN6-930

$9.94

4

SHAFT, REDUCTION GEAR This part replaces 28132-KPS-900.

28132-KN6-930

$9.94

5

GEAR, IDLE (16T/16T)

28140-KPS-900

$63.83

6

SHAFT, IDLE GEAR

28142-KW1-900

$71.12

7

STARTER MOTOR ASSY. (MITSUBA)

31200-KPS-A11

$340.83

8

BRUSH SET A, CARBON

31201-MEW-921

$7.25

9

BRUSH SET B, CARBON

31202-MEW-921

$11.74

10

HOLDER, BRUSH

31203-MEW-921

$6.96

11

SPRING, CARBON BRUSH

31204-MEW-921

$11.33

12

BOLT, SETTING

31205-HP5-601

$2.73

13

BOLT, TERMINAL

31206-MEW-921

$2.67

14

RING

31207-HP5-601

$1.96

15

INSULATOR

31208-MEW-921

$6.97

16

STOPPER, TERMINAL

31209-MEW-921

$10.35

17

WASHER

31210-MEW-921

$1.65

18

BOLT, FLANGE (6X32) This part replaces 90036-GHR-730.

95801-06032-00

$0.93

19

NUT-WASHER (6MM)

90071-MB0-000

$1.88

20

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

20

O-RING (24.4X3.1)
