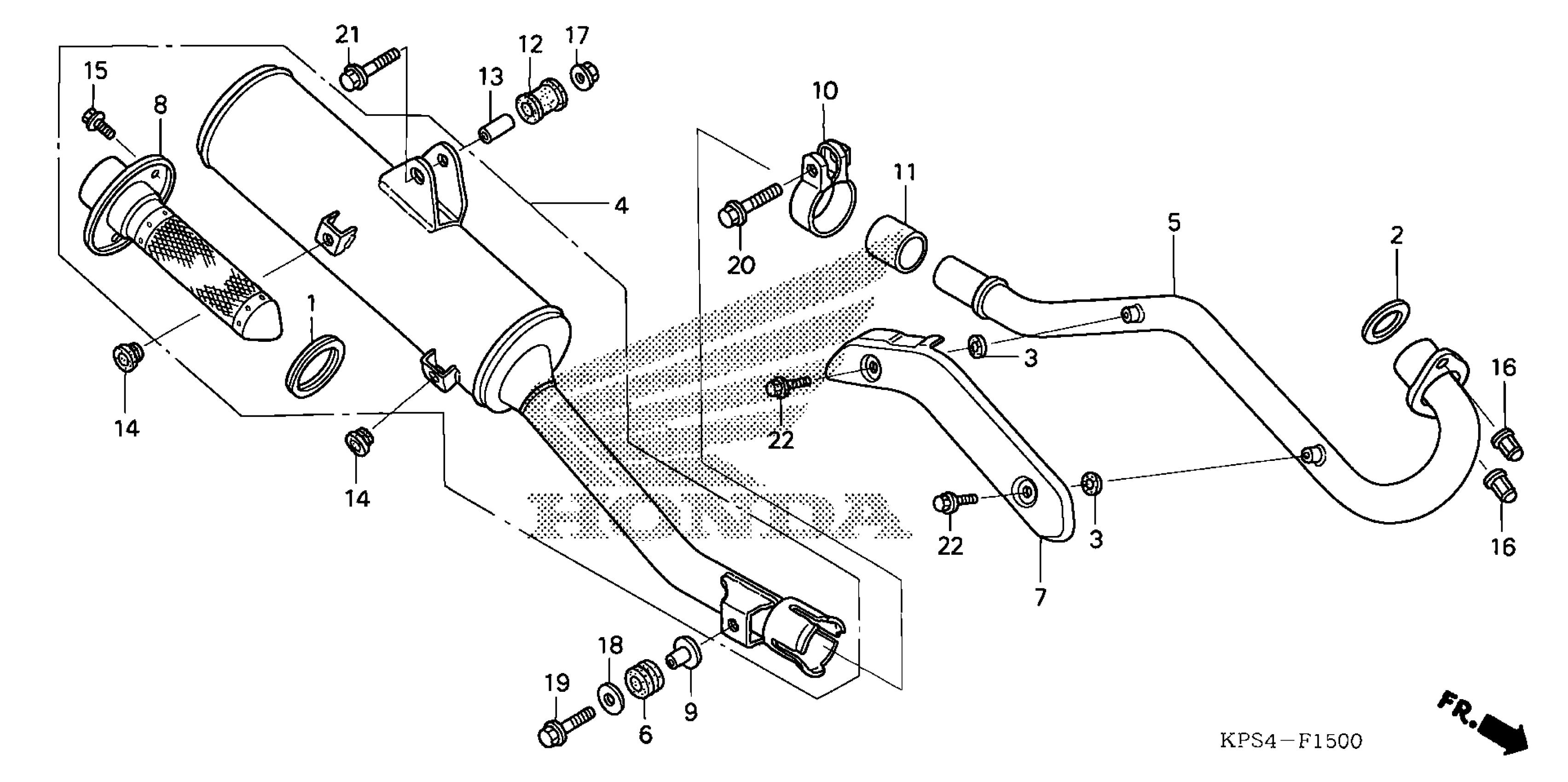

Honda CRF230FA (09) MOTORCYCLE, BRA, VIN# 9C2ME090-9R000001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. MUFFLER

18291-KPS-900

$6.86

2

GASKET, EX. PIPE

18291-MN5-650

$3.52

3

GASKET, PROTECTOR

18292-KBR-000

$3.21

4

MUFFLER ASSY., EX. (COO)

18300-KPS-306

$563.88

4

MUFFLER ASSY., EX. (COO) This part replaces 18300-KPS-730.

18300-KPS-306

$563.88

5

PIPE, EX.

18320-KPS-900

$43.99

6

RUBBER, RR. CHAMBER MOUNTING

18328-KAE-000

$2.06

7

PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK) | Extreme red R292R;

18345-KPS-901ZA

$48.99

8

ARRESTER ASSY. (COO)

18355-KPS-306

$236.96

8

ARRESTER ASSY. (COO) This part replaces 18355-KPS-730.

18355-KPS-306

$236.96

9

COLLAR, MUFFLER MOUNTING

18356-KAE-000

$4.16

10

BAND, EX. PIPE

18373-KRH-D20

$47.00

11

GASKET, EX.

18391-MB0-891

$16.08

12

RUBBER, MUFFLER MOUNTING

18421-KFB-000

$4.18

13

COLLAR, MUFFLER MOUNTING

18422-KFB-000

$4.06

14

RUBBER, SIDE COVER

83512-KA4-700

$4.26

15

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

16

NUT, HEX. CAP (7MM)

90305-KPS-900

$7.79

17

NUT, FLANGE (8MM)

94050-08070

$1.36

18

WASHER, PLAIN (8MM)

94103-08700

$0.86

19

BOLT, FLANGE (8X30)

90033-GHR-F20

$1.10

20

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.20

21

BOLT, FLANGE (8X45)

95701-08045-07

$2.07

22

BOLT, FLANGE (6X8)

96001-06008-07

$0.86
