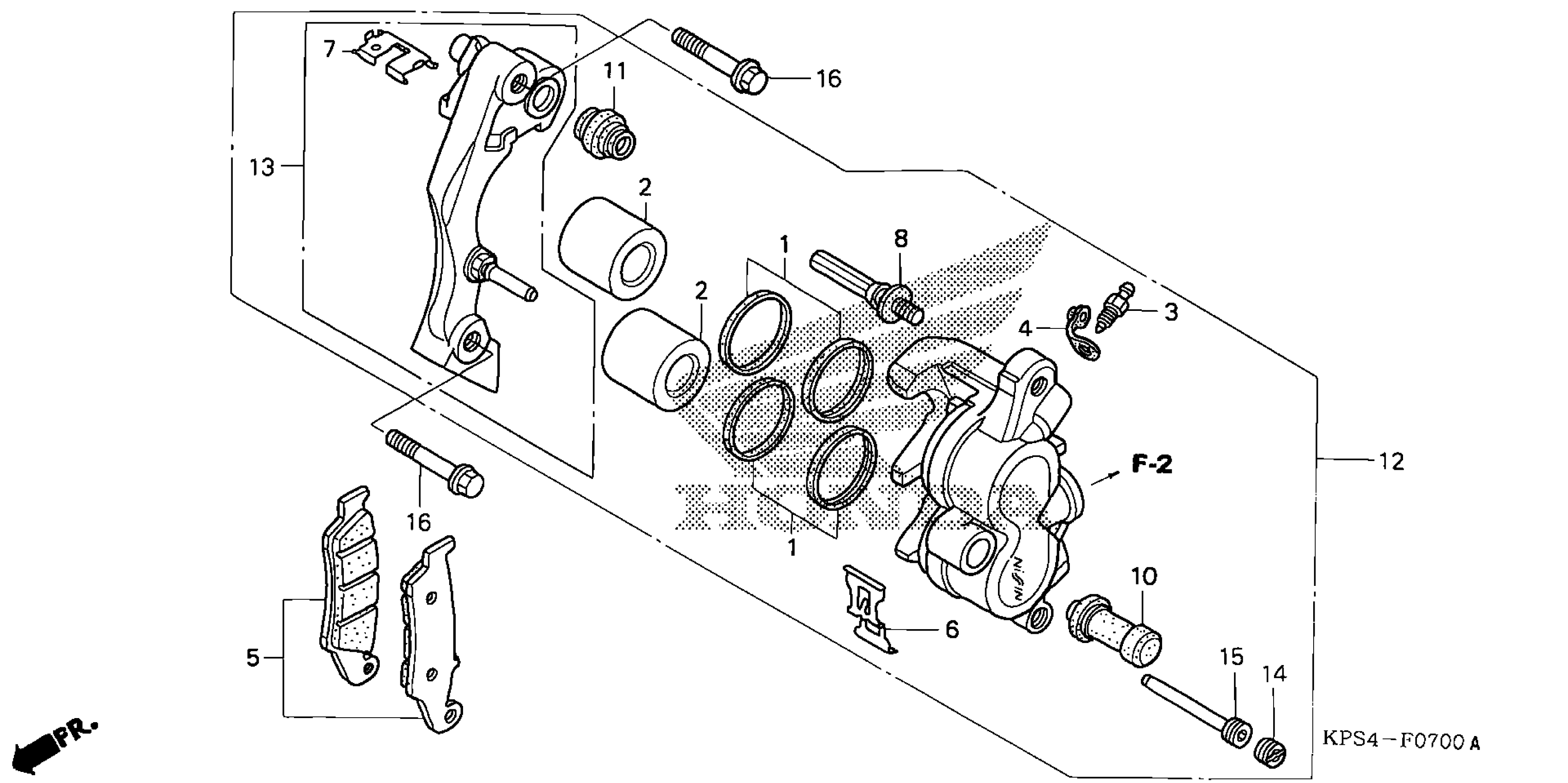

Honda CRF230FA (09) MOTORCYCLE, BRA, VIN# 9C2ME090-9R000001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$7.33

2

PISTON (27X27)

43107-MBG-006

$33.79

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

PAD SET, FR.

45105-MY6-415

$47.06

6

SPRING, PAD

45108-MY1-006

$10.74

7

RETAINER

45112-KS6-701

$6.08

8

BOLT A, PIN

45131-HA5-672

$15.44

10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

11

BOOT B

45133-MA3-006

$5.46

12

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KZ4-J21

$243.03

13

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KZ4-J21

$84.89

14

PLUG, PIN

45203-MG3-016

$5.12

15

PIN, HANGER

45215-HA5-672

$10.63

16

BOLT, FLANGE (8X40)

90131-KPS-900

$2.34
