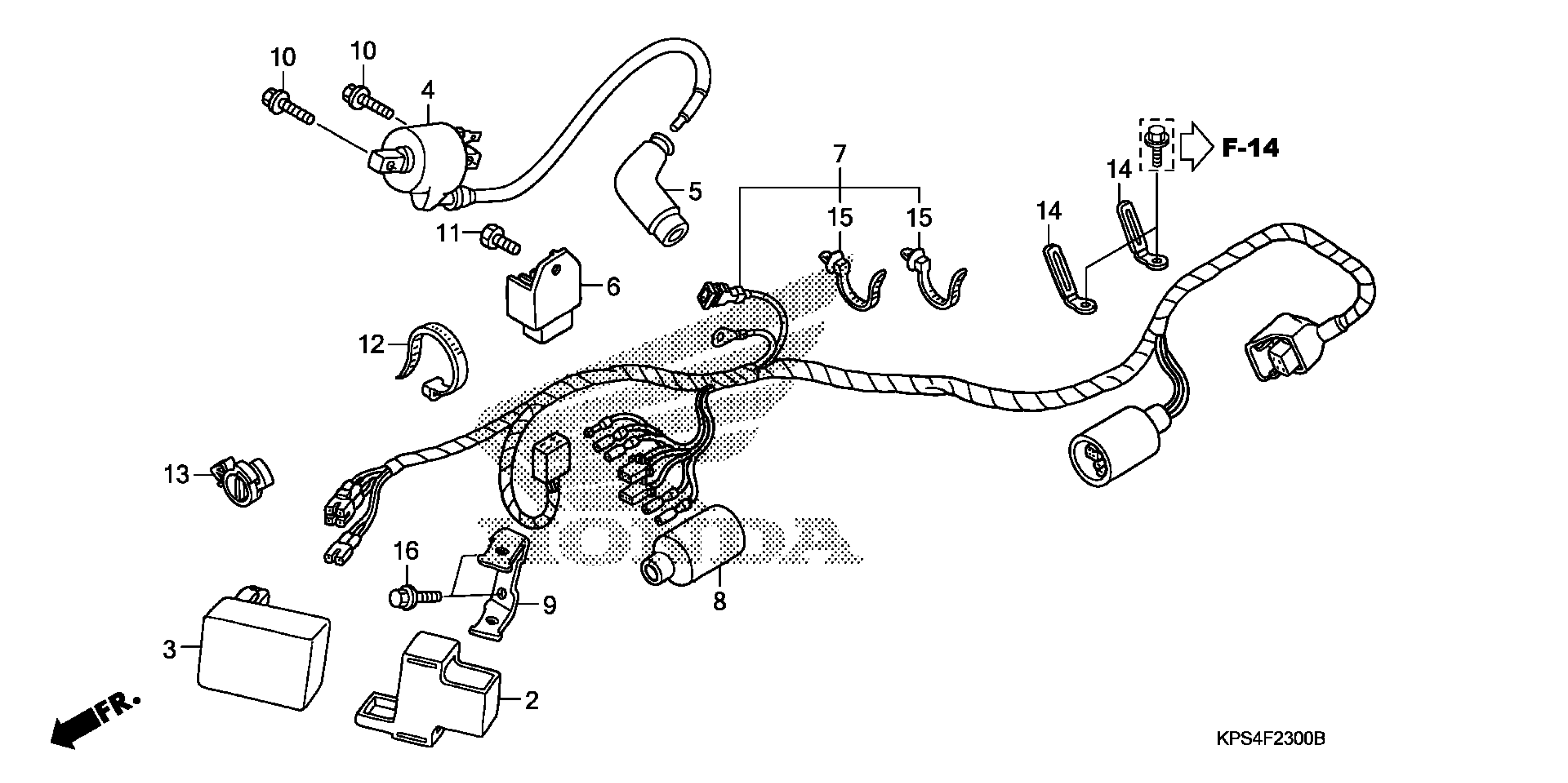

Honda CRF230FA (08) MOTORCYCLE, BRA, VIN# 9C2ME090-8R000001 TO 9C2ME090-8R099999 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KPS-900

$13.08

MODULE, IGNITION CONTROL (CDI)

30410-KPS-901

$158.08

COIL ASSY., IGNITION This part replaces 30500-KPS-901.

30500-KR8-751

$60.83

CAP ASSY. This part replaces 30700-KN4-A60.

30700-KN4-A61

$26.05

RECTIFIER, REGULATE This part replaces 31600-GAG-K20.

31600-GAG-K21

$106.79

RECTIFIER, REGULATE

31600-GAG-K21

$106.79

WIRE HARNESS

32100-KPS-901

Unavailable

COVER, WIRE HARNESS CONNECTOR

32108-KRH-D40

$1.72

STAY, C.D.I.

50301-KPS-900

$4.79

BOLT-WASHER (6X20)

93401-06020-00

$1.55

BOLT, HEX. (6X10)

90124-KPS-900

Unavailable

BAND, WIRE HARNESS

90620-SB2-003

$24.63

CLIP, HARNESS

90684-ZA0-601

$2.93

CLIP, WIRE HARNESS

91404-VM6-000

$6.25

CLIP, HARNESS BAND (96.9MM) (NATURAL)

91540-S0A-003

$6.33

BOLT, FLANGE (6X8)

96001-06008-00

$1.49
