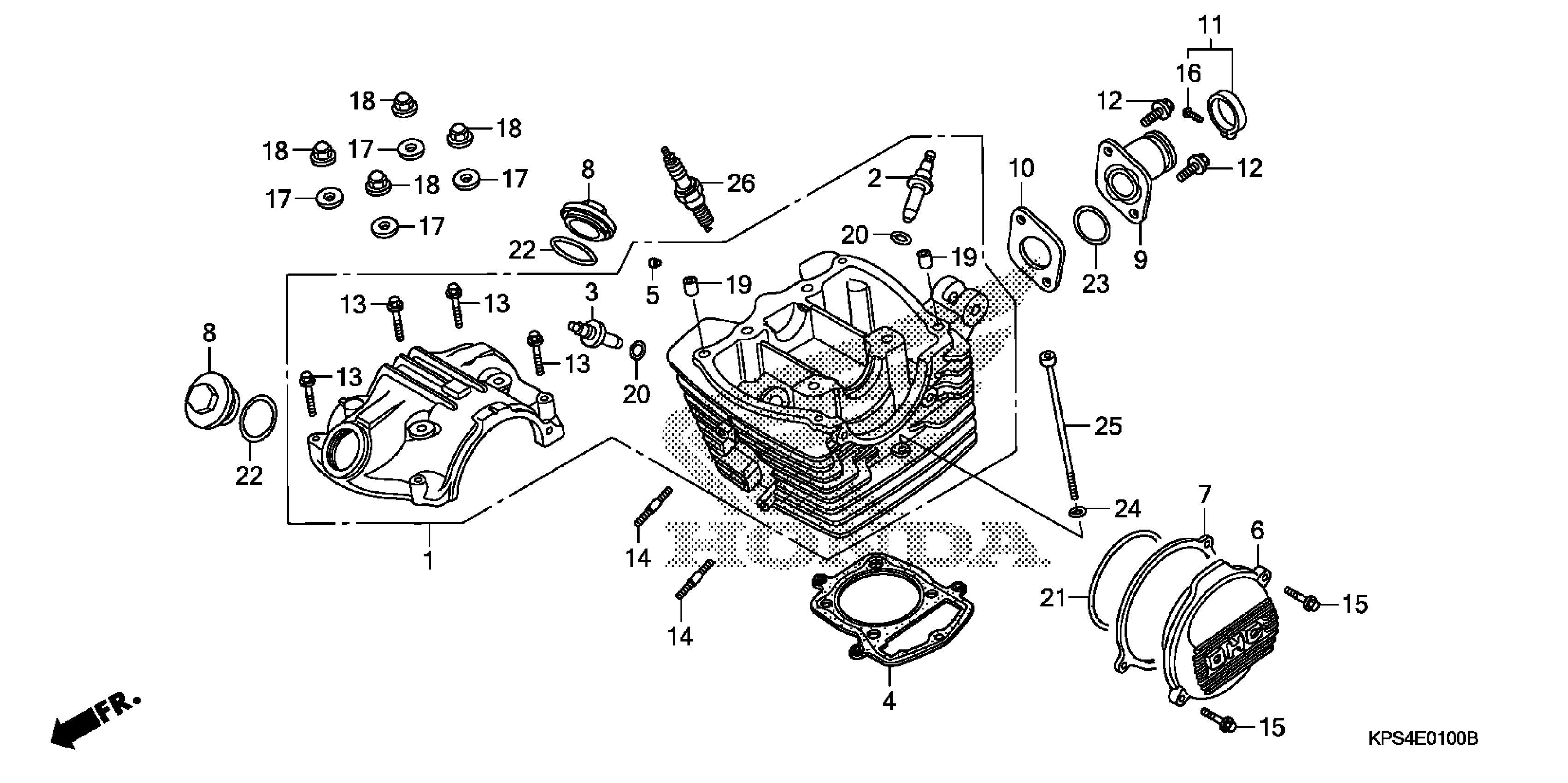

Honda CRF230FA (08) MOTORCYCLE, BRA, VIN# 9C2ME090-8R000001 TO 9C2ME090-8R099999 CYLINDER HEAD COVER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12000-KPS-901

$255.59

2

GUIDE, VALVE This part replaces 12204-KW1-305.

12204-KW1-405

$11.52

2

GUIDE, VALVE

12204-KW1-405

$11.52

3

GUIDE, VALVE

12204-KW1-405

$11.52

3

GUIDE, VALVE This part replaces 12206-KW1-315.

12204-KW1-405

$11.52

4

GASKET, CYLINDER HEAD

12251-KT0-711

$24.62

5

RUBBER, OIL SEAL

12271-383-000

$2.92

6

COVER, L. CYLINDER HEAD

12331-KPS-900

$7.14

7

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

7

GASKET This part replaces 12339-KT0-711.

12339-KT0-712

$7.04

8

CAP, TAPPET ADJUSTING HOLE

12361-KPS-900

$3.64

9

INSULATOR, CARBURETOR

16210-KPS-900

$32.47

10

GASKET This part replaces 16214-KPS-900.

16214-KPS-902

$3.21

10

GASKET This part replaces 16214-KPS-901.

16214-KPS-902

$3.21

11

BAND, INSULATOR

16223-KPS-900

$16.62

12

BOLT, FLANGE (6X22)

90040-GHR-690

$1.49

13

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

13

BOLT, FLANGE (6X35) (NSHF) This part replaces 90004-GHR-700.

90004-GHB-700

$4.07

14

BOLT, STUD (7X35)

90041-KW1-900

$2.33

15

BOLT, FLANGE (6X20)

90040-GHR-680

$1.49

16

SCREW, PAN (5X25) This part replaces 90114-KPS-900.

90227-GHR-E00

$3.19

16

SCREW, PAN (5X25)

90227-GHR-E00

$3.19

17

WASHER, SEALING (8MM)

90442-KPS-900

$1.49

18

NUT, CAP (8MM) This part replaces 90443-KPS-900.

90443-107-000

$2.89

18

NUT, CAP (8MM)

90443-107-000

$2.89

19

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

19

PIN, DOWEL (8X14)

94301-08140

$2.25

20

O-RING (10X1.6) This part replaces 91301-KW1-900.

91301-KPF-960

$1.49

21

O-RING (75X2.5)

91301-107-000

$4.87

22

O-RING (35X3) (ARAI)

91303-KK3-830

$2.92

22

O-RING (35X3) (ARAI) This part replaces 91303-KPS-730.

91303-KK3-830

$2.92

23

O-RING (33.5X3.0)

91304-KRM-840

$3.10

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

BOLT, SOCKET (6X125)

96700-06125-10

$2.54

26

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

26

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

26

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

26

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54
