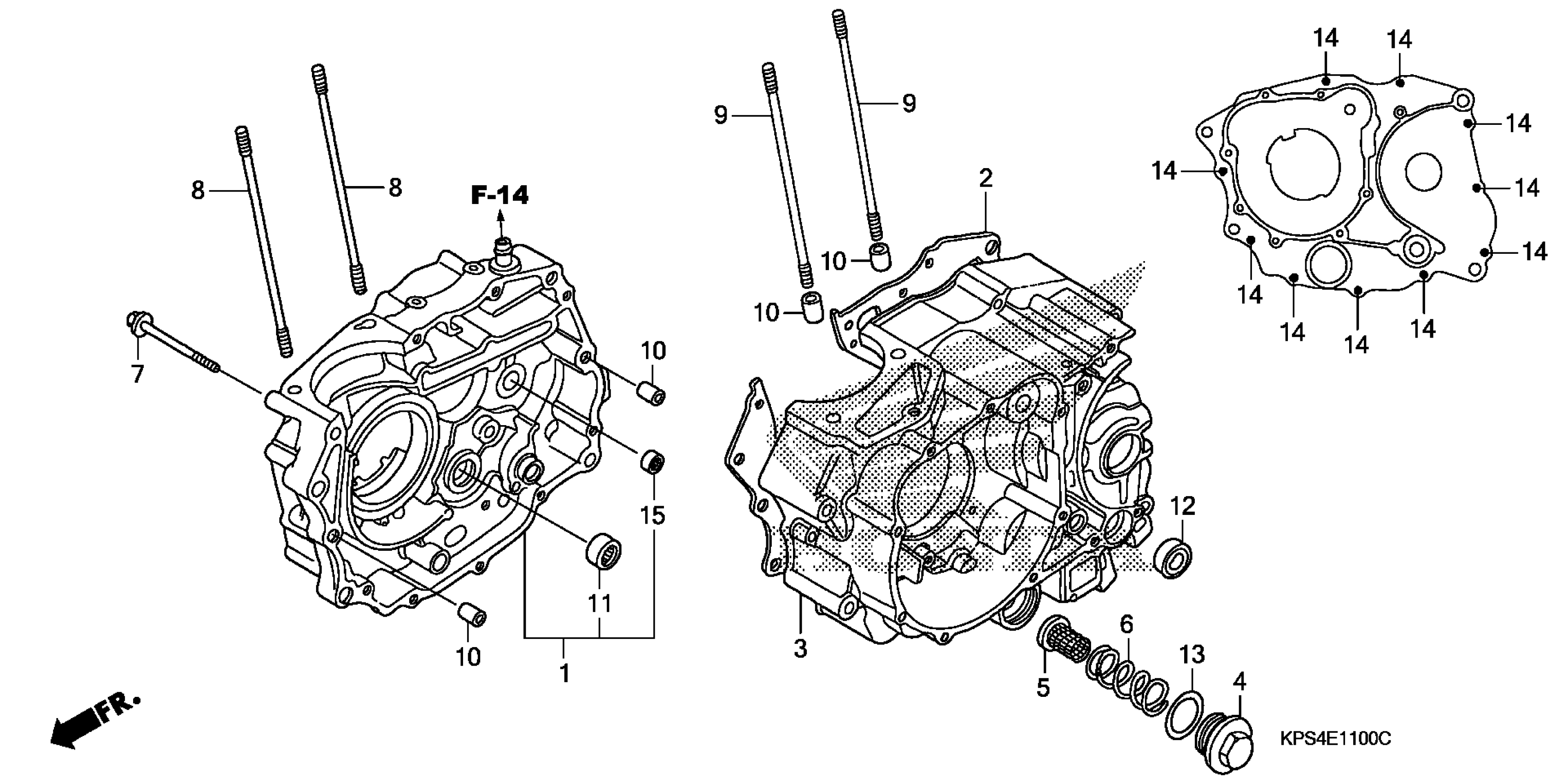

Honda CRF230FA (07) MOTORCYCLE, BRA, VIN# 9C2ME090-7R000001 TO 9C2ME090-7R099999 CRANKCASE Diagram

CRANKCASE, R.

11100-KPS-900

$106.57

GASKET, CRANKCASE

11191-KHA-940

$20.72

CRANKCASE, L.

11200-KPS-900

$148.77

CAP, TAPPET ADJUSTING HOLE

12361-KPS-900

$3.64

SCREEN, OIL FILTER

15421-KPS-900

$4.01

SPRING, OIL FILTER SCREEN

15426-KPS-900

$1.49

BOLT, FLANGE (6X55)

90040-GHR-790

$4.25

BOLT A, CYLINDER STUD

90031-KFB-000

$6.14

BOLT B, CYLINDER STUD

90032-KFB-000

$6.14

PIN, DOWEL (10X14)

90703-KPS-900

$1.49

BEARING, NEEDLE (21MM)

91008-KCN-003

$16.52

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.41

O-RING (35X3) (ARAI)

91303-KK3-830

$2.92

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BEARING, NEEDLE (15MM)

91106-KB4-003

$13.74
