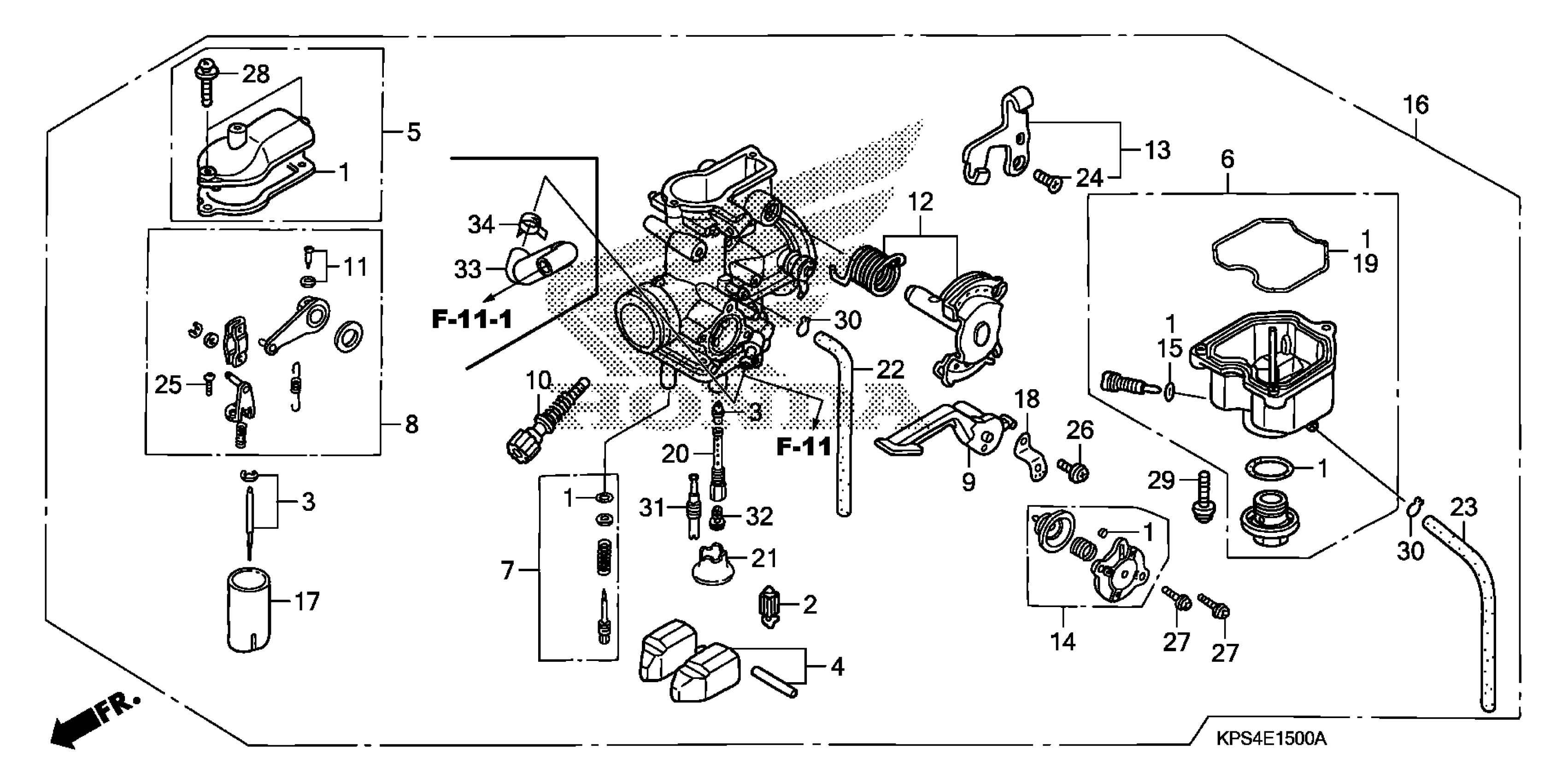

Honda CRF230FA (07) MOTORCYCLE, BRA, VIN# 9C2ME090-7R000001 TO 9C2ME090-7R099999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KCE-670

$35.44

2

VALVE SET, FLOAT | Use from Engine SN PD9CD A to PD9CD A

16011-KCK-910

$33.82

2

VALVE SET, FLOAT

16011-KPS-921

$54.85

3

NEEDLE SET, JET

16012-KPS-731

$33.85

4

FLOAT SET

16013-KN4-A10

$34.66

5

TOP SET

16014-KCE-771

Unavailable

6

CHAMBER SET, FLOAT

16015-KPS-901

$117.87

7

SCREW SET A

16016-KC2-764

Unavailable

8

ARM SET, LINK

16018-428-671

$117.16

9

LEVER, CHOKE

16019-KPS-901

$30.77

10

SCREW SET B

16028-KBW-901

$22.79

11

SCREW SET C

16029-KCE-670

$11.30

12

LINK SET, THROTTLE

16032-KPS-901

$104.07

13

STAY SET, WIRE

16037-KCE-670

$18.54

14

VALVE SET, AIR CUT

16048-KB7-901

$149.08

15

O-RING (1.3X4.3)

16075-GHB-640

$2.92

16

CARBURETOR ASSY. (PD9CD B)

16100-KPS-732

Unavailable

17

VALVE, THROTTLE

16111-KBB-951

$73.18

18

PLATE, CHOKE LEVER SETTING

16119-429-771

$9.66

19

GASKET, FLOAT CHAMBER

16163-KCS-920

$11.91

20

HOLDER, NEEDLE JET This part replaces 16165-KEG-961.

16165-KPS-841

$27.19

21

HOLDER, JET

16168-382-014

$9.81

22

TUBE, AIR VENT

16198-KPS-901

$6.25

23

TUBE

16199-KPS-901

$5.87

24

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

24

SCREW, FLAT (5X10) This part replaces 93600-05010-1H.

93600-05010-0H

$1.49

25

SCREW-WASHER (3X8)

93892-03008-08

$1.49

25

SCREW-WASHER (3X8) This part replaces 93892-03008-18.

93892-03008-08

$1.49

26

SCREW-WASHER (4X10)

93892-04010-08

$1.49

26

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.49

27

SCREW-WASHER (4X12)

93892-04012-08

$1.49

27

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

28

SCREW-WASHER (4X14)

93892-04014-08

$1.49

28

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

29

SCREW-WASHER (4X16)

93892-04016-08

$1.49

29

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$1.49

30

CLIP, TUBE (B6.5)

95002-02659

$1.49

31

JET, SLOW (#42) This part replaces 99103-MT2-0420.

99103-MV9-0420

$20.89

32

JET, MAIN (#98) | (Optional).

99113-GHB-0980

$9.32

32

JET, MAIN (#102)

99113-GHB-1020

$9.89
