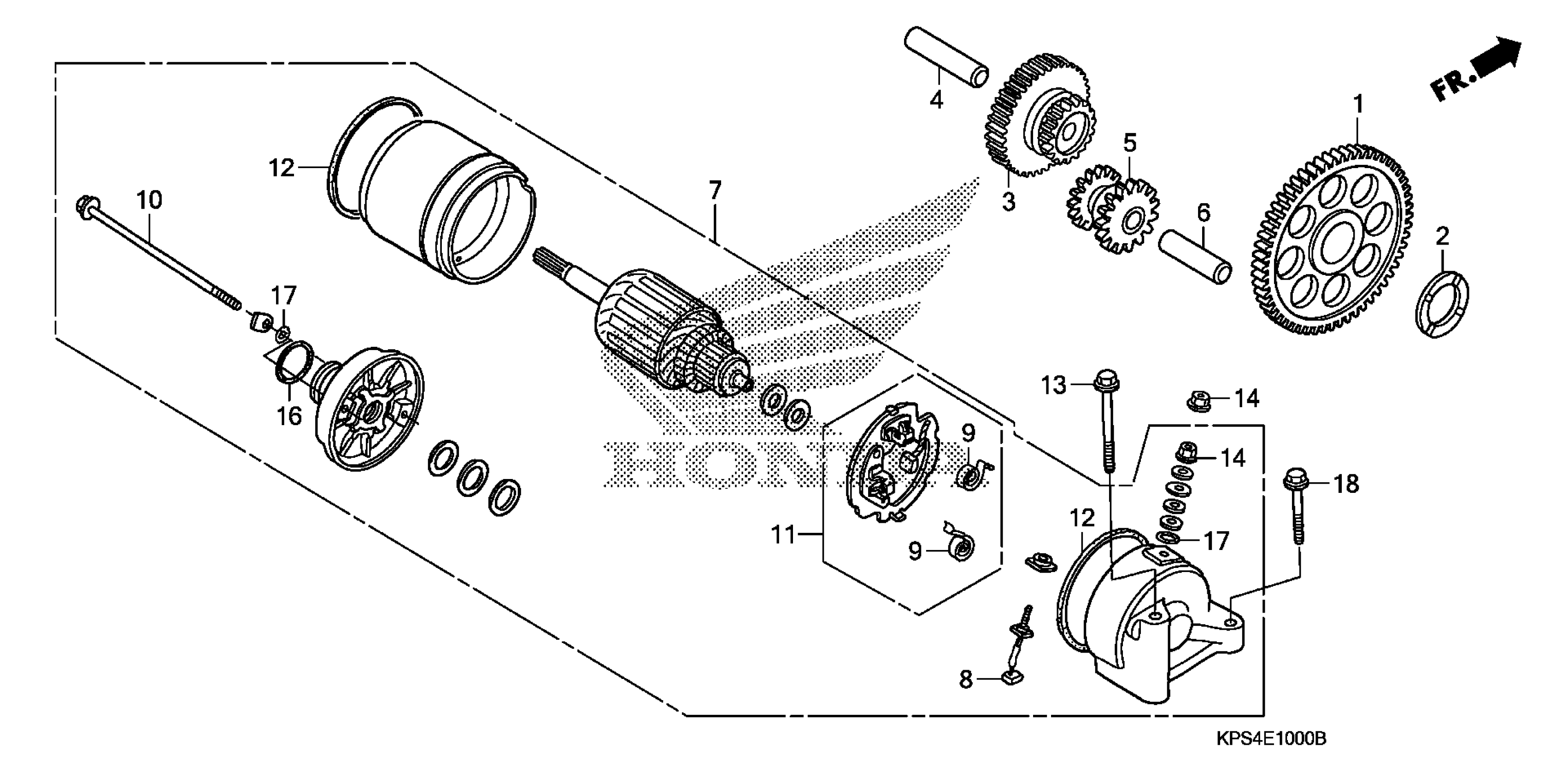

Honda CRF230FA (06) MOTORCYCLE, BRA, VIN# 9C2ME090-6R000001 TO 9C2ME090-6R099999 STARTING MOTOR (1) Diagram

GEAR, STARTER DRIVEN (56T)

28110-KBB-900

$84.28

COLLAR, STARTING DRIVEN GEAR

28114-KN6-930

$22.81

GEAR, REDUCTION (16T/61T)

28130-KFB-000

$59.12

SHAFT, REDUCTION GEAR

28132-KN6-930

$9.94

SHAFT, REDUCTION GEAR This part replaces 28132-KPS-900.

28132-KN6-930

$9.94

GEAR, IDLE (16T/16T)

28140-KPS-900

$63.83

SHAFT, IDLE GEAR

28142-KW1-900

$71.12

STARTER MOTOR ASSY. (MITSUBA)

31200-KBB-901

$174.94

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MN4-008

$5.29

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

RING

31207-KS5-901

$2.90

BOLT, FLANGE (6X60) This part replaces 90005-KPS-900.

90032-GHR-800

$6.96

BOLT, FLANGE (6X60)

90032-GHR-800

$6.96

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X32)

95801-06032-00

$0.93
