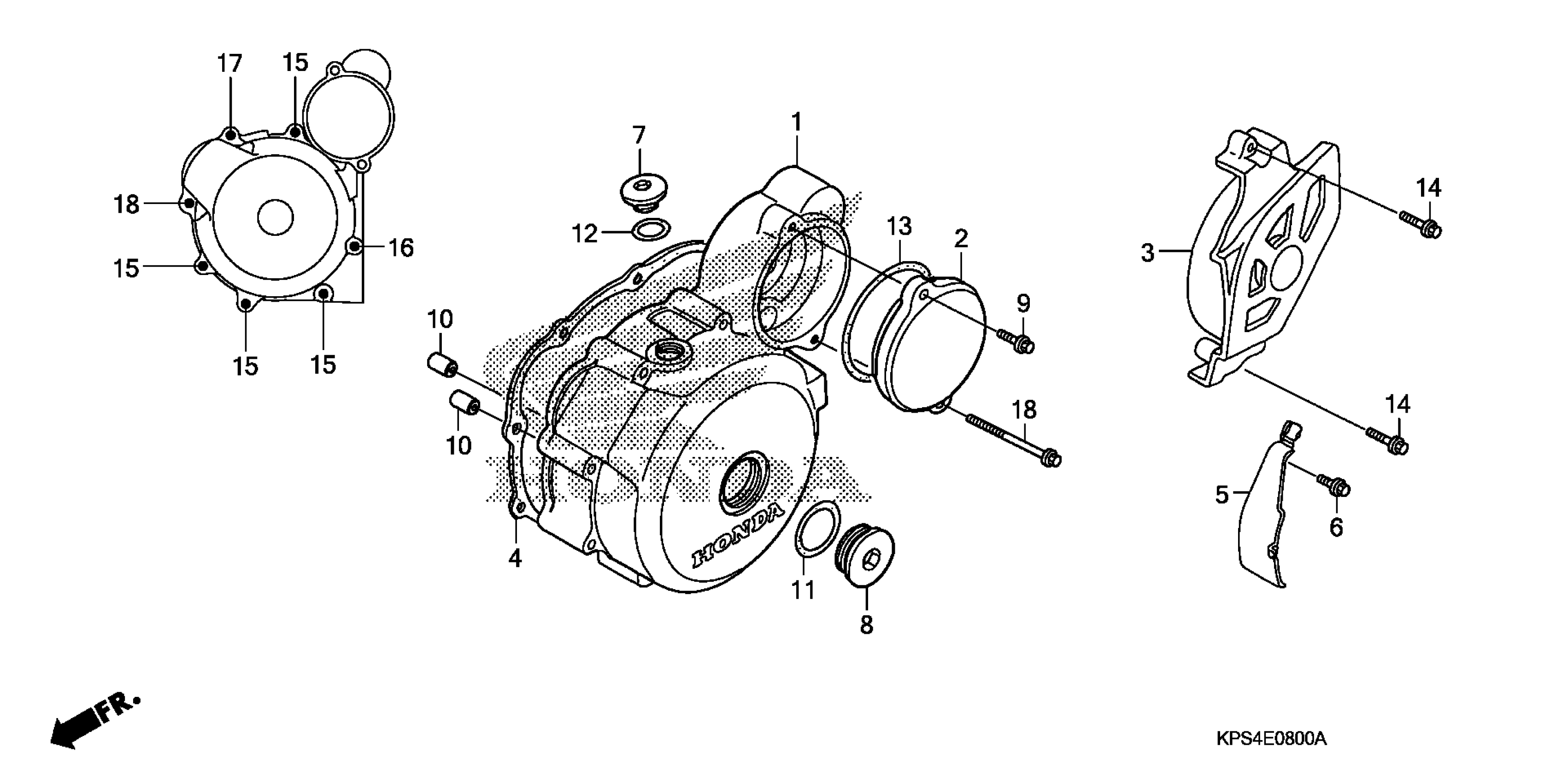

Honda CRF230FA (06) MOTORCYCLE, BRA, VIN# 9C2ME090-6R000001 TO 9C2ME090-6R099999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-KPS-900

$60.99

COVER, REDUCTION GEAR

11355-KPS-900

$12.59

COVER, L. RR. CRANKCASE

11360-KPS-900

$21.93

GASKET, L. COVER This part replaces 11395-KCN-000.

11395-KCN-020

$12.51

GASKET, L. COVER This part replaces 11395-KCN-010.

11395-KCN-020

$12.51

CLAMP, ALTERNATOR WIRE

32976-KW1-900

$1.85

BOLT, FLANGE (6X14) This part replaces 90001-KPS-900.

90040-GHR-650

$2.50

BOLT, FLANGE (6X14)

90040-GHR-650

$2.50

CAP (14MM)

90084-KPS-900

$1.59

CAP (30MM) This part replaces 90087-KPS-900.

90087-HB5-000

$15.31

CAP (30MM)

90087-HB5-000

$15.31

BOLT, FLANGE (6X20) This part replaces 90104-KPS-900.

90040-GHR-680

$0.85

BOLT, FLANGE (6X20)

90040-GHR-680

$0.85

PIN, DOWEL (10X14)

90703-KPS-900

$1.15

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.60

O-RING (13.8X2.5)

91303-377-000

$3.26

O-RING (63X3)

91304-KGA-940

$3.12

BOLT, FLANGE (6X25)

96001-06025-00

$2.63

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

BOLT, FLANGE (6X60)

96001-06060-00

$2.69

BOLT, FLANGE (6X70)

96001-06070-00

$1.81
