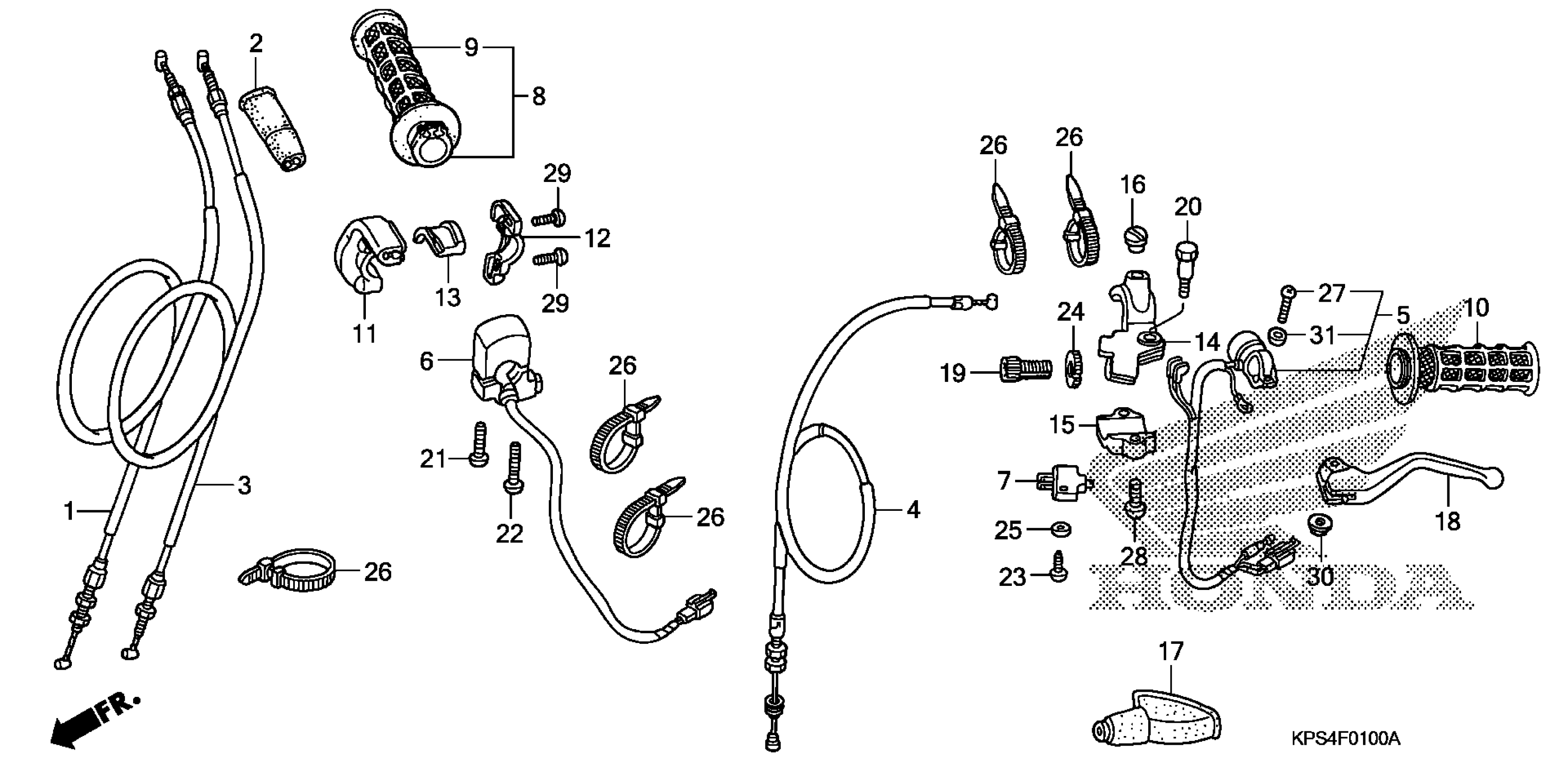

Honda CRF230FA (06) MOTORCYCLE, BRA, VIN# 9C2ME090-6R000001 TO 9C2ME090-6R099999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE (PULL)

17910-KPS-900

$33.67

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.52

3

CABLE B, THROTTLE (RETURN)

17920-KPS-900

$27.04

4

CABLE, CLUTCH

22870-KPS-900

$25.26

5

SWITCH ASSY., ENGINE STOP This part replaces 35130-KPS-900.

35130-KPS-901

$25.85

5

SWITCH ASSY., ENGINE STOP

35130-KPS-901

$25.85

6

SWITCH ASSY., STARTER

35150-KPS-900

$39.15

7

SWITCH ASSY., CLUTCH

35330-MK5-003

$15.95

8

GRIP ASSY., THROTTLE

53140-KPS-901

$11.36

9

GRIP, R. HANDLE

53165-MGW-305

$9.25

9

GRIP, R. HANDLE This part replaces 53165-MK5-010.

53165-MGW-305

$9.25

10

GRIP, L. HANDLE (COO)

53166-MGW-305

$9.31

10

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-010.

53166-MGW-305

$9.31

11

HOUSING, THROTTLE (LOWER)

53168-KPS-900

$13.18

12

HOUSING, THROTTLE (UPPER)

53167-KPS-900

$11.09

13

SLIDER, THROTTLE

53169-KPE-900

$1.10

14

BRACKET, L. HANDLE LEVER

53172-KPS-900

$11.76

15

HOLDER, L. LEVER BRACKET

53174-KPS-900

$2.80

16

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.26

17

COVER, L. HANDLE LEVER

53177-KPS-730

$1.32

17

COVER, L. HANDLE LEVER This part replaces 53177-KS5-700.

53177-KPS-730

$1.32

18

LEVER, L. HANDLEBAR (COO) This part replaces 53178-KPS-900.

53178-KPT-305

$8.87

18

LEVER, L. HANDLEBAR (COO)

53178-KPT-305

$8.87

19

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

20

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.41

21

SCREW, PAN (4X32)

90120-KPS-900

$0.87

22

SCREW, PAN (4X45)

90121-KPS-900

$1.71

23

SCREW, TAPPING (3X12)

93901-32320

$0.83

24

NUT, FIXING

90321-315-670

$6.80

25

WASHER, SPRING (3MM)

90520-KPS-900

$0.59

26

BAND, WIRE

90650-KW3-000

$4.16

27

SCREW, PAN (4X12)

93500-04012-0A

$0.75

27

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

28

SCREW, PAN (5X16)

93500-05016-0A

$0.83

29

SCREW, PAN (5X16)

93500-05016-0G

$0.83

30

NUT, FLANGE (6MM)

94050-06000

$0.59

31

WASHER, SPRING (4MM)

94111-04000

$0.97
