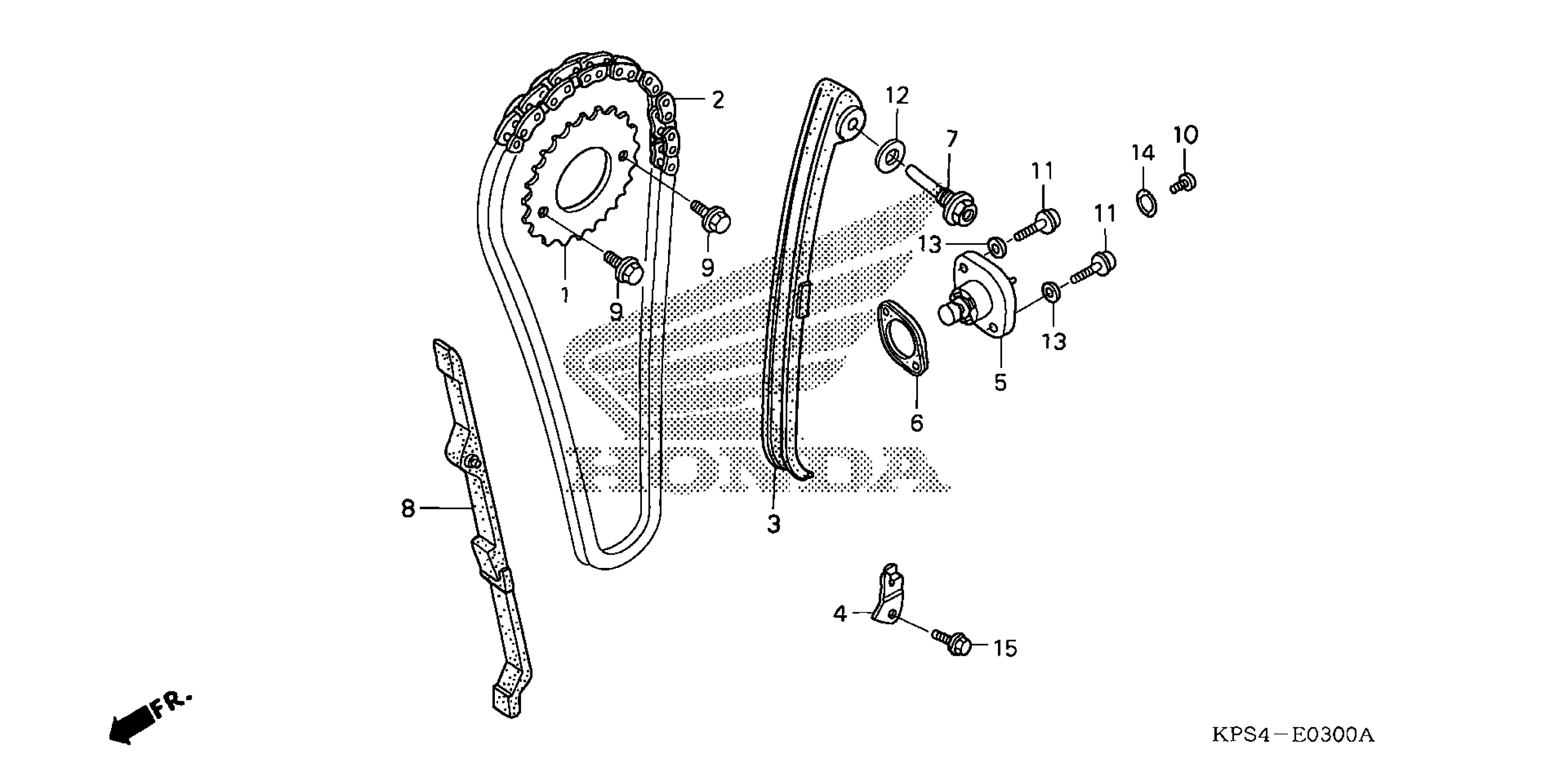

Honda CRF230FA (06) MOTORCYCLE, BRA, VIN# 9C2ME090-6R000001 TO 9C2ME090-6R099999 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (34T)

14321-KEH-900

$34.23

CHAIN, CAM (104L) (BORG WARNER)

14401-KFB-751

$53.30

TENSIONER, CAM CHAIN

14500-KBB-900

$77.08

PLATE, CAM CHAIN SETTING

14513-KPS-900

$1.68

LIFTER ASSY., TENSIONER This part replaces 14520-KCT-691.

14520-KCT-692

$71.23

LIFTER ASSY., TENSIONER

14520-KCT-692

$71.23

GASKET, TENSIONER LIFTER

14523-KBB-901

$8.95

BOLT, CAM CHAIN TENSIONER PIVOT This part replaces 14535-KPS-900.

14535-437-000

$5.86

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$5.86

GUIDE, CAM CHAIN

14550-KFB-000

$36.96

BOLT, FLANGE (6X10) This part replaces 90002-KPS-900.

90002-KW1-900

$2.29

BOLT, FLANGE (6X10)

90002-KW1-900

$2.29

SCREW, PAN (6X6)

90005-KY7-000

$3.01

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.54

WASHER C (8MM)

90475-703-000

Unavailable

WASHER, SEALING (6MM)

90488-425-000

$2.07

O-RING (1.5X9.5)

91306-MG3-000

$2.12

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.12

BOLT, FLANGE (6X12)

95701-06012-00

$1.81
