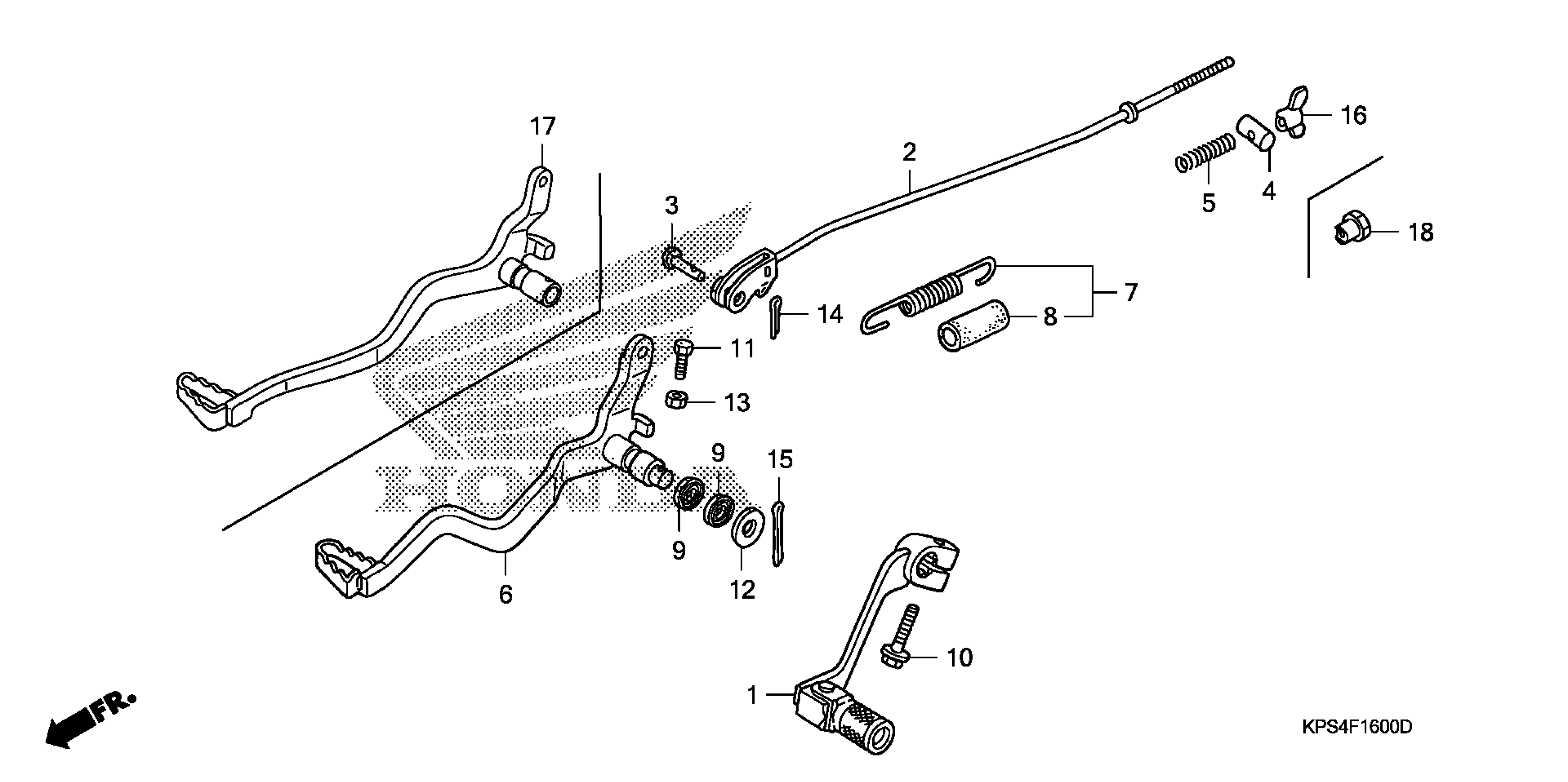

Honda CRF230FA (05) MOTORCYCLE, BRA, VIN# 9C2ME090-5R000001 TO 9C2ME090-5R099999 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., CHANGE (COO) This part replaces 24700-KPS-900.

24700-KPT-305

$33.52

1

PEDAL ASSY., CHANGE (COO)

24700-KPT-305

$33.52

2

ROD, RR. BRAKE

43451-KPS-900

$13.12

3

PIN C, JOINT

43453-KPS-900

$1.49

4

JOINT B, BRAKE ARM

43454-KPS-900

$1.49

5

SPRING A, BRAKE ROD This part replaces 43472-KPS-900.

43472-KB9-750

$3.10

5

SPRING A, BRAKE ROD

43472-KB9-750

$3.10

6

PEDAL, BRAKE

46500-KPS-900

Unavailable

7

SPRING SET, BRAKE PEDAL

46513-KPS-900

$4.62

8

TUBE, BRAKE PEDAL SPRING

46515-KY7-000

$4.92

9

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

10

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

11

BOLT, HEX. (6X20) This part replaces 90105-KPS-900.

90015-GHR-680

$1.49

11

BOLT, HEX. (6X20)

90015-GHR-680

$1.49

12

WASHER, BUSH

90501-KPS-900

$0.52

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

13

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

PIN, SPLIT (2.0X12)

94201-20120

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

15

PIN, SPLIT (3.0X45)

94201-30450

$1.49

16

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83
