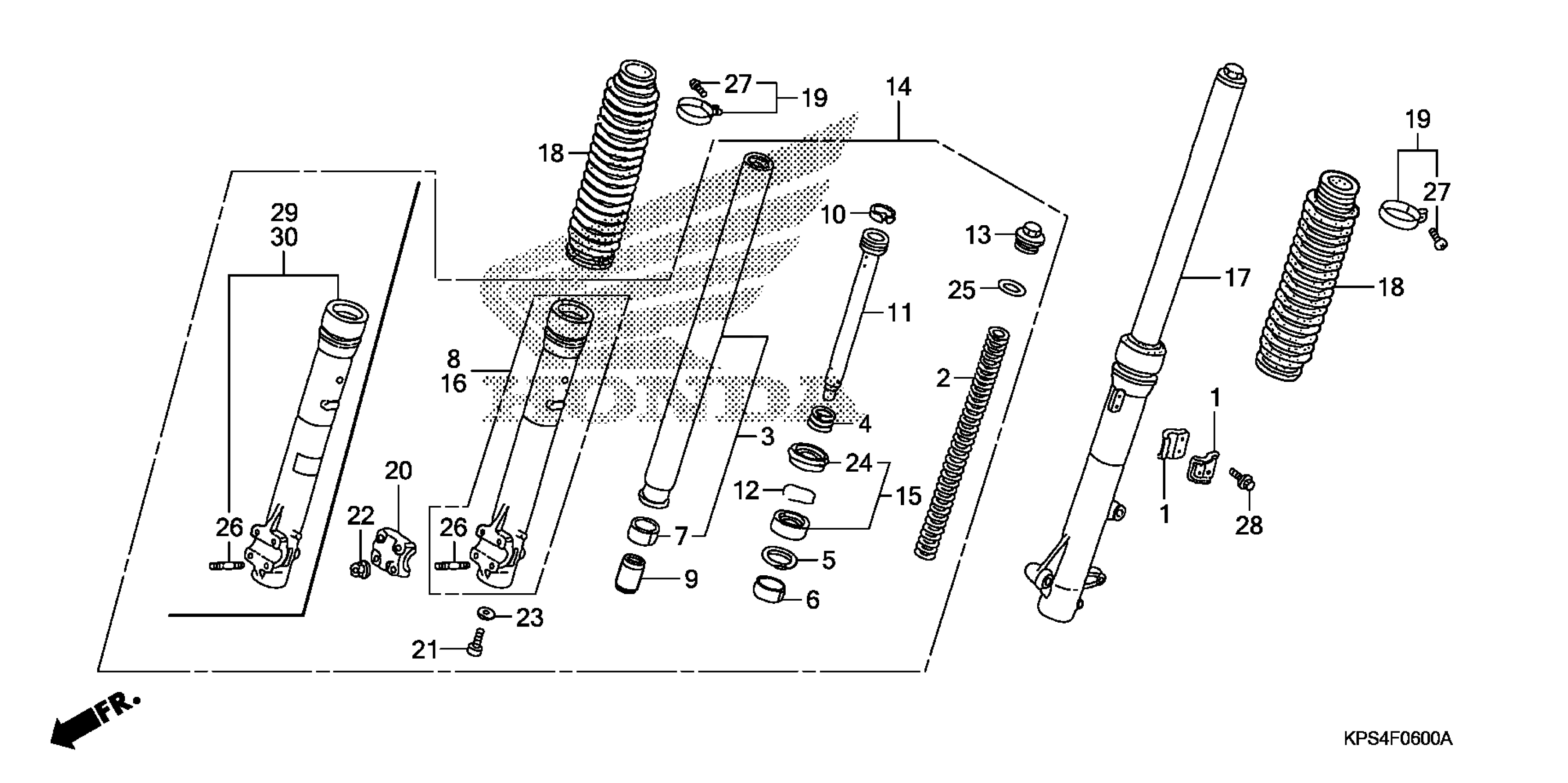

Honda CRF230FA (05) MOTORCYCLE, BRA, VIN# 9C2ME090-5R000001 TO 9C2ME090-5R099999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-KPS-900

$7.90

2

SPRING, FR. FORK

51401-KPS-901

$24.34

3

PIPE, FR. FORK

51410-KPS-901

$81.68

4

SPRING, FR. FORK REBOUND

51411-MG1-003

$6.61

5

RING, BACK-UP

51412-461-003

$7.04

6

BUSH, GUIDE

51414-MN4-003

$13.34

7

BUSH, SLIDER

51415-KS5-003

$8.18

8

CASE, R. (LOWER)

51420-KBB-903

$126.95

9

PIECE, OIL LOCK

51432-KCN-003

$10.07

10

RING, PISTON

51437-ME4-003

$9.61

11

PIPE, SEAT

51440-KPS-901

$28.39

12

RING, OIL SEAL STOPPER

51447-KR6-003

$3.77

13

BOLT, FR. FORK

51450-KAS-901

$23.48

14

FORK SUB-ASSY., R. FR.

51480-KPS-901

$446.16

15

SEAL SET, FR. FORK

51490-KR6-305

$23.04

16

CASE, L. (LOWER)

51520-KBB-903

$123.69

17

FORK SUB-ASSY., L. FR.

51580-KPS-901

$514.10

18

BOOT, FR. FORK *NH1* (BLACK) | Fighting red R134; Extreme red R292R;

51611-KR6-013ZH

$47.33

19

BAND, FR. FORK BOOT

51612-430-010

$8.11

20

HOLDER, AXLE

51634-MA0-003

$37.46

21

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

22

NUT, U (6MM)

90301-473-003

$4.07

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

24

DUST SEAL

91254-KR6-003

$16.25

25

O-RING (27.7X3.5)

91357-ME4-003

$3.35

26

BOLT, STUD (6X25) (R. SIDE ONLY)

92900-06025-0E

$1.49

27

SCREW, PAN (3X25)

93500-03025-0A

$1.49

28

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

28

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49
