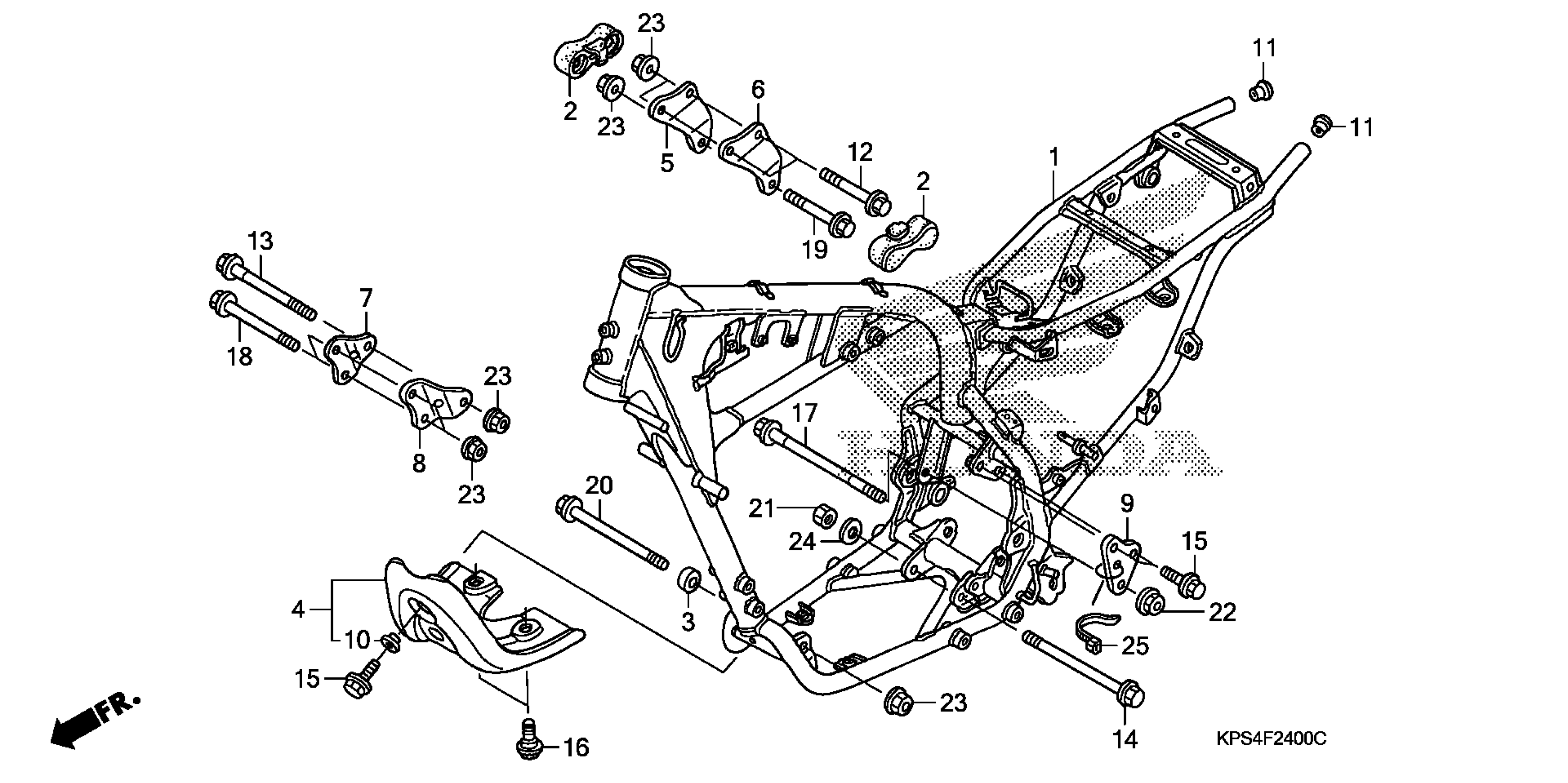

Honda CRF230FA (05) MOTORCYCLE, BRA, VIN# 9C2ME090-5R000001 TO 9C2ME090-5R099999 FRAME Diagram

#

Description
Price

1

FRAME *NH146M* (ACCURATE SILVER METALLIC) | Fighting red R134; Extreme red R292R; This part replaces 50100-KPS-900ZA.

50100-KPS-730ZA

$616.30

2

RUBBER, TANK GUARD

50212-KPS-900

$3.53

3

COLLAR, ENGINE MOUNTING

50318-GE2-000

$6.18

4

PLATE, SKID *NH201R* (HUSKY GRAY) | Fighting red R134; Extreme red R292R;

50351-KPS-900ZA

$38.93

5

PLATE, R. ENGINE HANGER (UPPER)

50531-KPS-900

$5.34

6

PLATE, L. ENGINE HANGER (UPPER)

50532-KPS-900

$5.34

7

PLATE, R. FR. ENGINE HANGER

50533-KPS-900

$3.64

8

PLATE, L. FR. ENGINE HANGER

50534-KPS-900

$3.64

9

PLATE, L. RR. ENGINE HANGER (UPPER)

50535-KPS-900

$2.26

10

COLLAR (14X5)

80138-KPS-900

$2.18

11

CAP, RR. BUMPER

84103-392-000

$3.89

12

BOLT, FLANGE (8X56)

90013-PL9-000

$3.80

13

BOLT, FLANGE (8X88)

90024-MV9-670

$7.49

14

BOLT, FLANGE (10X110)

90105-MG3-000

$9.23

15

BOLT, FLANGE (8X16)

90107-KPS-900

$1.49

16

BOLT, FLANGE (6MM)

90111-162-000

$2.89

17

BOLT, FLANGE (10X109)

90152-MBN-671

$3.61

18

BOLT, FLANGE (8X73)

90154-KB7-700

$20.75

19

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

20

BOLT, FLANGE (8X96)

90156-KK6-000

$9.98

21

NUT, HEX. (10MM) This part replaces 90302-KPS-900.

90203-GHR-850

$1.49

22

NUT, FLANGE (10MM)

90208-GHR-650

$1.49

22

NUT, FLANGE (10MM) This part replaces 90303-KPS-900.

90208-GHR-650

$1.49

23

NUT, FLANGE (8MM)

90208-GHR-640

$2.41

23

NUT, FLANGE (8MM) This part replaces 90306-KPS-900.

90208-GHR-640

$2.41

24

WASHER (10MM)

90441-MT3-000

$9.84

25

BAND, WIRE

90650-KW3-000

$4.48
