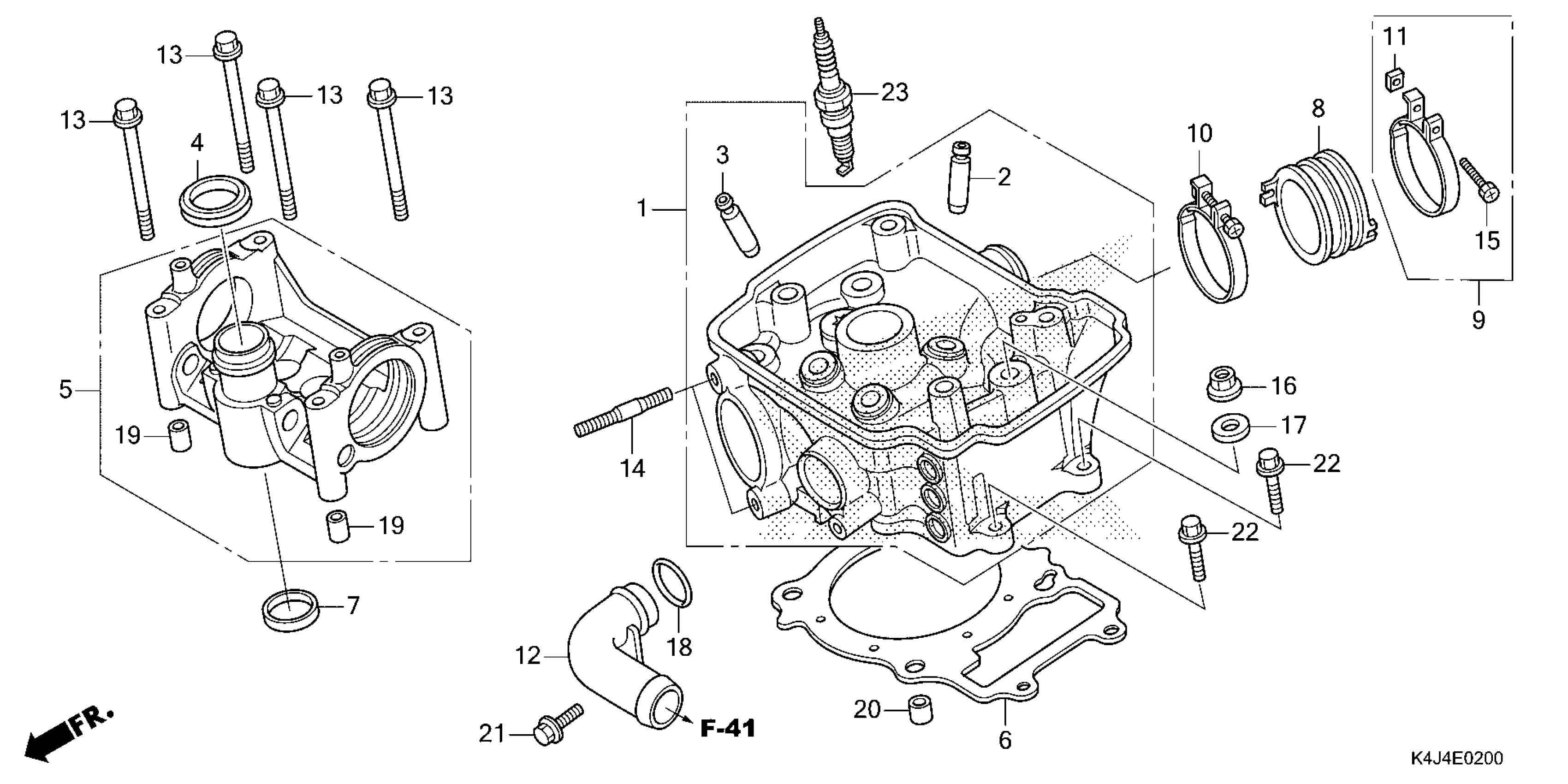

Honda CRF150RBAC (25) MOTORCYCLE, JPN, VIN# JH2KE03C-SK700001 TO JH2KE03C-SK799999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-KSE-A70

$464.18

2

GUIDE, VALVE (OVER SIZE)

12204-KSE-P00

$12.41

3

GUIDE, EX. VALVE (OVER SIZE)

12205-KSE-P00

$14.26

4

SEAL, RING

12226-MEB-670

$3.08

5

HOLDER, CAMSHAFT

12240-KSE-670

$126.46

6

GASKET, CYLINDER HEAD

12251-KSE-671

$19.94

7

GASKET, PLUG HOLE

12395-KSE-670

$3.77

8

INSULATOR, CARBURETOR

16210-KSE-670

$10.62

9

BAND A, INSULATOR

16216-MCZ-000

$3.53

10

BAND B, INSULATOR

16218-MCW-000

$3.31

11

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

12

PIPE, WATER

19523-KSE-670

$23.82

13

BOLT, FLANGE (6X73)

90003-KSE-670

$2.92

14

BOLT, STUD (7X25)

90004-KCW-851

$1.49

15

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.92

16

NUT, FLANGE (8MM)

90202-KGB-610

$1.49

17

WASHER, PLAIN (8MM)

90501-MK4-600

$3.81

18

O-RING (15X2.5)

91301-MY9-003

$2.28

18

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

19

PIN A, DOWEL (8X10)

94301-08100

$2.25

20

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

21

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

22

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

23

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

23

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
