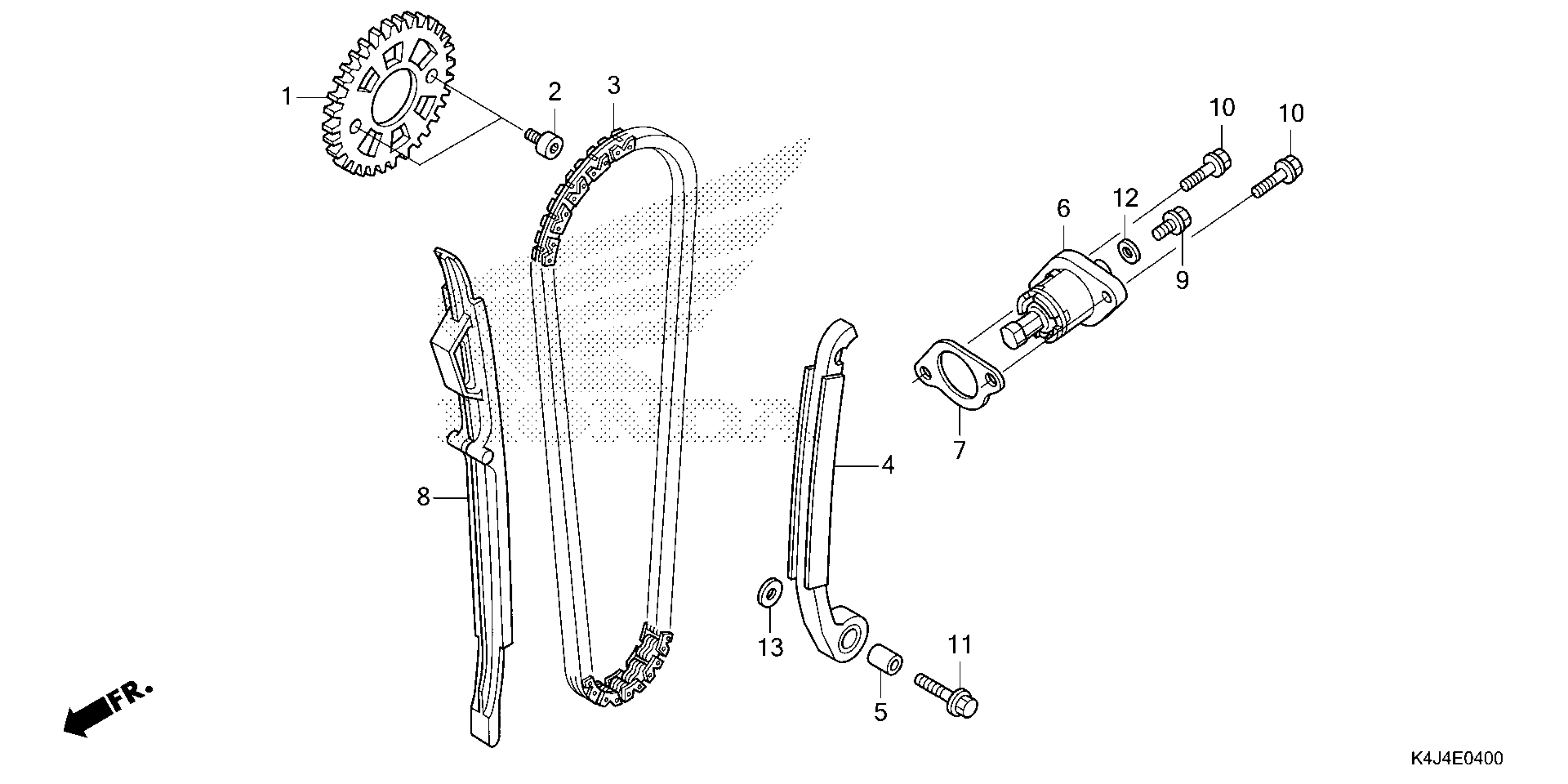

Honda CRF150RBAC (25) MOTORCYCLE, JPN, VIN# JH2KE03C-SK700001 TO JH2KE03C-SK799999 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (36T)

14321-KSE-A70

$53.10

BOLT, SPECIAL KNOCK (7X9.5)

14322-MAN-620

$9.32

CHAIN, CAM (96L) (BORG WARNER)

14401-KSE-A71

$57.48

TENSIONER, CAM CHAIN

14510-KSE-670

$55.66

COLLAR, TENSIONER (6X9)

14515-KF0-000

$5.78

LIFTER ASSY., TENSIONER

14520-KRN-671

$81.38

GASKET, TENSIONER LIFTER

14560-MEN-671

$6.01

GUIDE, CAM CHAIN

14620-KSE-670

$25.42

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

BOLT, FLANGE (6X25)

90088-MEB-670

$1.49

WASHER, SEALING (6MM)

90442-397-000

$2.28

WASHER SPECIAL (6MM) | Use from Engine SN 5328915.

90482-K94-V30

$1.49

WASHER (18MM) | Use up to Engine SN 5328914. This part replaces 90482-567-000.

90581-831-650

$1.87

WASHER (18MM) | Use up to Engine SN 5328914. This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM) | Use up to Engine SN 5328914.

90581-831-650

$1.87
