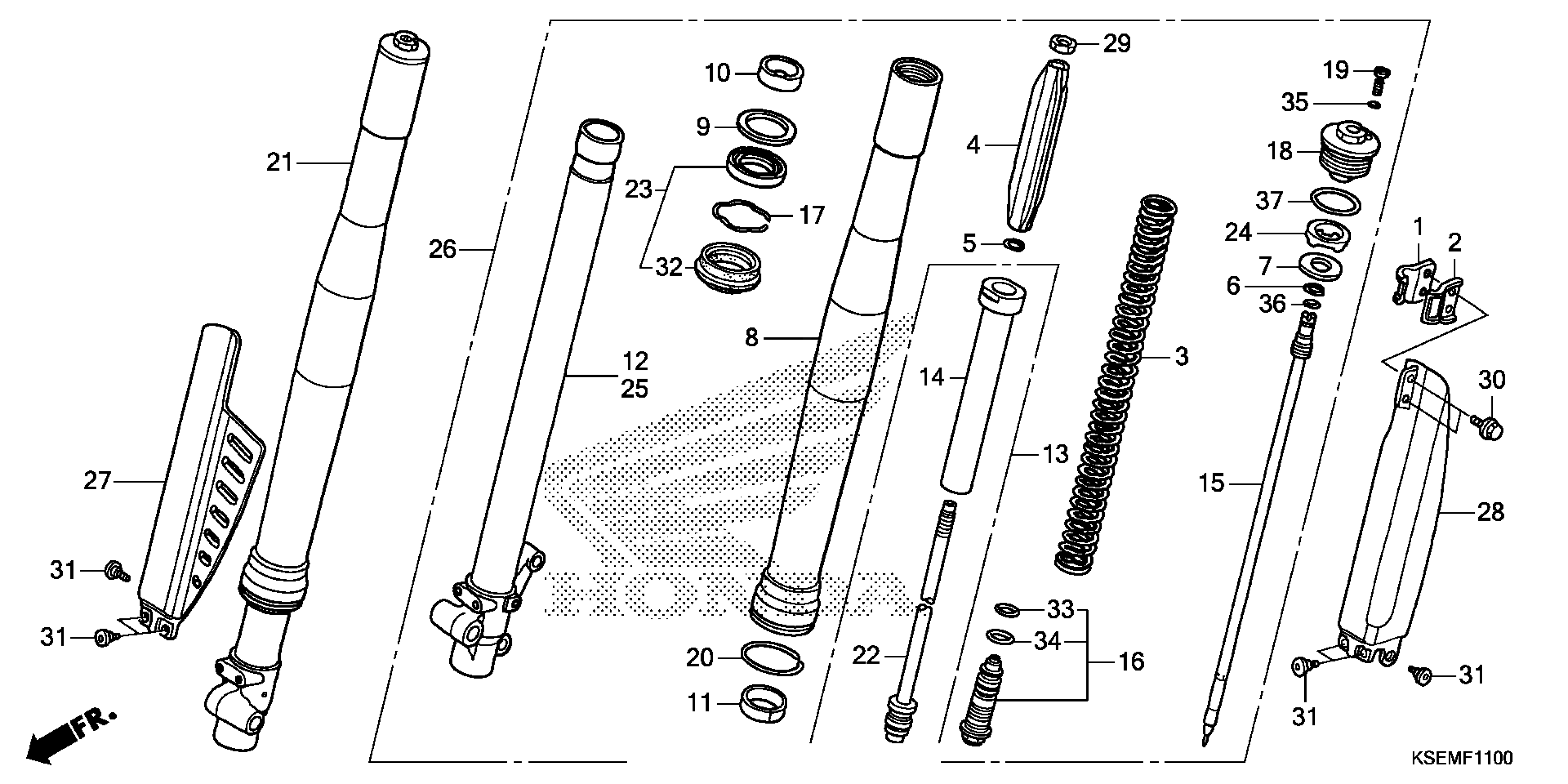

Honda CRF150RBAC (23) MOTORCYCLE, JPN, VIN# JH2KE03C-PK500001 TO JH2KE03C-PK599999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-GBF-J00

$10.73

2

CLAMP B, FR. BRAKE HOSE

45462-GBF-J00

$9.37

3

SPRING, FR. FORK (3.33N/MM,0.34KGF/MM) | (Optional).

51401-KSE-671

$66.61

3

SPRING, FR. FORK (3.53N/MM,0.36KGF/MM)

51401-KSE-841

$69.62

3

SPRING, FR. FORK (3.73N/MM,0.38KGF/MM) | (Optional).

51403-KSE-671

$60.26

4

GUIDE, SPRING

51404-GBF-831

$28.46

5

RING, STOPPER

51405-GBF-831

$4.48

6

RING, STOPPER

51405-MC7-003

$2.39

7

SEAT, SPRING

51408-GBF-831

$4.92

8

TUBE (OUTER) (COO) This part replaces 51410-KSE-841.

51410-KSE-306

$374.34

9

RING, BACK-UP

51412-461-003

$7.04

10

BUSH, GUIDE

51414-KSE-A71

$10.28

11

BUSH, SLIDER

51415-KSE-A71

$8.89

12

PIPE, R. SLIDE

51420-KSE-A71

$284.92

13

DAMPER, FR.

51430-KSE-A71

$174.87

14

DAMPER SUB, FR.

51431-KSE-A71

$124.00

15

NEEDLE, REBOUND

51436-GBF-J01

$30.95

16

BOLT, CENTER (SHOWA)

51441-KSE-N11

$62.13

17

RING, OIL SEAL STOPPER

51447-KR6-003

$3.77

18

BOLT, FR. FORK

51450-GBF-831

$60.94

19

BOLT, PLUG (SHOWA)

51456-KZ3-731

$9.59

20

RING, WEAR

51476-GBF-831

$3.45

21

FORK SUB-ASSY., R. FR. (SHOWA)

51480-KSE-N41

$859.08

22

ROD, PISTON

51481-KSE-A71

$80.13

23

SEAL SET, FR. FORK

51490-GBF-J21

$24.51

24

RUBBER, STOPPER

51517-GBF-831

$6.21

25

PIPE, L. SLIDE

51520-KSE-A71

$284.92

26

FORK SUB-ASSY., L. FR. (SHOWA)

51580-KSE-N41

$859.08

27

PROTECTOR, R. FR. FORK

51610-KSE-N10

$67.54

28

PROTECTOR, L. FR. FORK

51620-KSE-N10

$67.54

29

NUT, HEX. (10MM)

52482-GBF-831

$2.48

30

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

31

BOLT, PROTECTOR

90113-MAC-780

$3.53

32

DUST SEAL

91254-GBF-831

$12.05

33

O-RING (15.5X1.5)

91256-GC5-003

$1.51

34

O-RING (18.8X1.9)

91258-KZ3-B01

$2.72

35

O-RING (2.8X1.9) (SHOWA)

91301-KZ3-731

$2.02

36

O-RING

91310-MJ0-003

$2.61

37

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92
