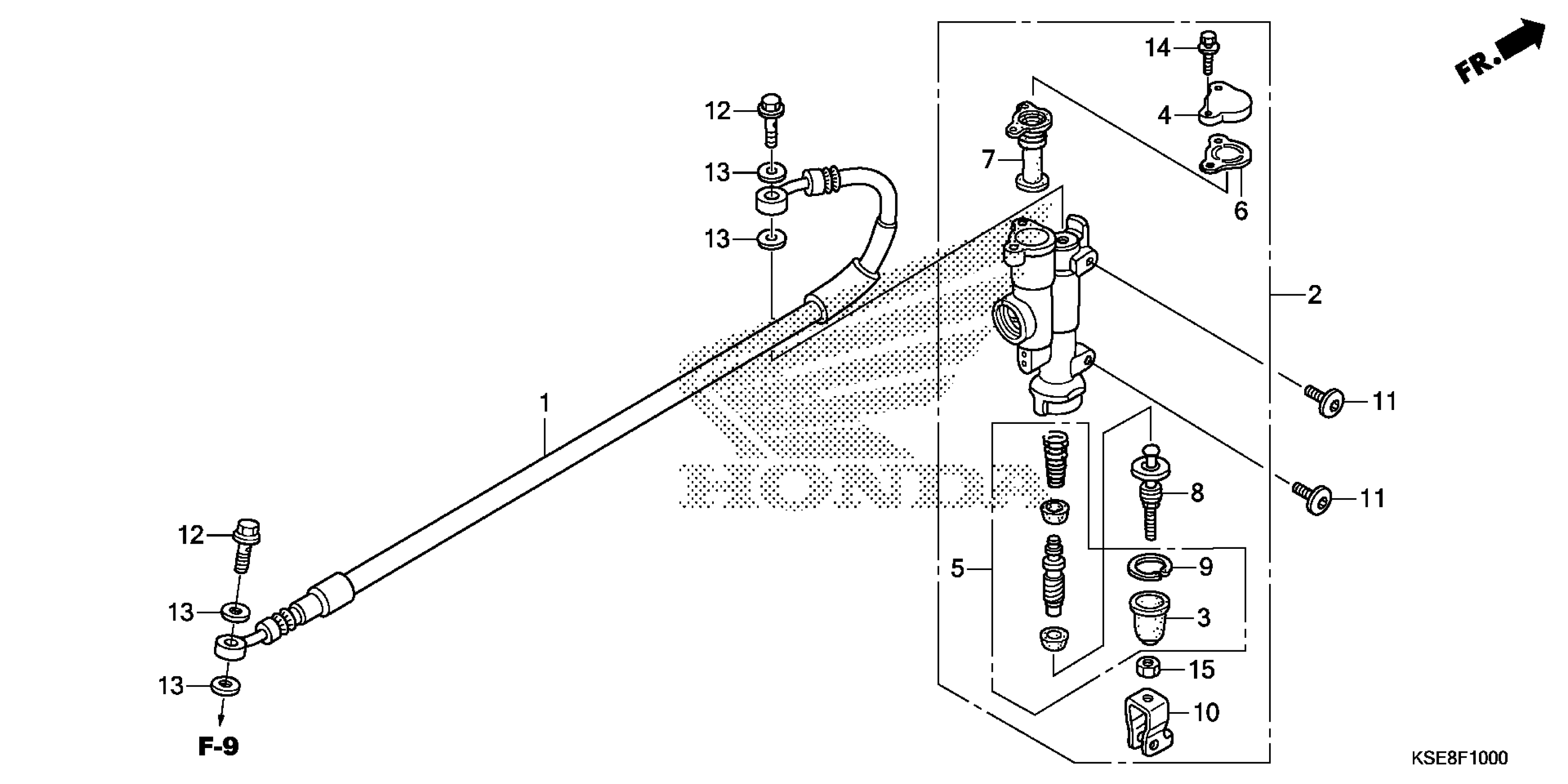

Honda CRF150RBAC (18) MOTORCYCLE, JPN, VIN# JH2KE03C-JK900001 TO JH2KE03C-JK999999 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE (NICHIRIN)

43310-KSE-N41

$48.72

MASTER CYLINDER ASSY., RR. BRAKE This part replaces 43500-KSE-305.

43500-KSE-016

$362.97

MASTER CYLINDER ASSY., RR. BRAKE

43500-KSE-016

$362.97

BOOT

43504-MB2-006

$10.04

CAP, MASTER CYLINDER

43513-KZ4-J41

$4.74

PISTON SET, MASTER CYLINDER

43520-KSE-016

$54.89

PLATE, DIAPHRAGM

43521-KZ4-J41

$4.17

DIAPHRAGM

43522-KZ4-J41

$18.37

ROD, PUSH

43530-KZ4-J41

$22.98

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-KZ4-J41

$5.57

SCREW, PAN (6X12)

90106-KSE-000

$1.97

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT-WASHER (4X16)

93401-04016-00

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49
