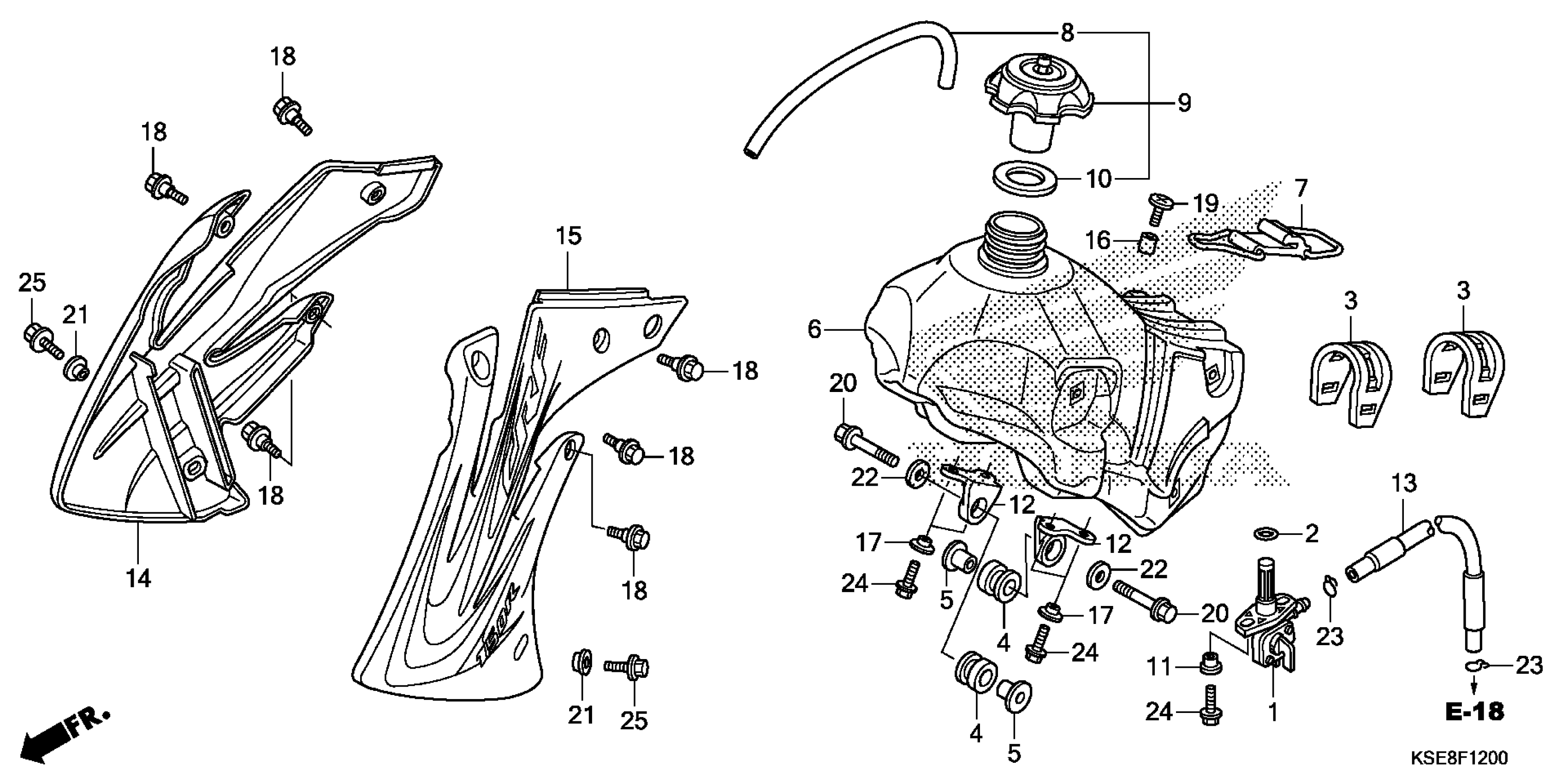

Honda CRF150RBAC (18) MOTORCYCLE, JPN, VIN# JH2KE03C-JK900001 TO JH2KE03C-JK999999 FUEL TANK Diagram

PETCOCK ASSY.

16950-KSE-003

$26.98

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, FUEL TANK SETTING

17506-KZ3-860

$23.82

RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING

17508-GBF-830

$5.90

COLLAR, TANK SET

17509-KSE-000

$6.30

TANK, FUEL

17510-KSE-000

$413.75

BAND, RR. TANK

17516-KT0-670

$30.00

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

CAP ASSY., FUEL TANK

17620-ML3-600

$38.43

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

TUBE, FUEL

17681-KSE-000

$5.28

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-KSE-N00ZA

$129.15

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-KSE-N00ZA

$129.15

COLLAR, BATTERY (LOWER)

83607-356-000

$2.92

COLLAR

84706-415-000

$2.23

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

SCREW, COWL SETTING (LOWER)

90124-MM9-000

$4.08

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

COLLAR A

90501-KZ4-J20

$3.67

WASHER, FENDER MOUNTING

90506-430-000

$2.92

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
