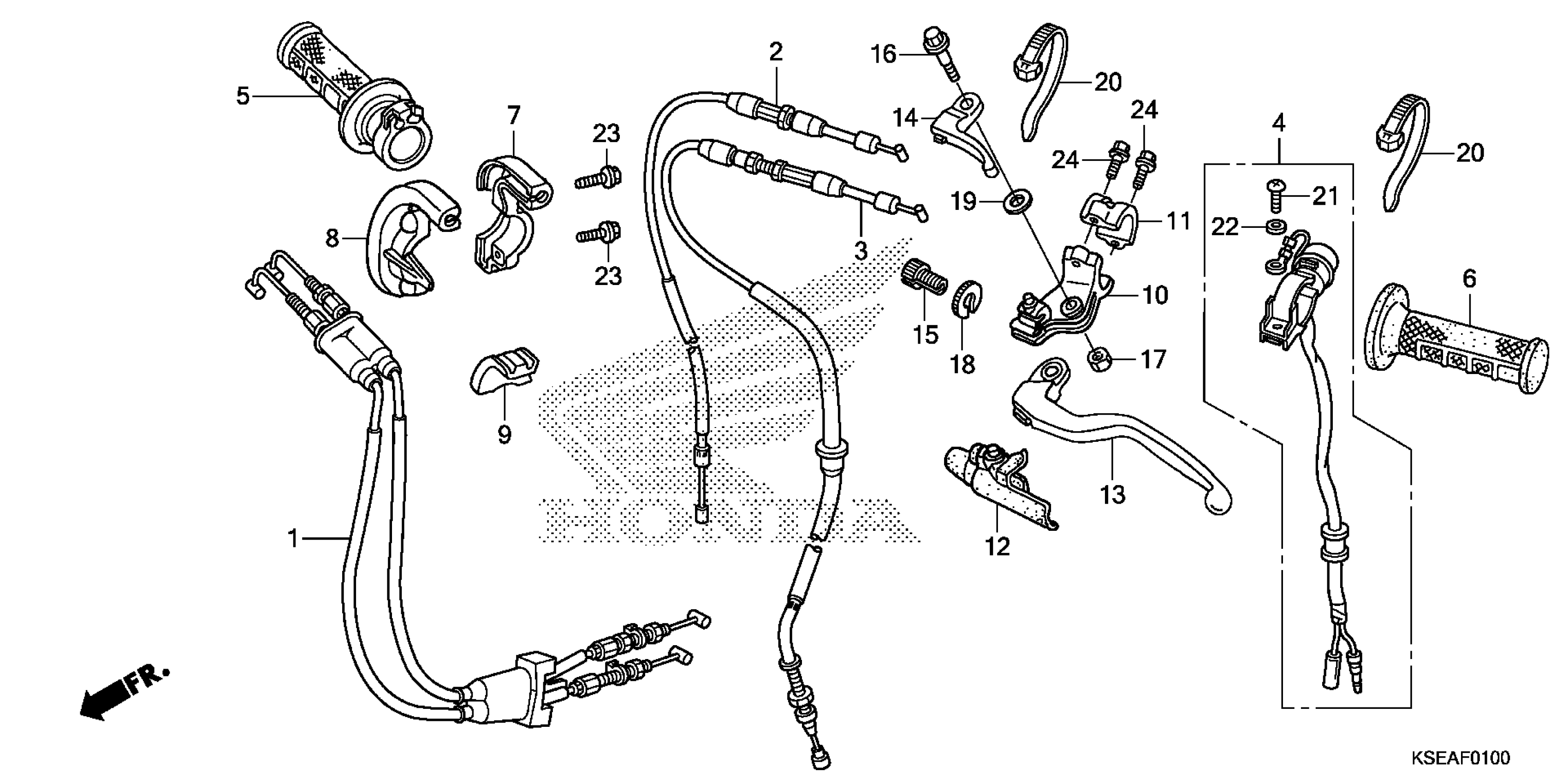

Honda CRF150RBAC (14) CRF150RB, JPN, VIN# JH2KE03C-EK500001 TO JH2KE03C-EK599999 HANDLE LEVER + SWITCH + CABLE Diagram

CABLE, THROTTLE

17900-KSE-710

$36.01

CABLE, HOT STARTER

17950-KSE-000

$21.61

CABLE, CLUTCH

22870-KSE-000

$21.69

SWITCH ASSY., ENGINE STOP

35130-KSE-671

$35.13

GRIP, THROTTLE This part replaces 53140-KSE-305.

53140-KSE-000

$20.32

GRIP, L. HANDLE (COO)

53166-KPT-305

$10.28

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$21.52

HOUSING, THROTTLE (LOWER) | Use up to Frame SN EK500597 This part replaces 53168-MEB-671.

53168-KRN-A90

$29.49

HOUSING, THROTTLE (LOWER)

53168-KRN-A90

$29.49

SLIDER, THROTTLE CABLE

53169-KSE-000

$4.72

BRACKET, L. HANDLE LEVER

53172-MEB-670

$31.47

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

COVER, L. HANDLE LEVER

53177-MEB-670

$13.43

LEVER, L. HANDLEBAR This part replaces 53178-KSE-305.

53178-MAC-740

$19.97

LEVER, HOT STARTER

53190-MEB-670

$20.24

BOLT, CLUTCH WIRE ADJUSTING

53192-203-000

$9.10

BOLT, LEVER PIVOT (NSHF)

90112-MEB-670

$3.08

NUT, U (6MM)

90301-782-000

$1.62

NUT, FIXING

90321-315-670

$7.31

WASHER, PLAIN (7MM)

90501-KV6-670

$1.87

BAND, WIRE (95MM)

90650-KV6-003

$3.12

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
