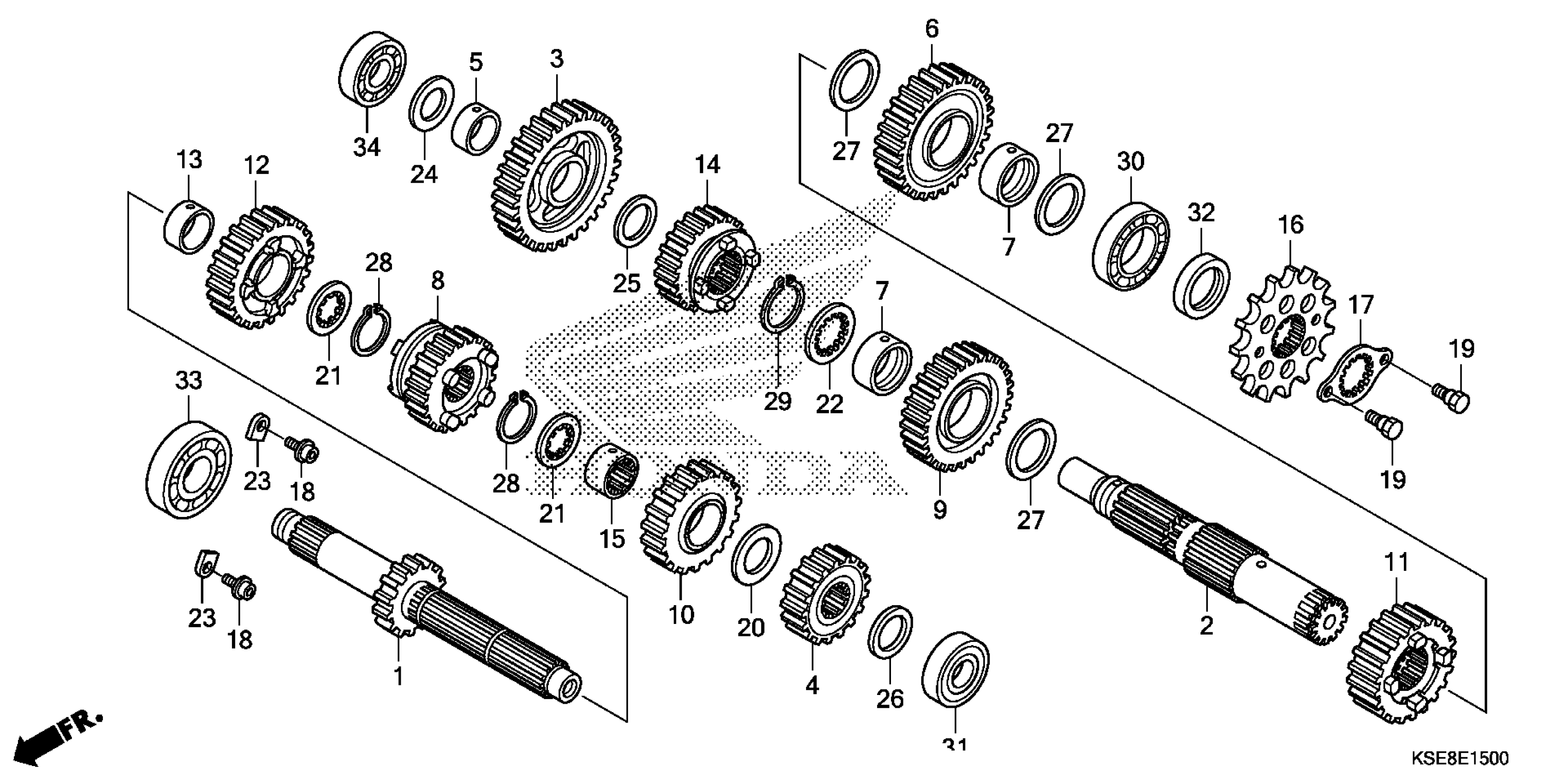

Description

Price

1

MAINSHAFT (14T)

23210-KSE-670

$97.62

2

COUNTERSHAFT

23221-KSE-670

$107.74

3

GEAR, COUNTERSHAFT LOW (31T)

23411-KSE-670

$78.19

4

GEAR, MAINSHAFT SECOND (17T)

23421-KSE-670

$45.38

5

COLLAR (16.5MM)

23422-KSE-670

$6.63

6

GEAR, COUNTERSHAFT SECOND (28T)

23431-KSE-670

$73.12

7

COLLAR (20MM)

23432-KSE-670

$10.19

8

GEAR, MAINSHAFT THIRD (22T)

23441-KSE-670

$79.37

9

GEAR, COUNTERSHAFT THIRD (29T)

23451-KSE-670

$75.54

10

GEAR, MAINSHAFT FOURTH (19T)

23461-KSE-670

$65.46

11

GEAR, COUNTERSHAFT FOURTH (21T)

23471-KSE-670

$74.37

12

GEAR, MAINSHAFT FIFTH (23T)

23481-KSE-A70

$64.51

13

COLLAR (18MM)

23483-KSE-670

$7.57

14

GEAR, COUNTERSHAFT FIFTH (22T)

23491-KSE-670

$79.37

15

COLLAR, SPLINE (18X11.7)

23512-KSE-670

$6.79

16

SPROCKET, DRIVE (15T)

23801-KSE-670

$25.14

17

PLATE, DRIVE SPROCKET FIXING

23802-KSE-670

$7.12

18

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.19

19

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.41

20

WASHER, THRUST (18MM)

90401-KCZ-000

$1.74

21

WASHER, THRUST INVOLUTE (18X23X1.6)

90401-KSE-670

$1.91

22

WASHER, THRUST INVOLUTE (20X26X1)

90403-KSE-670

$1.91

23

PLATE, BEARING HOLDER

90441-KRM-840

$0.56

24

WASHER, THRUST (15MM)

90451-107-000

$1.32

25

WASHER, THRUST (16.5MM)

90452-437-000

$3.25

26

WASHER, THRUST (15X1)

90457-HB3-000

$2.80

27

WASHER, THRUST (27X20X1.0)

90554-728-940

$5.80

28

CIRCLIP (18MM)

90601-030-000

$1.63

29

CIRCLIP (OUTER) (20MM)

90601-459-000

$2.80

30

BEARING, RADIAL BALL (6905U)

91004-KY4-900

$21.00

30

BEARING, RADIAL BALL (20X47X10.5)

91004-MT3-003

$17.57

31

BEARING, RADIAL BALL (6002U)

91008-KSE-671

$11.51

32

OIL SEAL (20X30X7)

91202-KCY-761

$5.45

33

BEARING, RADIAL BALL (6203)

96120-62030-00

$16.25

34

BEARING, RADIAL BALL (6202U)

96140-62020

$12.52

34

BEARING, RADIAL BALL (6202U) This part replaces 96140-62020-00.
