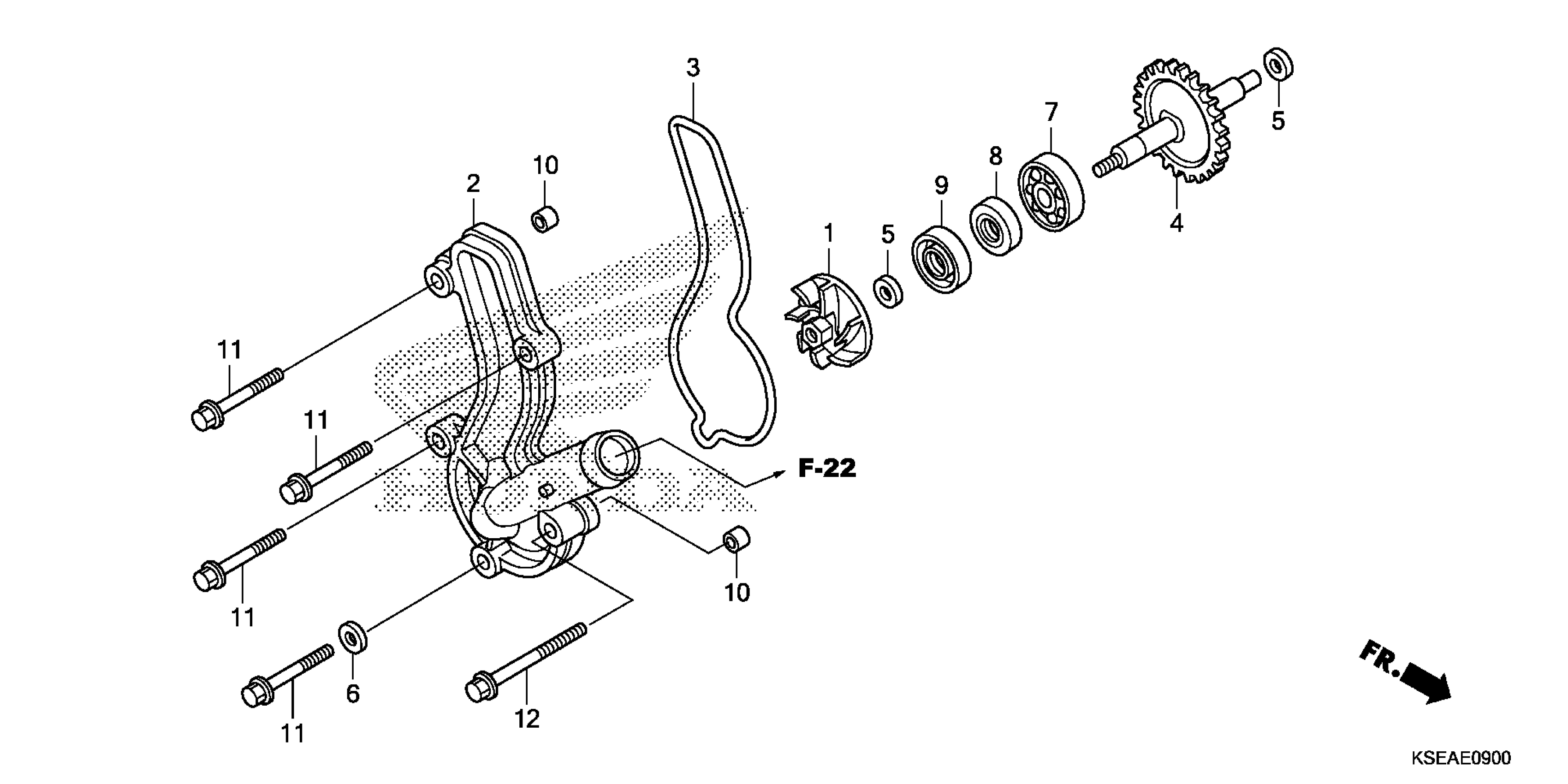

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KSE-670

$42.28

COVER, WATER PUMP

19221-KSE-670

$78.30

GASKET, WATER PUMP

19226-KSE-670

$5.10

GEAR, WATER PUMP (24T)

19240-KSE-670

$108.03

WASHER, SEALING (7MM)

90447-KE1-000

$2.42

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$15.33

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

OIL SEAL (12X22X5)

91201-965-000

$3.77

SEAL, WATER PUMP

91211-KSE-671

$4.36

PIN, DOWEL (8X7)

91320-KE1-000

$2.03

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35)

96001-06035-00

$1.28
