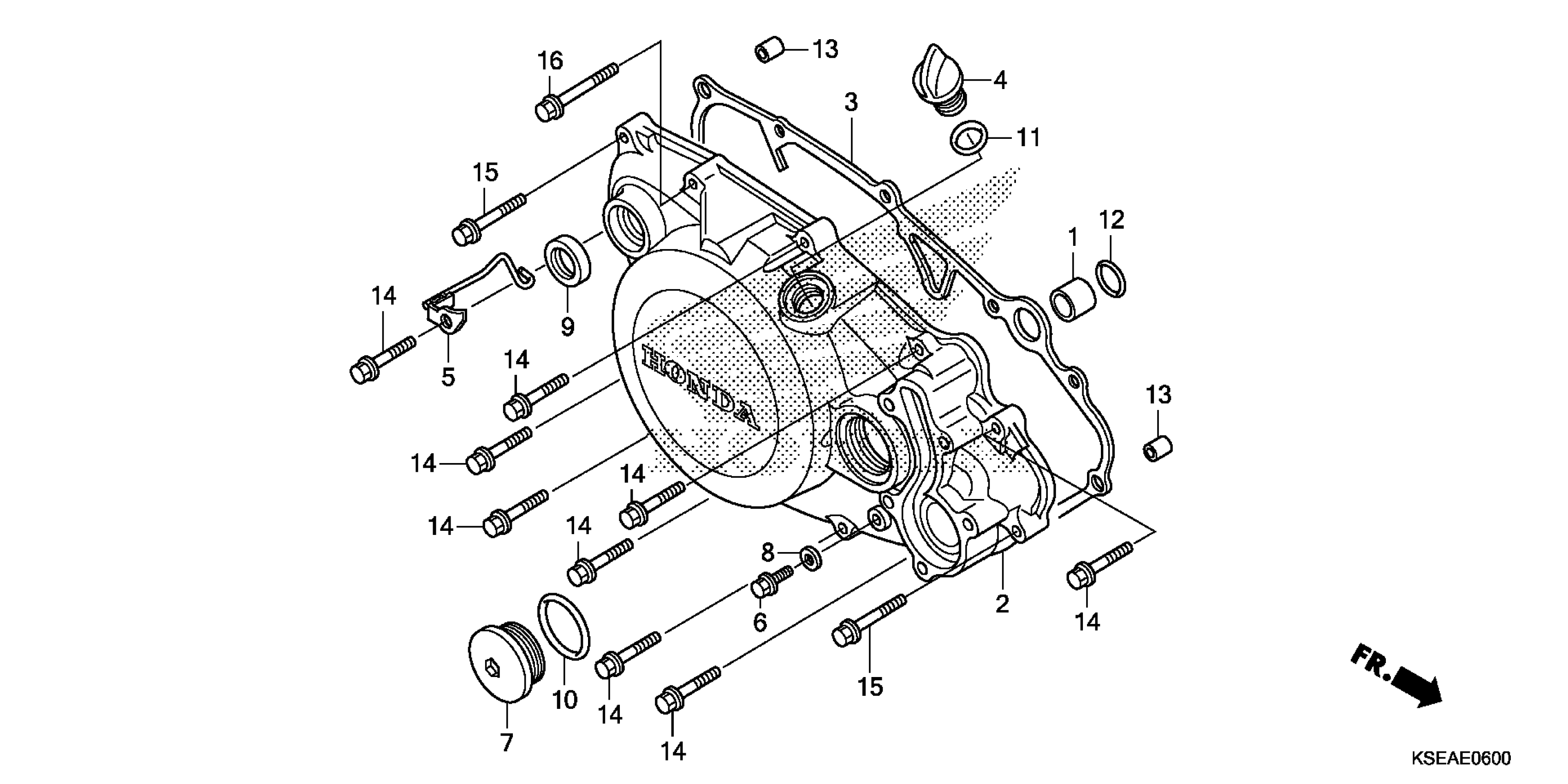

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 RIGHT CRANKCASE COVER Diagram

COLLAR, WATER PASS (14MM)

11102-KSE-670

$2.92

COVER, R. CRANKCASE

11331-KSE-670

$176.87

GASKET, R. COVER This part replaces 11394-KSE-671.

11394-KSE-672

$22.45

CAP, OIL FILLER

15611-KA4-710

$14.40

CLAMP, AIR VENT TUBE

16240-KSE-670

$8.77

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.42

CAP (30MM)

90087-MN1-670

$9.04

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
