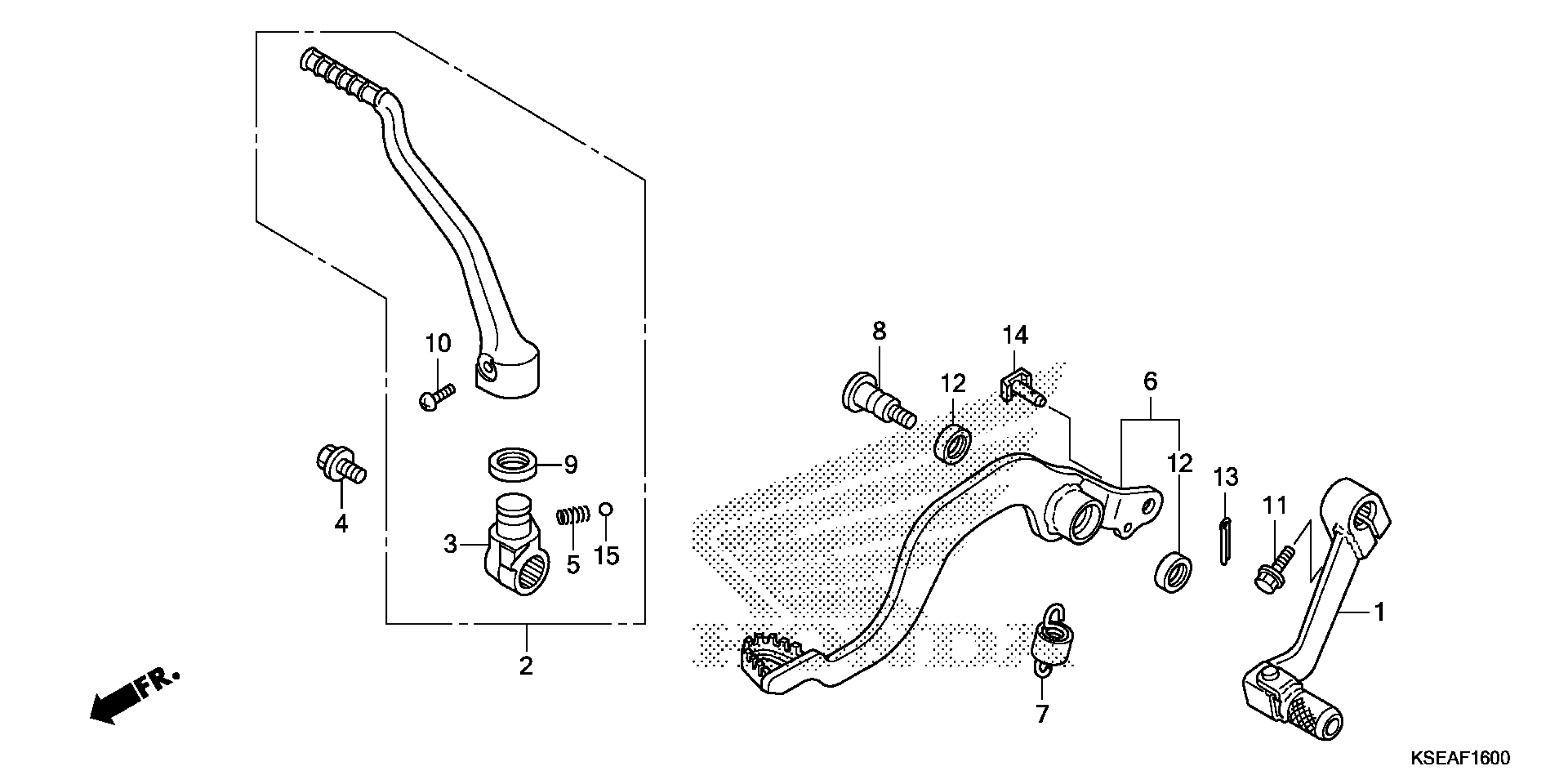

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 PEDAL + KICK STARTER ARM Diagram

#

Description

Price

1

PEDAL, CHANGE This part replaces 24700-KSE-305.

24700-KSE-000

$77.22

2

ARM ASSY., KICK STARTER This part replaces 28300-KSE-305.

28300-KSE-000

$109.32

3

JOINT, KICK ARM

28302-KSE-000

$64.78

4

BOLT, KICK JOINT

28306-KAE-000

$10.91

5

SPRING, KICK STARTER

28333-KK0-000

$2.32

6

PEDAL, BRAKE This part replaces 46510-KSE-306.

46510-KSE-010

$55.62

7

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

8

SHAFT, BRAKE PIVOT

46513-KSR-710

$13.37

9

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.83

10

BOLT, KICK ARM (6X25)

90103-KSE-000

$1.97

11

BOLT, FLANGE (6X20)

90118-968-000

$4.04

12

DUST SEAL (15X20X2.5)

91251-444-000

$4.13

13

PIN, SPLIT (2.0X12)

94201-20120

$1.04

14

PIN D, JOINT

95015-54000

$4.05

15

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
