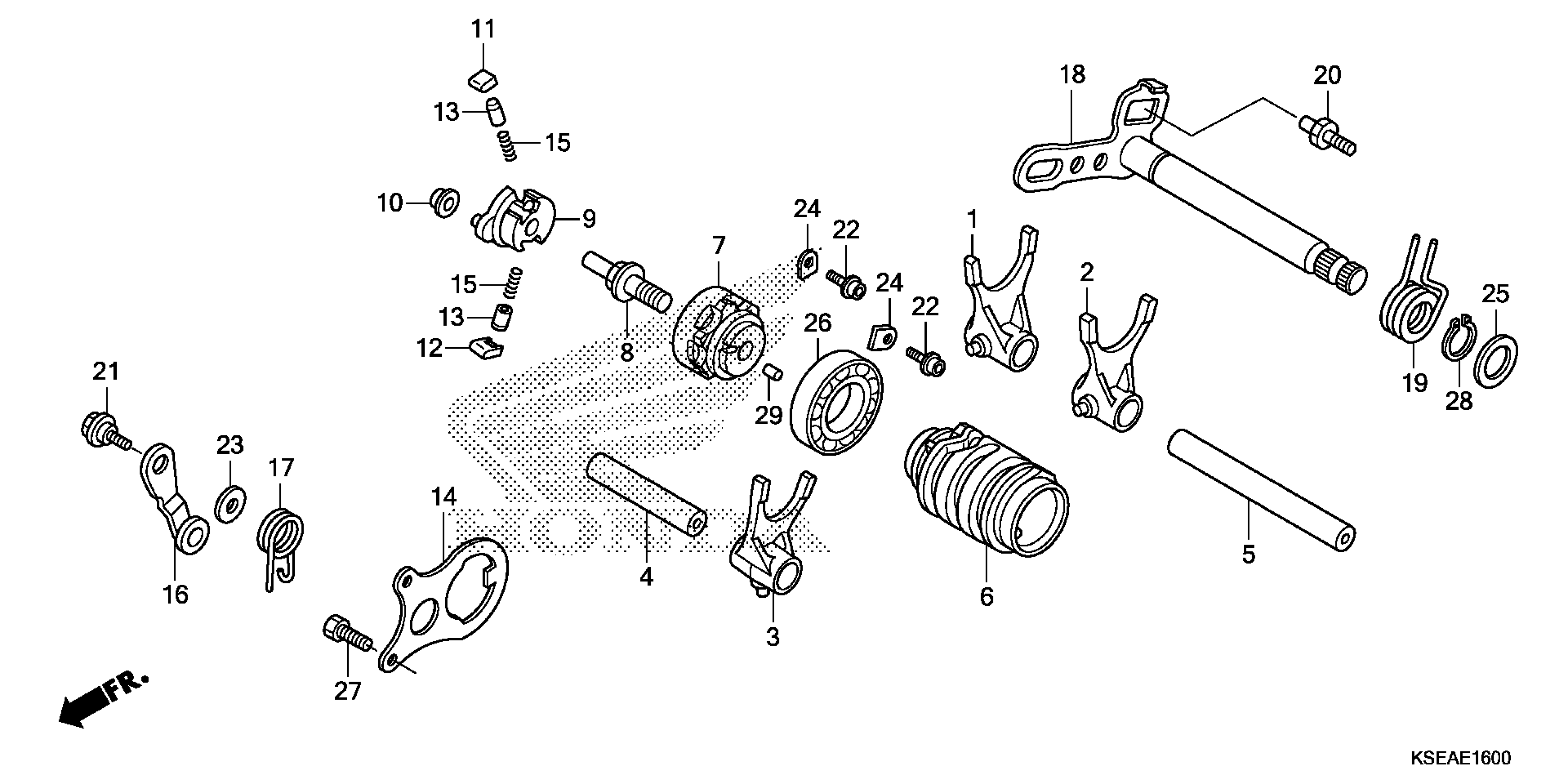

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-KSE-670

$60.34

FORK, L. GEARSHIFT

24212-KSE-670

$60.34

FORK, CENTER GEARSHIFT

24213-KSE-670

$56.90

SHAFT, GEARSHIFT FORK MAIN

24265-GC4-710

$19.26

SHAFT C, SHIFT FORK

24266-KSE-670

$15.15

DRUM, GEARSHIFT

24311-KSE-670

$72.51

CENTER, GEARSHIFT DRUM

24312-KA3-741

$64.75

PIN, SHIFTER

24315-KA3-710

$21.03

SHIFTER, GEARSHIFT DRUM

24321-KZ3-891

$53.92

COLLAR, SHIFTER

24322-MM4-000

$5.12

PAWL A, RATCHET

24324-KA3-711

$13.21

PAWL B, RATCHET

24325-KA3-711

$13.21

PLUNGER, PAWL

24326-KBH-901

$5.81

PLATE, GUIDE

24328-GC4-730

$19.57

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

STOPPER, DRUM

24430-KA3-740

$21.88

SPRING, DRUM STOPPER

24435-KSE-670

$2.84

SPINDLE, GEARSHIFT

24610-KSE-670

$72.69

SPRING, SHIFT RETURN

24651-KSE-670

$6.21

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

WASHER (6.1MM)

90435-HB3-000

$2.92

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

WASHER (14MM)

90451-155-000

$3.78

BEARING, RADIAL BALL (6905U)

91004-KY4-900

$22.87

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

ROLLER (4X8)

96220-40080

$1.49
