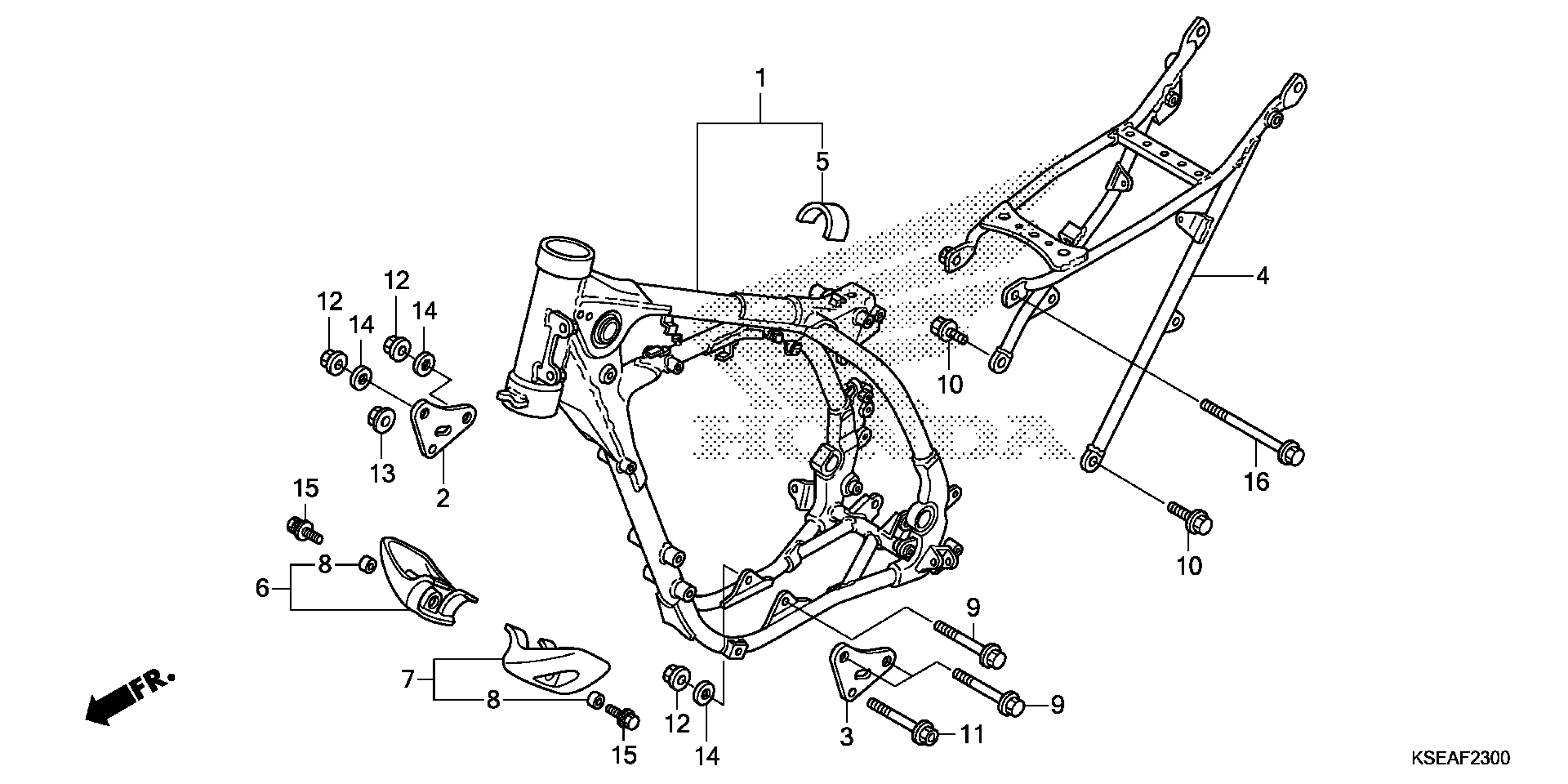

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 FRAME Diagram

FRAME SET, FR.

50020-KSE-000

$618.15

HANGER, R. FR.

50131-KSE-000

$7.15

HANGER, L. FR.

50132-KSE-000

$7.15

FRAME, RR. *NH146M* (ACCURATE SILVER METALLIC) | Extreme red R292R;

50200-KSE-000ZA

$287.07

RUBBER, TANK

50226-KSE-000

$2.62

GUARD, L. ENGINE (R. SIDE)

50360-KRN-000

$12.34

GUARD, R. ENGINE (L. SIDE)

50370-KSC-000

$8.55

COLLAR (6X4)

52156-353-300

$6.04

BOLT, FLANGE (10X90)

90102-KSE-000

$4.28

BOLT, JOINT (8X19)

90108-KA3-710

$3.31

BOLT, FLANGE (8X87)

90113-KT0-670

$5.53

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.51

NUT, HEX. (8MM)

90309-357-000

$3.25

WASHER (10MM)

90410-HC4-000

$3.65

BOLT-WASHER (6X14)

93404-06014-00

$0.87

BOLT, FLANGE (8X105)

95801-08105-00

$2.38
