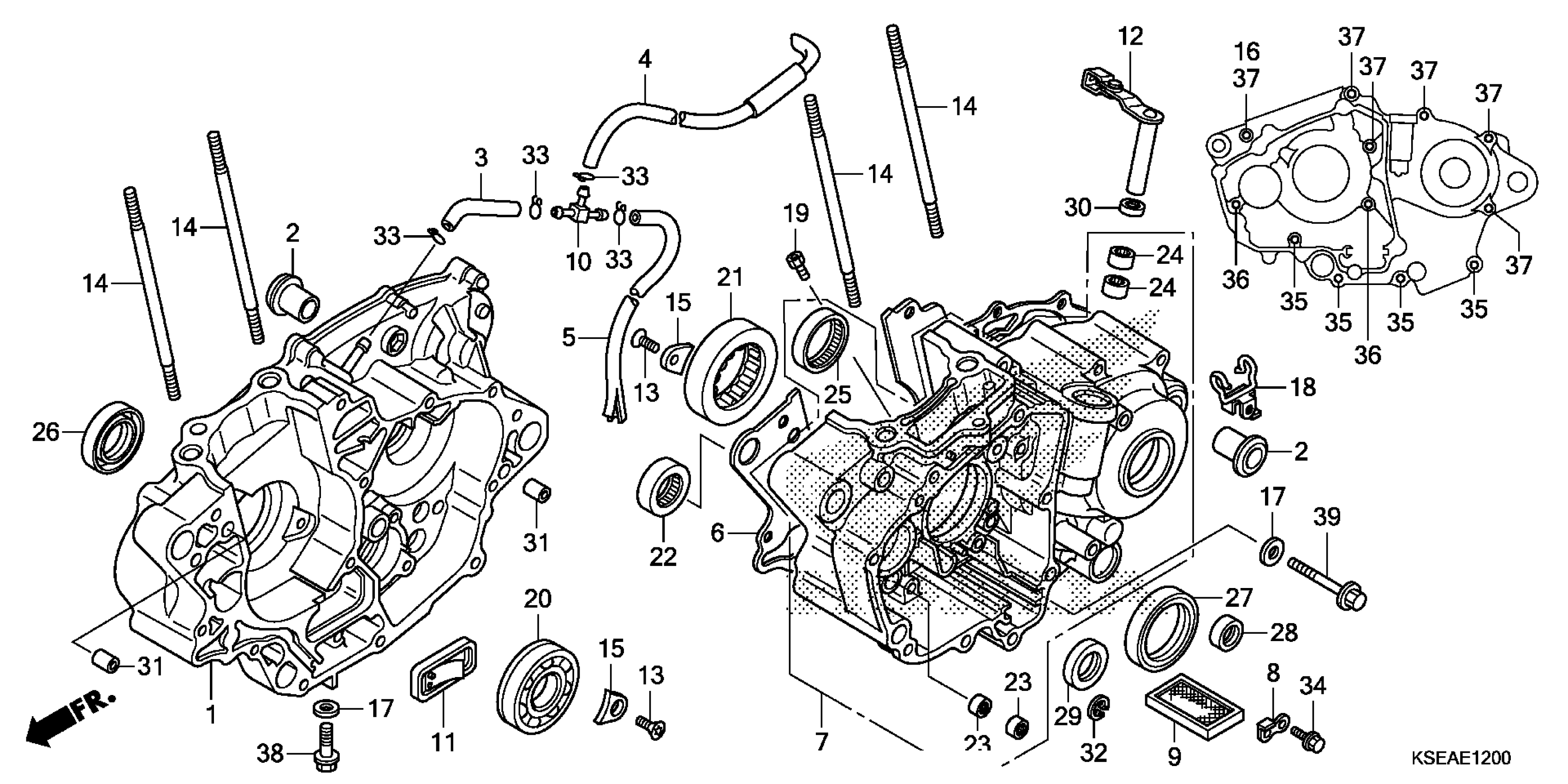

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 CRANKCASE Diagram

CRANKCASE, R.

11100-KSE-670

$316.35

COLLAR, ENGINE HANGER

11104-KSE-670

$7.76

TUBE A, BREATHER

11105-KSE-670

$2.85

TUBE B, BREATHER

11106-KSE-670

$10.04

TUBE C, BREATHER

11107-KSE-670

$5.91

GASKET, CRANKCASE This part replaces 11191-KSE-671.

11191-KSE-672

$15.76

CRANKCASE, L.

11200-KSE-A70

$325.71

PLATE, CAM CHAIN GUIDE

11206-KRN-670

$3.00

SCREEN, OIL FILTER

15421-KK0-000

$7.36

JOINT, THREE WAY

16961-MCT-010

$11.37

VALVE, REED

18601-MBW-003

$15.74

LEVER, CLUTCH LIFTER

22810-KSE-670

$33.42

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.66

BOLT, STUD (9X116)

90031-KSE-600

$3.69

PLATE, BEARING HOLDER

90441-KRN-670

$2.80

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

WASHER, SEALING (8MM)

90474-333-000

$4.15

GUIDE, TUBE

90610-MEB-670

$10.80

JET, OIL (#80)

90901-MCF-000

$11.01

BEARING, SPECIAL RADIAL BALL (63/22) (NTN)

91001-KSE-671

$19.13

BEARING, SPECIAL ROLLER (NTN)

91002-KSE-671

$39.63

BEARING, ROLLER (18X29X14) (NTN)

91004-KSE-671

$13.06

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$12.24

BEARING, NEEDLE (1010) (NTN)

91021-148-004

$22.74

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$16.41

OIL SEAL (32X48X7.5) (ARAI)

91201-KSE-671

$14.79

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$12.07

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

OIL SEAL (18X30X5) (ARAI)

91203-KSE-671

$5.37

OIL SEAL (10X17X3) (NOK)

91204-KSE-671

$3.72

PIN, DOWEL (8X14)

94301-08140

$2.76

CIRCLIP (INNER) (30MM)

94520-30100

$1.25

CLIP, TUBE (B10)

95002-02100

$1.75

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

BOLT, FLANGE (6X45)

96001-06045-00

$1.81

BOLT, FLANGE (6X55)

96001-06055-00

Unavailable

BOLT, FLANGE (6X70)

96001-06070-00

$1.81

BOLT, FLANGE (8X35)

96300-08035-00

$1.81

BOLT, FLANGE (8X80)

96300-08080-00

$1.88
