Description

Price

1

GEAR, BALANCER DRIVE (32T)

13415-KSE-670

$80.34

2

CLUTCH OUTER

22100-KSE-A70

$237.38

3

CENTER, CLUTCH

22120-KSE-670

$65.46

4

DISK, CLUTCH FRICTION

22201-GBF-B40

$11.53

5

PLATE, CLUTCH

22321-KSE-670

$11.32

6

PLATE, CLUTCH PRESSURE

22351-KSE-670

$46.49

7

PIECE, CLUTCH LIFTER

22352-KSE-670

$25.72

8

SPRING, CLUTCH

22401-KSE-670

$4.76

9

ROD, CLUTCH LIFTER

22851-KSE-670

$28.90

10

GEAR, PRIMARY DRIVE (17T)

23121-KSE-670

$57.41

11

COLLAR, CLUTCH (OUTER)

28242-KSE-670

$14.18

12

BOLT, SPECIAL (10X24)

90013-KSE-670

$6.26

13

BOLT-WASHER (6X25)

90022-MBG-D00

$1.54

14

NUT (14MM)

90302-KSE-670

$4.97

15

WASHER, PLAIN (10MM)

90402-KSE-670

$4.93

16

WASHER, THRUST (17MM)

90407-KSE-670

$4.87

17

WASHER, THRUST (10X24X1)

90445-KSE-671

$2.07

18

WASHER, THRUST (14MM)

90451-KSE-670

$4.10

19

WASHER, LOCK

90461-KSE-670

$2.15

20

BEARING, NEEDLE (12MM)

91006-KSE-671

$6.48

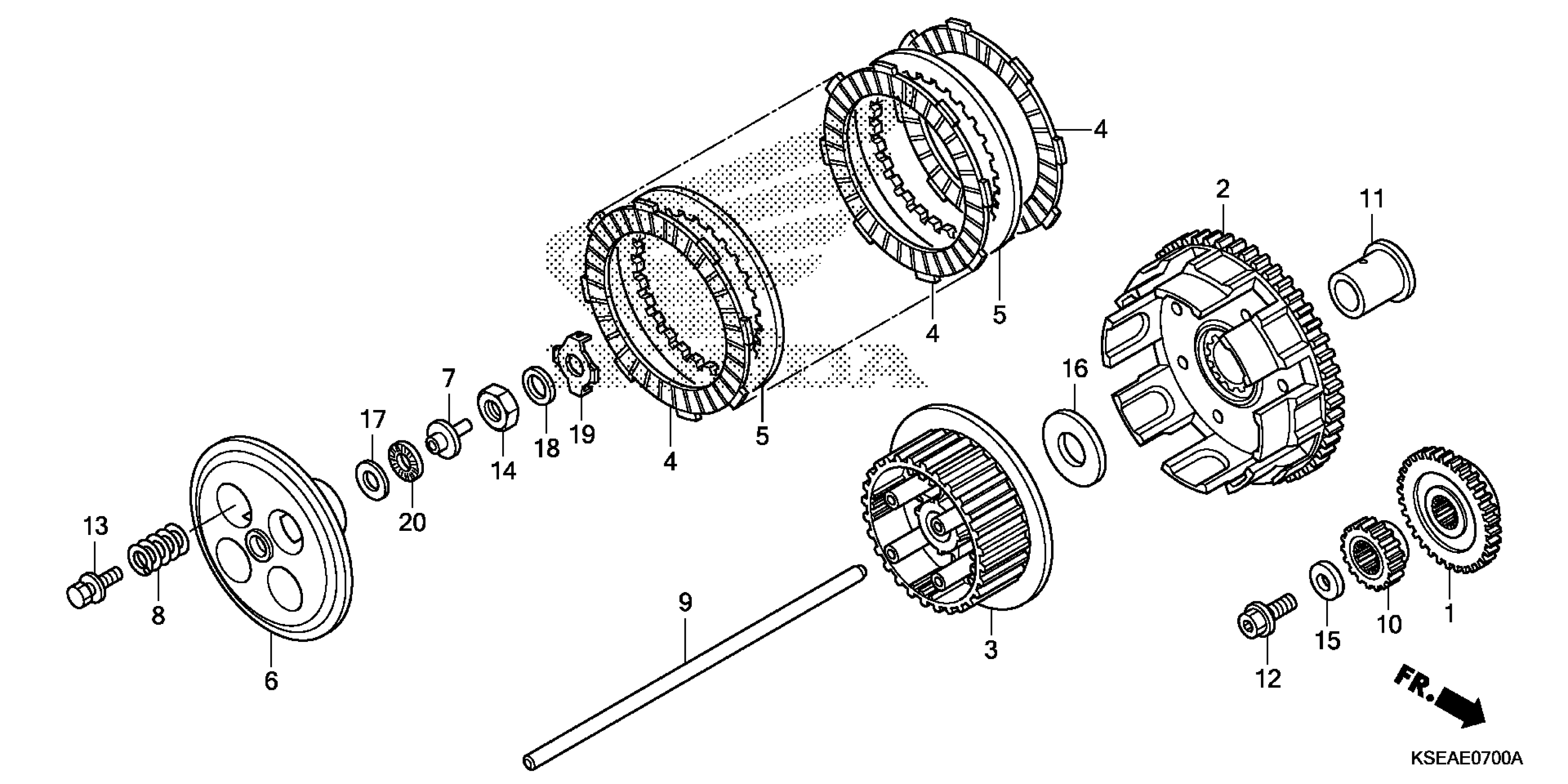

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 CLUTCH Diagram
