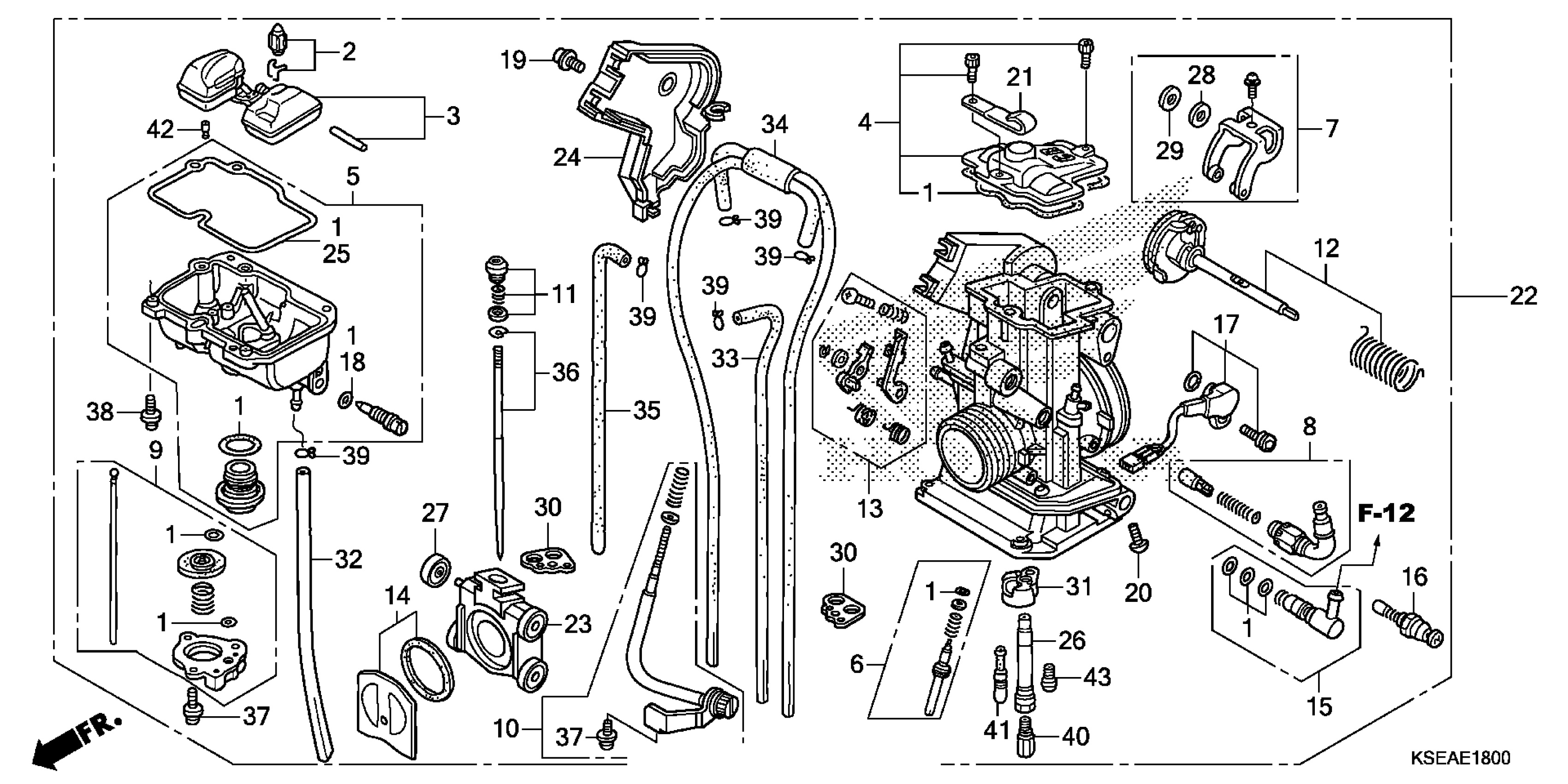

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-MEN-851

$26.27

2

VALVE SET, FLOAT

16011-KSE-671

$18.46

3

FLOAT SET

16013-MEB-671

$30.28

4

TOP SET

16014-KSE-671

$41.95

5

CHAMBER SET, FLOAT

16015-KSC-A11

$84.49

6

SCREW SET A

16016-KSE-601

$29.50

7

ARM SET, LINK

16018-MEY-A11

$17.03

8

START SET, HOT

16019-MEB-671

$29.28

9

PUMP SET, DIAPHRAGM

16021-KSE-A71

$58.25

10

SCREW SET B

16028-KSE-A71

$42.08

11

SCREW SET, JET NEEDLE

16029-MEY-A11

$12.71

12

SHAFT SET, THROTTLE

16032-KSE-A71

$87.82

13

LEVER SET, PUMP

16033-KSE-A71

$28.49

14

VALVE SET, FLOATING

16037-KSE-671

$139.70

15

JOINT SET, FUEL

16038-MEB-671

$7.93

16

VALVE SET, STARTER

16046-MEB-671

$29.33

17

SENSOR ASSY., THROTTLE

16060-KSE-671

$119.95

18

O-RING (1.3X4.3)

16076-ND5-004

$2.56

19

BOLT, COVER

16080-HP1-601

$4.07

20

SCREW, PAN

16083-MEB-671

$1.51

21

CLIP

16088-MEN-731

$7.51

22

CARBURETOR ASSY. (FCR08D A)

16100-KSE-A72

$1,162.46

23

VALVE, THROTTLE

16112-KSE-601

$246.07

24

COVER, THROTTLE

16157-MEN-A01

$25.22

25

GASKET, FLOAT CHAMBER

16163-MEB-671

$13.13

26

HOLDER, NEEDLE JET

16165-MEY-A11

$15.29

27

ROLLER

16172-MEB-671

$7.72

28

WASHER, PLAIN (PO)

16177-MEB-671

$1.57

29

WASHER, PLAIN (SUS)

16178-MEB-671

$1.49

30

BINDER

16178-MEN-851

$5.25

31

PLATE, BUFFER

16185-MEN-671

$11.26

32

TUBE, OVERFLOW

16196-KSE-E31

$12.15

33

TUBE, AIR VENT

16197-MEB-671

$6.34

34

TUBE, AIR VENT

16198-KSE-671

$12.33

35

TUBE, AIR VENT

16199-MEB-671

$6.34

36

NEEDLE SET, JET (NMQT)

16204-KSE-601

$31.30

37

SCREW-WASHER (4X8)

93892-04008-08

$1.49

37

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

38

SCREW-WASHER (4X14)

93892-04014-08

$1.49

38

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

39

CLIP, TUBE (B7)

95002-02079

$1.49

40

JET, MAIN (#140)

99101-357-1400

$8.55

41

JET, SLOW (#38) This part replaces 99103-KA3-0380.

99103-KBA-0380

$13.18

41

JET, SLOW (#38)

99103-KBA-0380

$13.18

41

JET, SLOW (#38) This part replaces 99103-440-0380.

99103-KBA-0380

$13.18

42

JET, LEAK (#70) | (Optional).

99108-KRN-0700

$12.87

42

JET, LEAK (#75) | (Optional).

99108-KRN-0750

$12.80

42

JET, LEAK (#65)

99108-KSC-0650

$8.07

42

JET, LEAK (#60) | (Optional).

99108-KSE-0600

$8.34

42

JET, LEAK (#55) | (Optional).

99108-MEB-0550

$9.54

43

JET, BY-STARTER (#68)

99112-KRN-0680

$12.08
