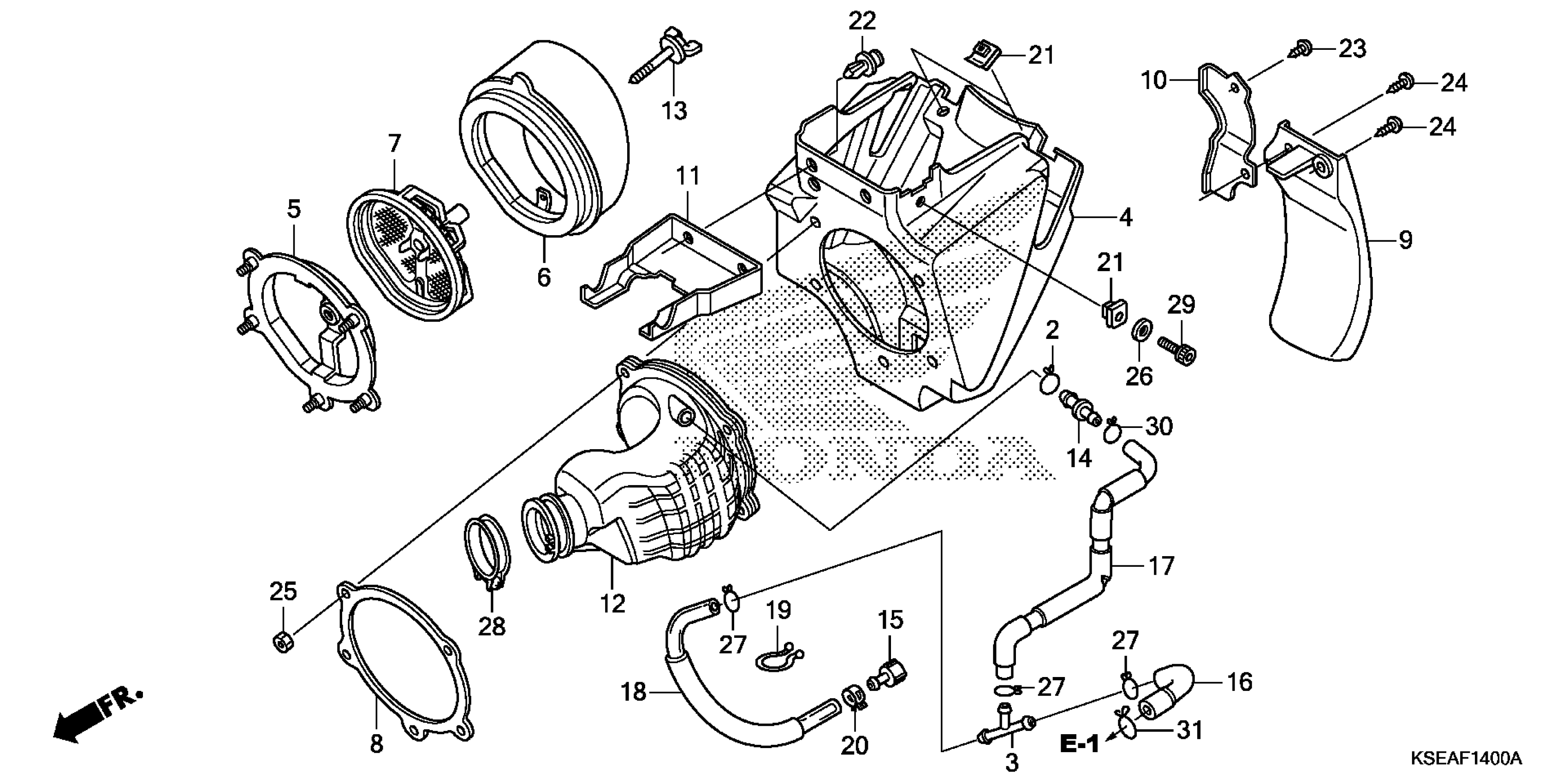

Honda CRF150RAC (16) CRF150R, JPN, VIN# JH2KE033-GK700001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$4.78

2

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48

3

JOINT, FUEL TUBE

16959-MY1-000

$15.97

4

HOUSING, AIR CLEANER

17210-KSE-000

$171.51

5

STAY, AIR CLEANER ELEMENT

17212-KSE-000

$53.19

6

ELEMENT, AIR CLEANER

17213-KSE-000

$36.46

7

BASE ASSY., ELEMENT

17214-KSE-000

$35.14

8

PLATE, FR. CASE

17217-KSE-000

$13.46

9

SPLASH GUARD, AIR CLEANER

17220-KSE-000

$29.09

10

GUARD, AIR CLEANER

17221-KSE-000

$4.48

11

VISOR, AIR CLEANER HOUSING

17223-KSE-000

$6.22

12

TUBE, AIR CLEANER CONNECTING

17253-KSE-000

$46.75

13

BOLT, ELEMENT SETTING

17291-GBF-830

$12.58

14

JOINT, BREATHER TUBE

17359-MAG-L00

$4.90

15

PLUG, BREATHER TUBE

17370-419-700

$3.49

16

TUBE A, BREATHER

17372-KSE-000

$6.91

17

TUBE B, BREATHER

17373-KSE-000

$23.39

18

TUBE C, BREATHER

17375-KSE-000

$8.04

19

LOCK, PURSE

32171-GF9-621

$1.94

20

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

21

NUT, FENDER SETTING

84601-HA7-670

$5.15

22

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

23

SCREW, TAPPING (5X12) (PO)

93913-15280

$0.83

24

SCREW, TAPPING (5X16) (PO)

93913-15410

$1.03

25

NUT, HEX. (5MM)

94002-05000-0S

$0.94

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

CLIP, TUBE (B12)

95002-02120

Unavailable

28

BAND, AIR CLEANER CONNECTING TUBE (52)

95018-52201

$6.41

29

BOLT, SOCKET (6X14)

96600-06014-00

$3.59

30

CLIP, OIL DRAIN TUBE

15707-634-000

$4.78

31

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48
