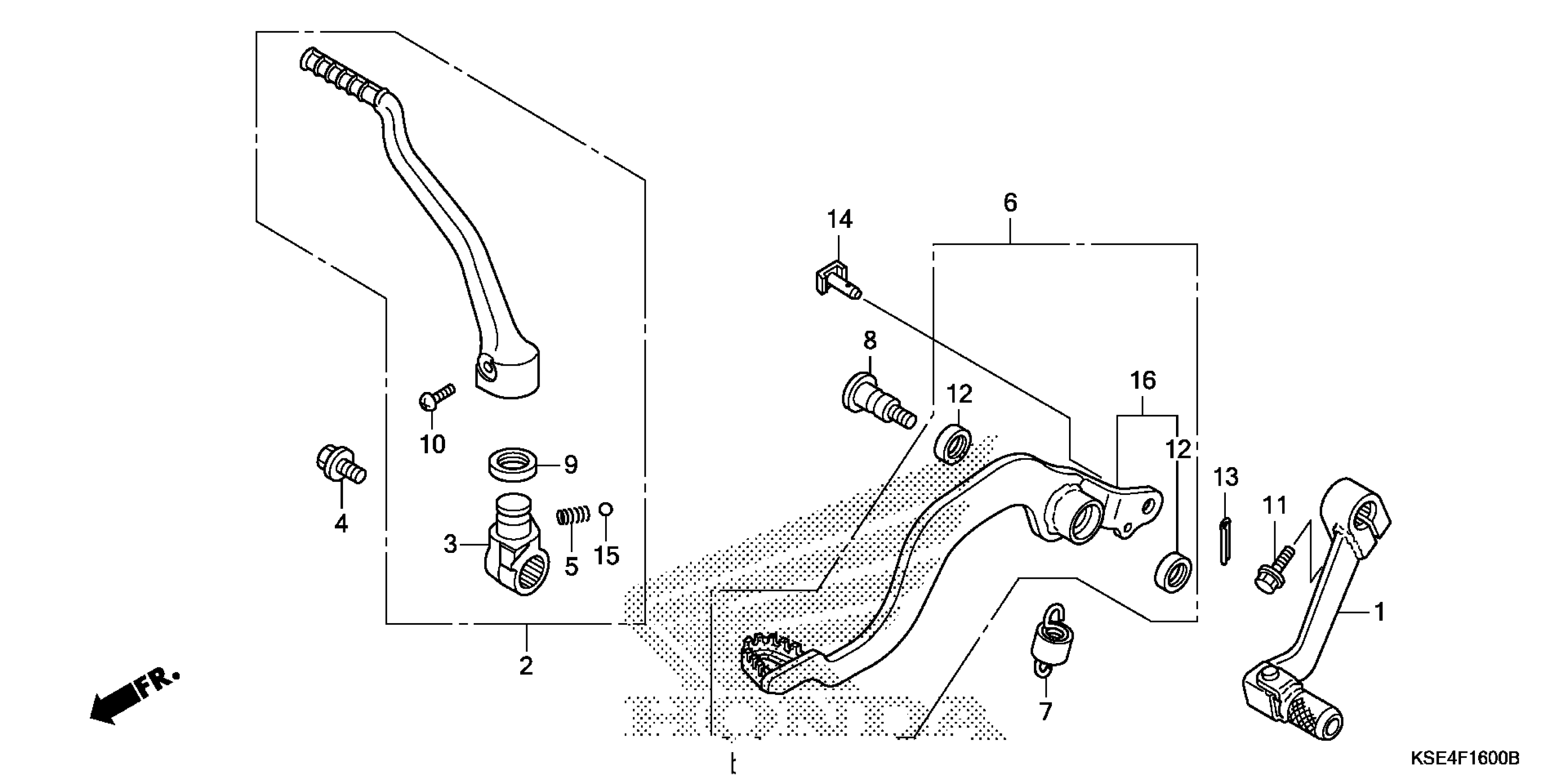

Honda CRF150RA (12) CRF150R, JPN, VIN# JH2KE033-CK300001 PEDAL + KICK STARTER ARM Diagram

PEDAL, CHANGE

24700-KSE-000

$77.22

PEDAL, CHANGE This part replaces 24700-KSE-305.

24700-KSE-000

$77.22

ARM ASSY., KICK STARTER

28300-KSE-000

$109.32

ARM ASSY., KICK STARTER This part replaces 28300-KSE-305.

28300-KSE-000

$109.32

JOINT, KICK ARM

28302-KSE-000

$64.78

BOLT, KICK JOINT

28306-KAE-000

$10.91

SPRING, KICK STARTER

28333-KK0-000

$2.32

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

SHAFT, BRAKE PIVOT

46513-KSR-710

$13.37

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.83

BOLT, KICK ARM (6X25)

90103-KSE-000

$1.97

BOLT, FLANGE (6X20)

90118-968-000

$4.04

DUST SEAL (15X20X2.5)

91251-444-000

$4.13

PIN, SPLIT (2.0X12)

94201-20120

$1.04

PIN D, JOINT

95015-54000

$4.05

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable

PEDAL, BRAKE This part replaces 46510-KSE-306.

46510-KSE-010

$55.62
