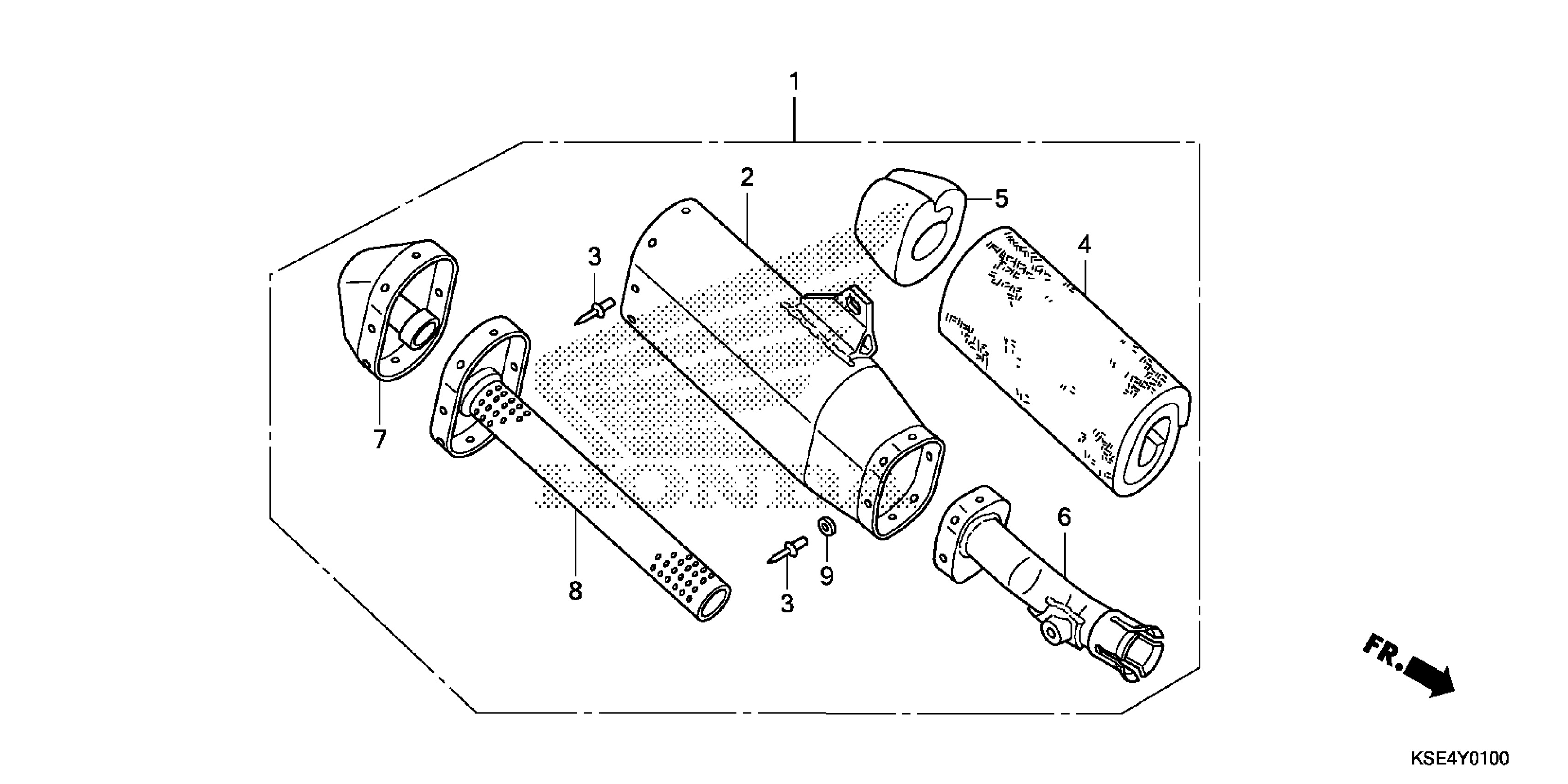

Honda CRF150RA (12) CRF150R, JPN, VIN# JH2KE033-CK300001 MUFFLER (AMA REGULATION) Diagram

#

Description

Price

1

MUFFLER (94DB) (COO) | (Optional).

18310-KSE-306

$1,050.94

2

BODY, MUFFLER (94DB) | (Optional).

18313-KSE-A70

$356.63

3

RIVET, BLIND (4.8) | (Optional).

18324-MEB-670

$0.99

4

PACK A, GLASS WOOL | (Optional).

18336-KSE-E30

$76.15

5

PACK B, GLASS WOOL | (Optional).

18345-KSE-300

$34.94

6

MUFFLER, FR. (COO) | (Optional). This part replaces 18350-KSE-000.

18350-KSE-305

$180.15

6

MUFFLER, FR. (COO) | (Optional).

18350-KSE-305

$180.15

7

MUFFLER, RR. (94DB) (COO) | (Optional).

18351-KSE-306

$164.59

8

MUFFLER, MIDDLE | (Optional).

18352-KSE-E30

$168.88

9

WASHER, PLAIN (5MM) | (Optional).

94101-05000

$0.91
