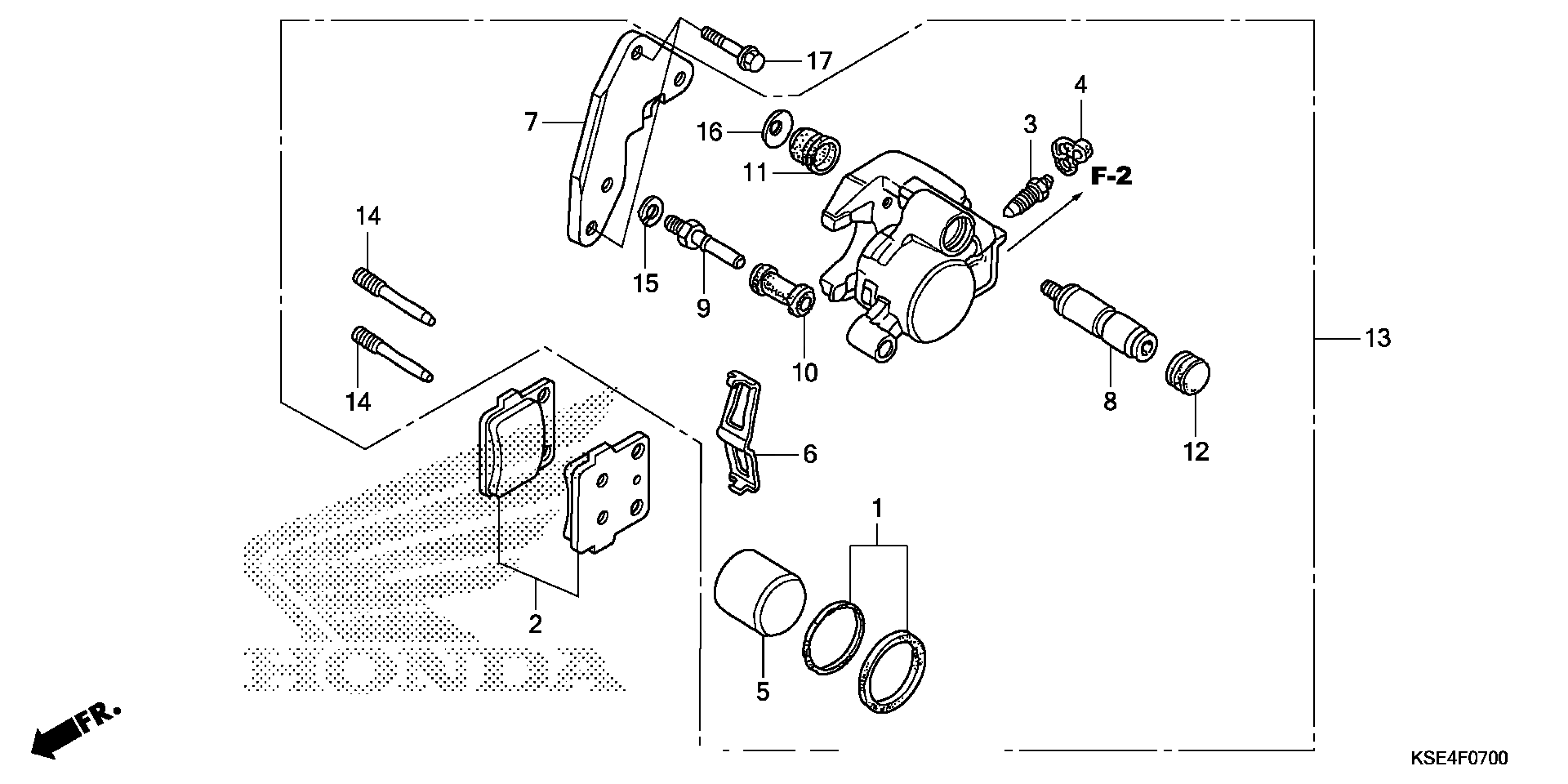

Honda CRF150RA (12) CRF150R, JPN, VIN# JH2KE033-CK300001 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-166-405

$13.04

PAD SET, FR.

06455-KSE-016

$43.98

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-166-006

$27.31

SPRING, PAD

45108-166-006

$7.46

BRACKET, L. FR.

45110-KSE-006

$19.07

PIN, SLIDE

45115-GE3-602

$11.52

BOLT, PIN

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT, PIN

45133-166-016

$3.85

DUST PLUG

45134-GE3-601

$4.48

CALIPER SUB-ASSY., L. FR.

45150-KSE-006

$171.87

PIN, HANGER

45215-GC4-602

$11.50

WASHER, WAVE

45216-166-006

$2.34

WASHER, CONICAL SPRING

45218-166-006

$3.78

BOLT, FLANGE (8X32)

90131-KW6-840

$2.13
