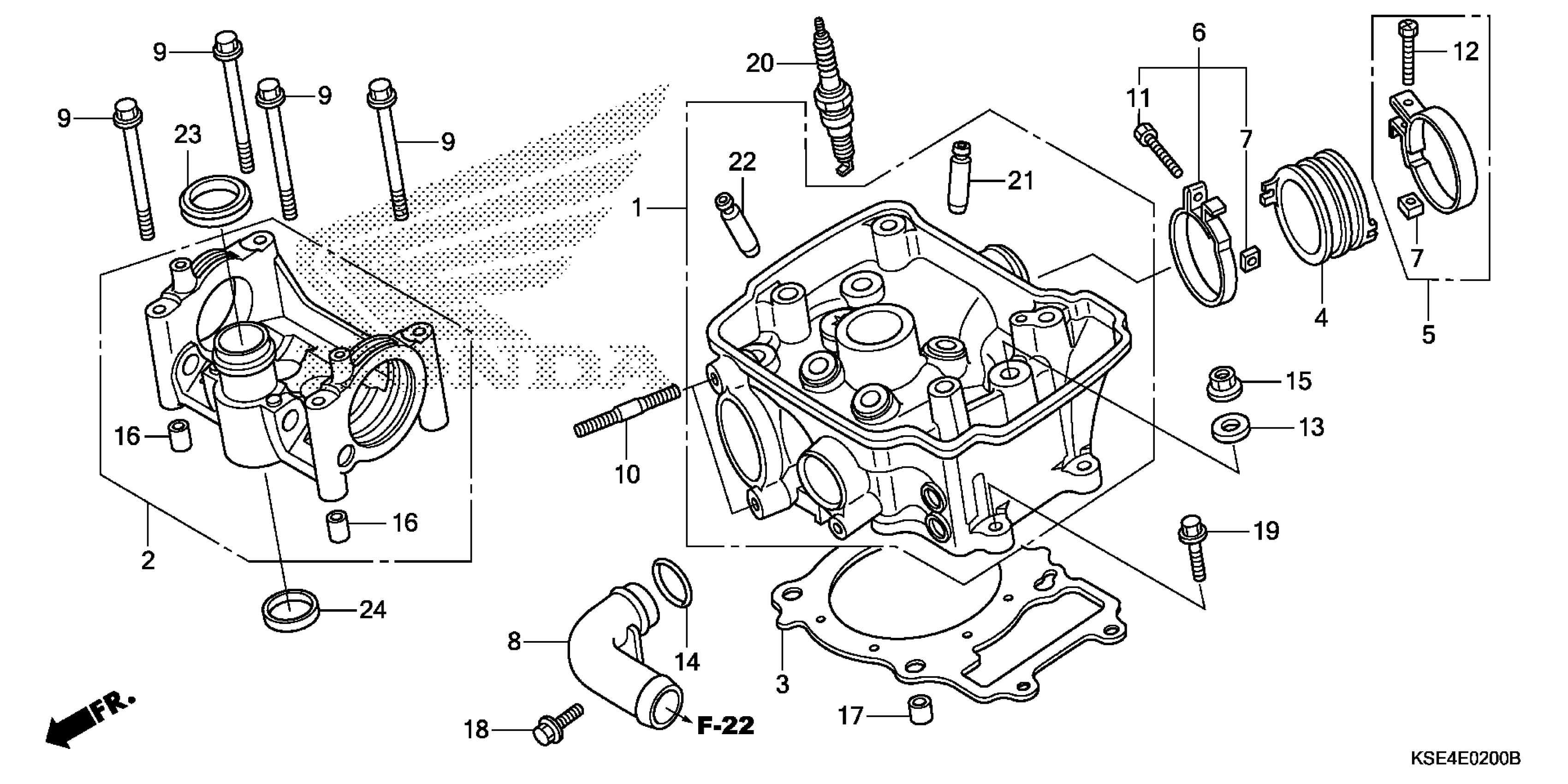

Honda CRF150RA (12) CRF150R, JPN, VIN# JH2KE033-CK300001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-KSE-A70

$416.40

2

HOLDER, CAMSHAFT

12240-KSE-670

$116.10

3

GASKET, CYLINDER HEAD

12251-KSE-671

$18.31

4

INSULATOR, CARBURETOR

16210-KSE-670

$9.76

5

BAND A, INSULATOR

16216-MCZ-000

$3.36

6

BAND B, INSULATOR

16218-MCW-000

$3.16

7

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

8

PIPE, WATER

19523-KSE-670

$22.00

9

BOLT, FLANGE (6X73)

90003-KSE-670

$2.80

10

BOLT, STUD (7X25)

90004-KCW-851

$1.31

11

BOLT, RECESSED (5X32)

90005-MM4-000

$0.99

12

BOLT, RECESSED (5X28)

90023-MM5-000

$2.80

13

WASHER, PLAIN (8MM)

90501-MK4-600

$3.65

14

O-RING (15X2.5)

91301-MY9-003

$2.21

14

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.21

15

NUT, FLANGE (8MM)

90202-KGB-610

$1.03

16

PIN, DOWEL (8X10)

94301-08100

$2.76

17

PIN, DOWEL (10X16)

94301-10160

$2.80

18

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

20

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$7.50

20

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$6.79

20

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

20

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$6.79

20

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

20

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$6.79

20

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79

20

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$6.79

21

GUIDE, VALVE (OVER SIZE)

12204-KSE-P00

$11.39

22

GUIDE, EX. VALVE (OVER SIZE)

12205-KSE-P00

$13.18

23

SEAL, RING

12226-MEB-670

$2.93

24

GASKET, PLUG HOLE

12395-KSE-670

$3.61
