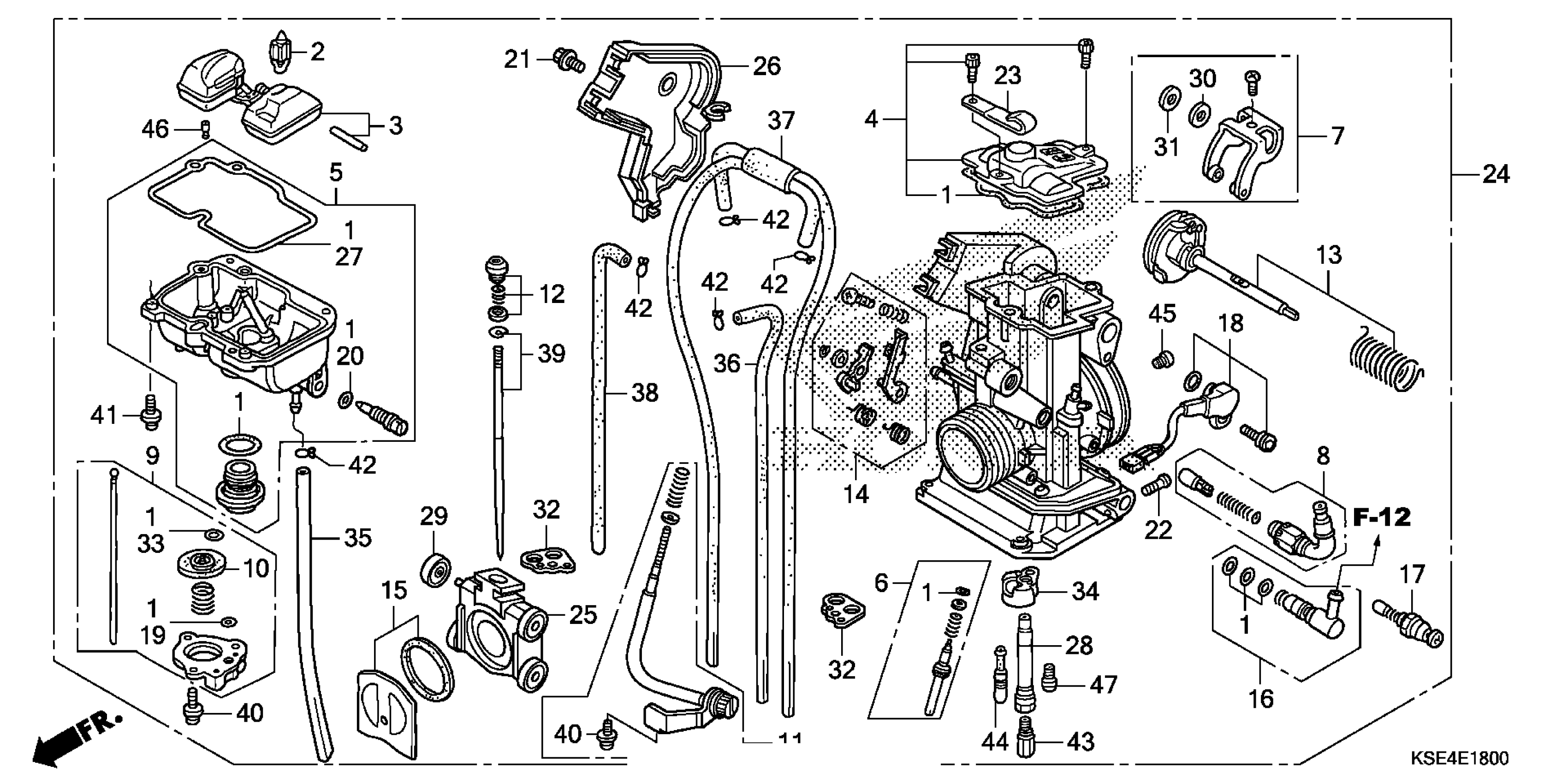

Honda CRF150RA (12) CRF150R, JPN, VIN# JH2KE033-CK300001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-MEN-851

$24.12

2

VALVE SET, FLOAT

16011-KSE-671

$16.46

3

FLOAT SET

16013-MEB-671

$27.80

4

TOP SET

16014-KSE-671

$38.76

5

CHAMBER SET, FLOAT

16015-KSC-A11

$78.07

6

SCREW SET A

16016-KSE-601

$27.08

7

ARM SET, LINK

16018-MEY-A11

$14.74

8

START SET, HOT

16019-MEB-671

$26.89

9

PUMP SET, DIAPHRAGM

16021-KSE-A71

$50.42

11

SCREW SET B

16028-KSE-A71

$36.42

12

SCREW SET, JET NEEDLE

16029-MEY-A11

$11.67

13

SHAFT SET, THROTTLE

16032-KSE-A71

$81.15

14

LEVER SET, PUMP

16033-KSE-A71

$26.32

15

VALVE SET, FLOATING

16037-KSE-671

$129.07

16

JOINT SET, FUEL

16038-MEB-671

$7.57

17

VALVE SET, STARTER

16046-MEB-671

$26.93

18

SENSOR ASSY., THROTTLE

16060-KSE-671

$110.82

20

O-RING (1.3X4.3)

16076-ND5-004

$2.29

21

BOLT, COVER

16080-HP1-601

$3.89

22

SCREW, PAN

16083-MEB-671

$1.40

23

CLIP

16088-MEN-731

$6.94

24

CARBURETOR ASSY. (FCR08D A)

16100-KSE-A72

$1,074.06

25

VALVE, THROTTLE

16112-KSE-601

$227.34

26

COVER, THROTTLE

16157-MEN-A01

$23.15

27

GASKET, FLOAT CHAMBER

16163-MEB-671

$12.07

28

HOLDER, NEEDLE JET

16165-MEY-A11

$12.13

29

ROLLER

16172-MEB-671

$7.13

30

WASHER, PLAIN (PO)

16177-MEB-671

$1.46

31

WASHER, PLAIN (SUS)

16178-MEB-671

$1.29

32

BINDER

16178-MEN-851

$5.02

34

PLATE, BUFFER

16185-MEN-671

$10.35

35

TUBE, OVERFLOW

16196-KSE-E31

$11.22

36

TUBE, AIR VENT

16197-MEB-671

$6.05

37

TUBE, AIR VENT

16198-KSE-671

$10.71

38

TUBE, AIR VENT

16199-MEB-671

$6.05

39

NEEDLE SET, JET (NMQT)

16204-KSE-601

$28.91

40

SCREW-WASHER (4X8)

93892-04008-08

$1.06

40

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.06

41

SCREW-WASHER (4X14)

93892-04014-08

$1.01

41

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.01

42

CLIP, TUBE (B7)

95002-02079

$1.10

43

JET, MAIN (#138)

99101-357-1380

$8.53

43

JET, MAIN (#140)

99101-357-1400

$7.88

44

JET, SLOW (#38) This part replaces 99103-KA3-0380.

99103-KBA-0380

$12.11

44

JET, SLOW (#38)

99103-KBA-0380

$12.11

44

JET, SLOW (#38) This part replaces 99103-440-0380.

99103-KBA-0380

$12.11

46

JET, LEAK (#60) | (Optional).

99108-KSE-0600

$7.71

46

JET, LEAK (#55) | (Optional).

99108-MEB-0550

$8.78

46

JET, LEAK (#70) | (Optional).

99108-KRN-0700

$11.90

46

JET, LEAK (#75) | (Optional).

99108-KRN-0750

$11.84

46

JET, LEAK (#65)

99108-KSC-0650

$7.46

47

JET, BY-STARTER (#68)

99112-KRN-0680

$11.09
