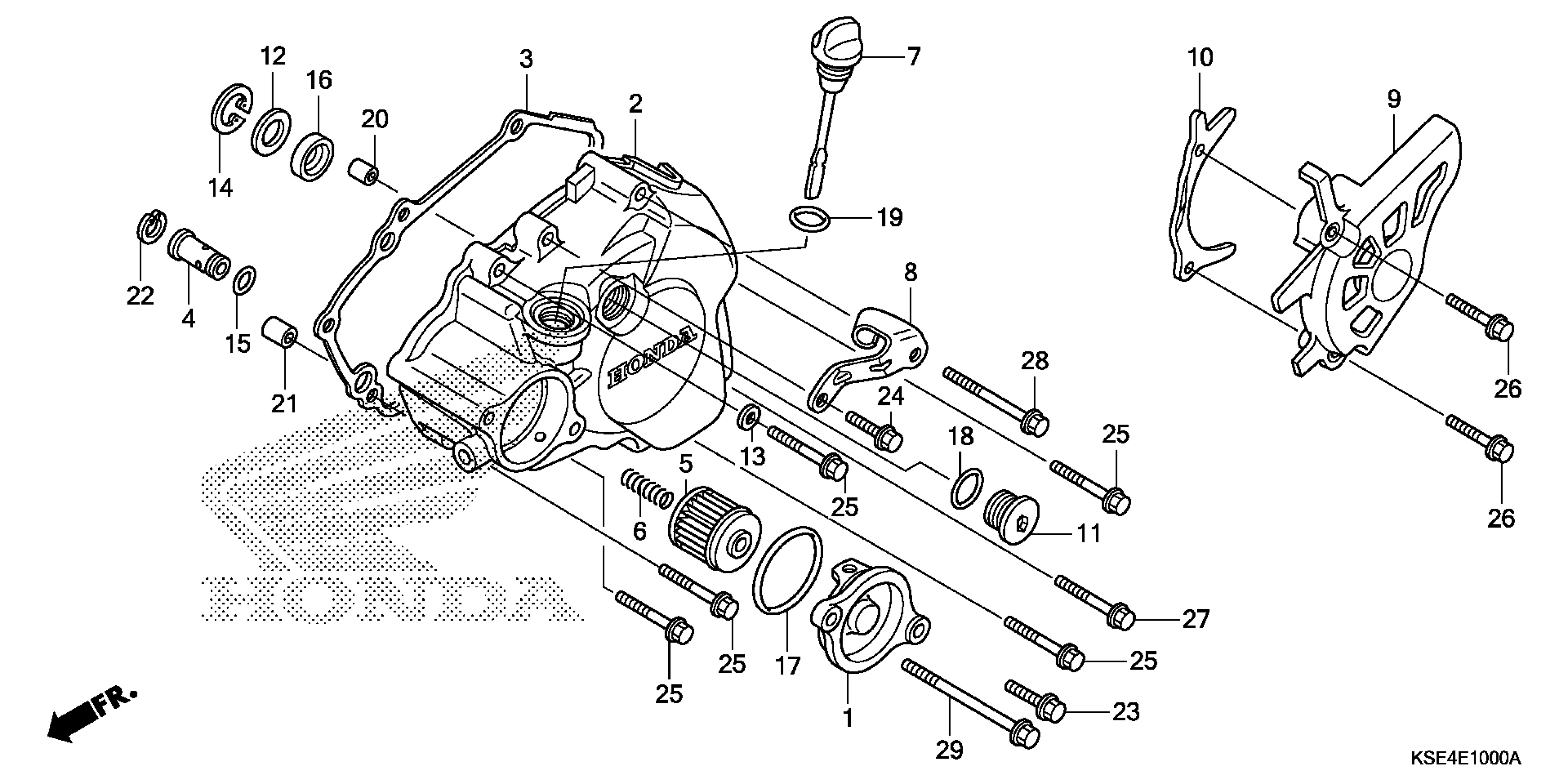

Honda CRF150RA (09) CRF150R, JPN, VIN# JH2KE033-9K200001 TO JH2KE033-9K299999 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, OIL FILTER

11333-KSE-670

$46.30

2

COVER, L. CRANKCASE | Use up to Engine SN 5116514 This part replaces 11340-KSE-670.

11340-KSE-671

$114.72

2

COVER, L. CRANKCASE

11340-KSE-671

$114.72

3

GASKET, L. COVER | Use up to Engine SN 5116514 This part replaces 11395-KSE-670.

11395-KSE-672

$12.93

3

GASKET, L. COVER | Use from Engine SN 5116515 This part replaces 11395-KSE-671.

11395-KSE-672

$12.93

4

VALVE ASSY., RELIEF

15220-MEB-670

$25.21

5

FILTER, ENGINE OIL

15412-MEN-671

$7.74

6

SPRING, OIL FILTER

15414-MEB-670

$2.62

7

DIPSTICK, OIL

15650-KSE-670

$12.41

8

RECEIVER, CLUTCH CABLE

22838-KSE-670

$8.21

9

COVER, DRIVE SPROCKET

23810-KSE-670

$28.11

10

GUIDE, DRIVE CHAIN

23812-KSE-670

$13.89

11

CAP (14MM) This part replaces 90084-HB3-000.

90084-MN8-010

$12.82

11

CAP (14MM)

90084-MN8-010

$12.82

12

WASHER (13X24X1.6)

90401-MEY-670

$1.97

13

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

14

CIRCLIP, SPECIAL INNER (24MM)

90602-MEB-670

$3.08

15

O-RING (8.5X1.7)

90751-GK1-003

$2.70

16

OIL SEAL (10X21X5)

91204-KRN-671

$3.74

17

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

18

O-RING (13.8X2.5)

91303-377-000

$3.42

19

O-RING (18X3)

91307-035-000

$2.92

20

PIN, DOWEL (8X14)

94301-08140

$2.25

21

PIN, DOWEL (10X16)

94301-10160

$2.28

22

CIRCLIP, INNER (14MM)

94520-14000

$1.49

23

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

24

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

25

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

26

BOLT, FLANGE (6X30)

96001-06030-00

$1.49

27

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

28

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

29

BOLT, FLANGE (6X75)

96001-06075-00

$2.23
