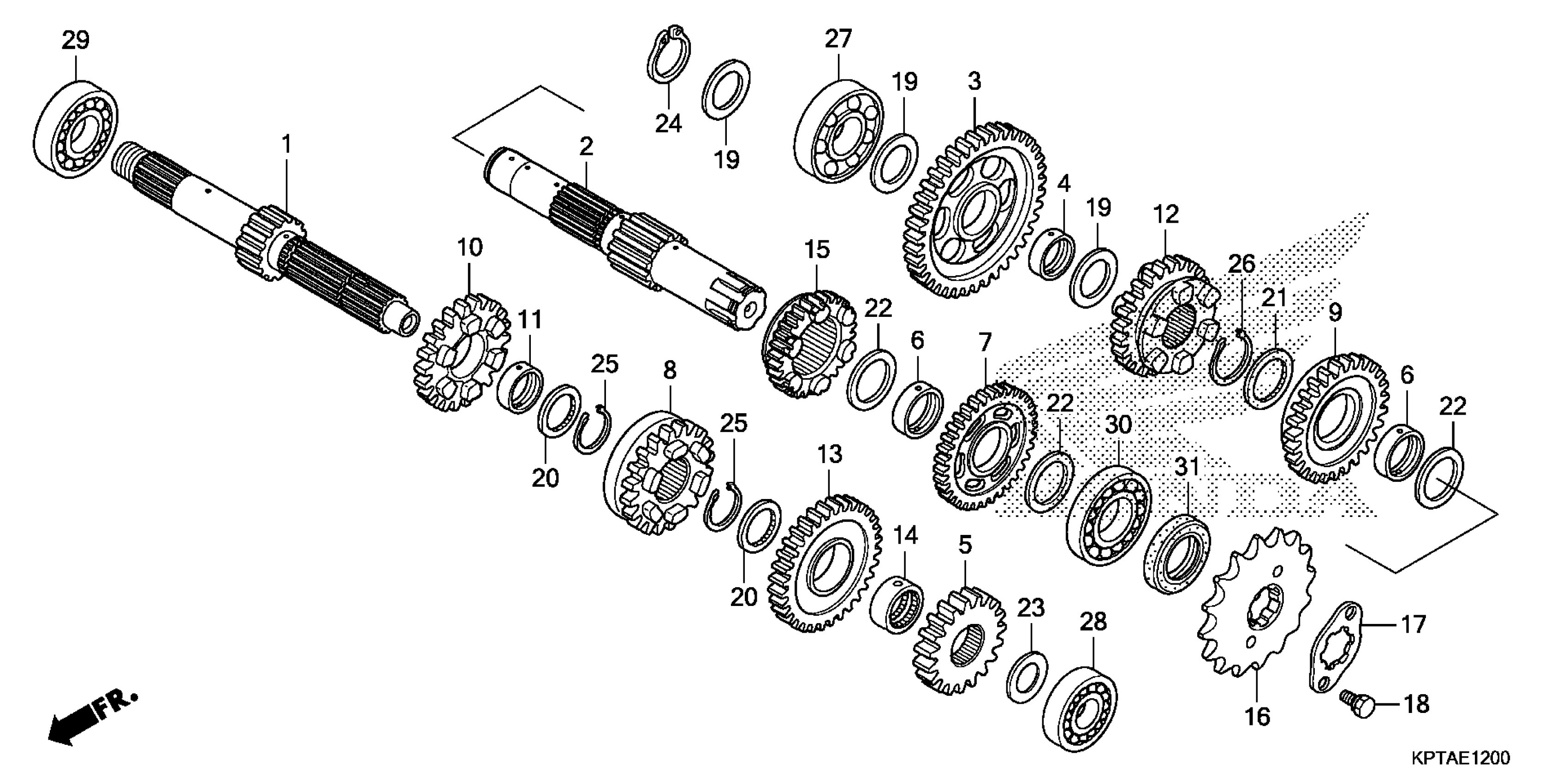

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (14T)

23210-KRM-841

$65.80

COUNTERSHAFT

23220-KPT-A00

$105.66

GEAR, COUNTERSHAFT FIRST (39T)

23421-KRM-840

$31.56

BUSH (17X20.5X8.0)

23427-KRM-840

$10.86

GEAR, MAINSHAFT SECOND (16T)

23431-KPT-A00

$8.28

BUSH (20MM)

23432-KRM-840

$28.74

GEAR, COUNTERSHAFT SECOND (30T)

23441-KPT-A00

$7.43

GEAR, MAINSHAFT THIRD (22T)

23451-KPT-A01

$37.84

GEAR, COUNTERSHAFT THIRD (31T)

23461-KPT-A01

$18.16

GEAR, MAINSHAFT FOURTH (25T)

23471-KPT-A00

$25.23

BUSH (17MM)

23472-KRM-840

$9.92

GEAR, COUNTERSHAFT FOURTH (28T)

23481-KPT-A00

$29.39

GEAR, MAINSHAFT FIFTH (32T)

23491-KRM-870

$40.59

COLLAR, SPLINE (17X20X11)

23492-KRM-840

$12.93

GEAR, COUNTERSHAFT FIFTH (30T)

23501-KRM-842

$21.70

SPRKT,DRIVE 13T This part replaces 23801-KPS-900.

23801-KPS-305

$25.46

PLATE A2, FIXING

23811-KR3-600

$4.57

BOLT, HEX. (6X10)

90011-KPT-A00

$2.77

WASHER, THRUST (17MM)

90452-GB4-770

$1.86

WASHER, SPLINE (17X23X1.6)

90452-KRM-840

$4.25

WASHER, SPLINE (20MM)

90453-KRM-840

$1.49

WASHER B, THRUST (20MM)

90454-KPS-900

$1.49

WASHER, THRUST (12MM)

90456-KRM-840

$1.49

CIRCLIP (OUTER) (17MM)

90602-KRM-840

$1.49

CIRCLIP (17MM)

90603-KSS-900

$1.54

SET-RING (20MM)

90605-KPS-900

$2.33

BEARING, RADIAL BALL (17X42X12) (NSK)

91003-KRM-841

$24.56

BEARING, RADIAL BALL (6201U)

91014-KRM-840

$12.30

BEARING, RADIAL BALL (6201U) This part replaces 91014-KRM-841.

91014-KRM-840

$12.30

BEARING, RADIAL BALL (6203) (C3) (FUJIKOSHI)

91015-KRM-841

$27.00

BEARING, RADIAL BALL (6204)

91016-KPS-900

$22.05

BEARING, RADIAL BALL (6204) This part replaces 91016-KPS-901.

91016-KPS-900

$22.05

OIL SEAL (20X34X7) This part replaces 91216-KRM-841.

91216-KGH-901

$1.89
