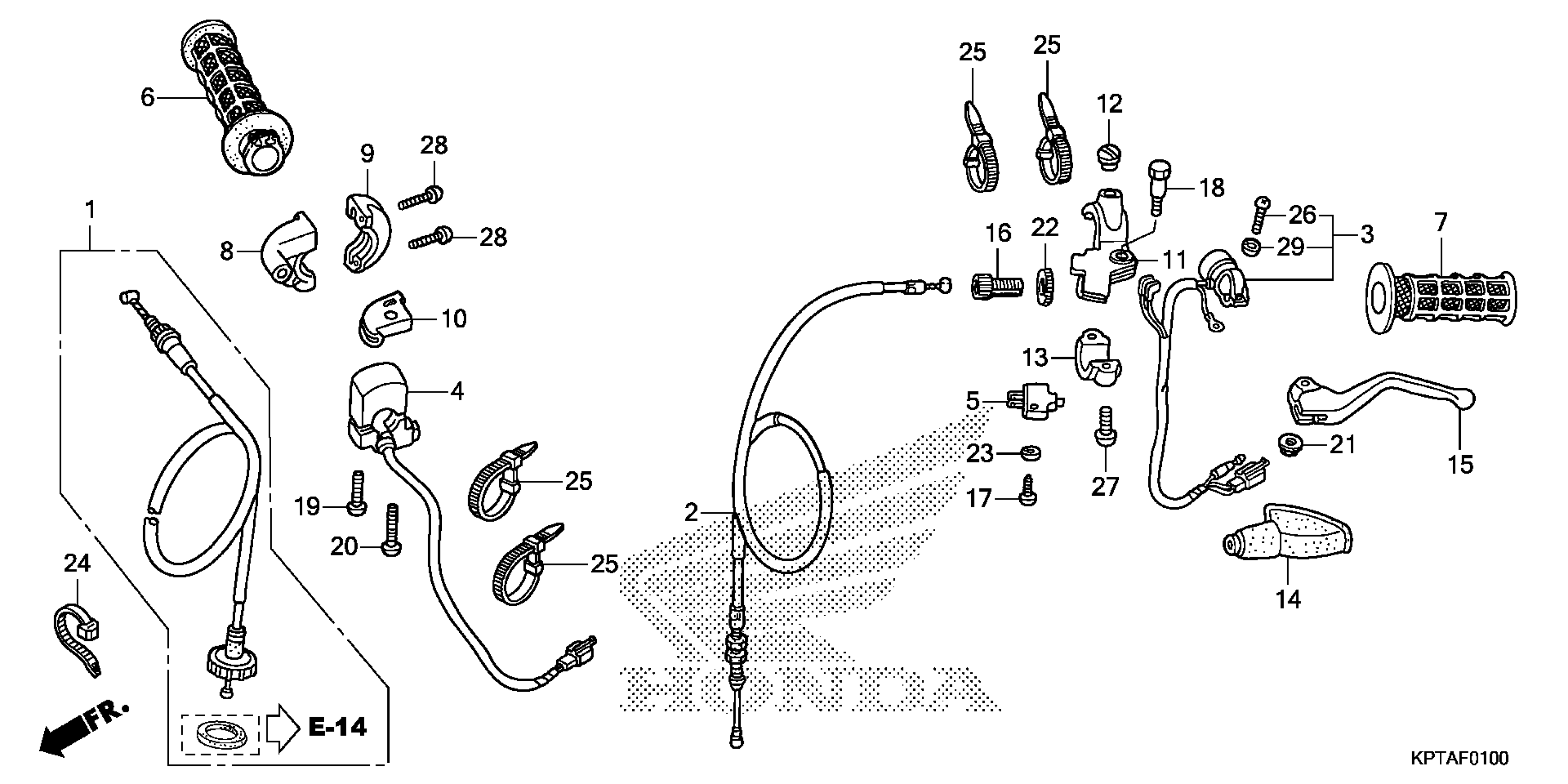

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 SWITCH@CABLE Diagram

CABLE SET, THROTTLE

17920-KPT-305

$43.14

CABLE, CLUTCH

22870-KPT-A00

$27.29

SWITCH ASSY., ENGINE STOP

35130-KPS-901

$28.78

SWITCH ASSY., STARTER

35150-KPS-900

$43.92

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

GRIP ASSY., THROTTLE (COO)

53140-KPT-305

$13.51

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

GRIP, L. HANDLE (COO)

53166-KPT-305

$10.28

HOUSING, THROTTLE (UPPER)

53167-KPT-901

$28.80

HOUSING, THROTTLE (LOWER)

53168-KPT-901

$8.16

SLIDER, THROTTLE

53169-HB7-010

$12.88

BRACKET, L. HANDLE LEVER

53172-KPS-900

$13.49

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

HOLDER, L. LEVER BRACKET

53174-KPS-900

$2.92

COVER, L. HANDLE LEVER

53177-KPS-730

$1.49

LEVER, L. HANDLEBAR (COO)

53178-KPT-305

$10.18

BOLT, WIRE ADJUSTING

53192-KRM-860

$1.90

SCREW, TAPPING (3X12)

93901-32320

$1.49

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.67

SCREW, PAN (4X32)

90120-KPS-900

$1.49

SCREW, PAN (4X45)

90121-KPS-900

$1.93

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FIXING

90321-315-670

$7.31

WASHER, SPRING (3MM)

90520-KPS-900

$1.49

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE

90650-KW3-000

$4.48

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

SCREW, PAN (5X16)

93500-05016-0A

$1.49

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49
